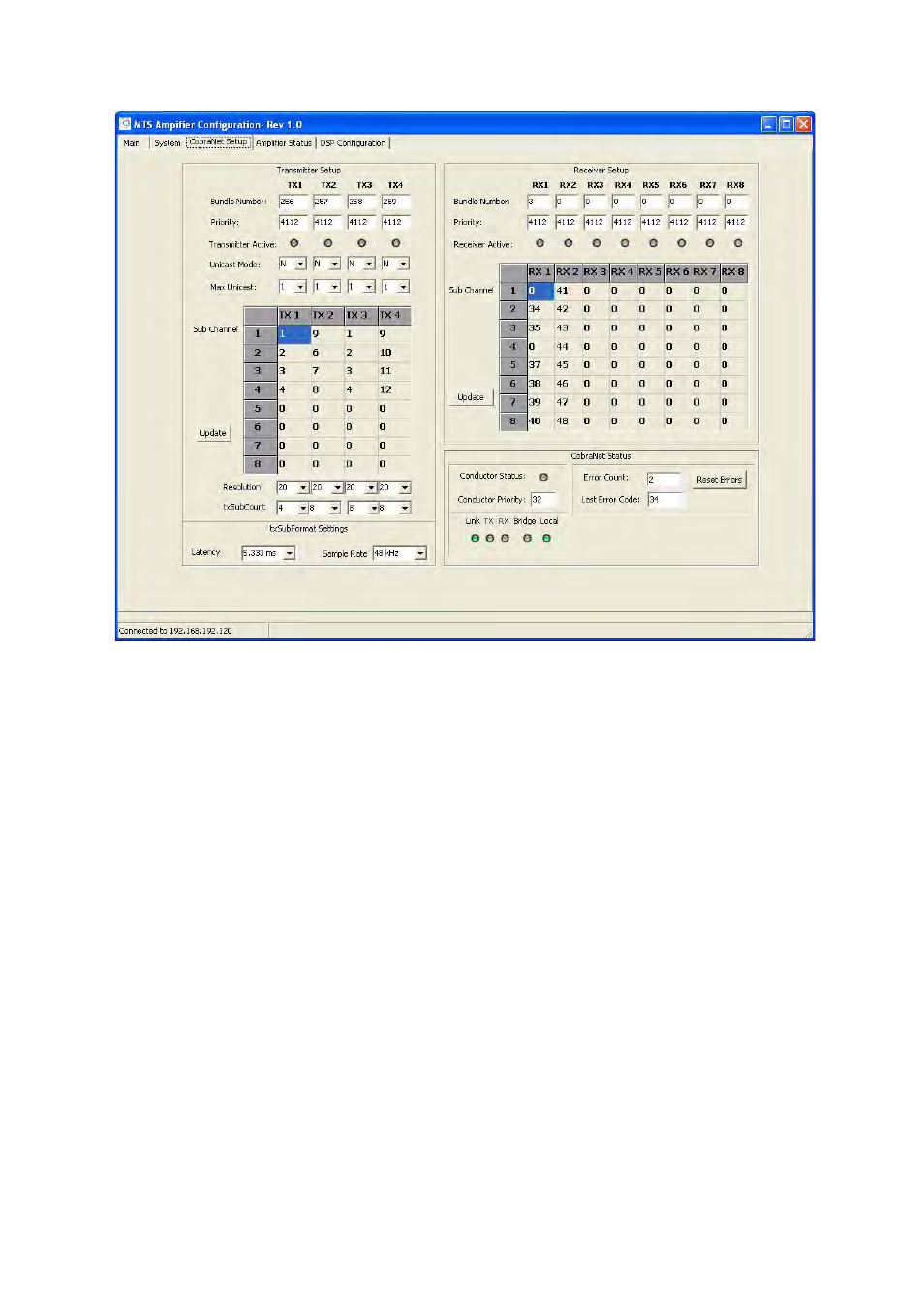

Figure 4-4:
CobraNet™ settings page
•
Receiver setup: This section covers the CobraNet™ receivers. The CS496xxx
chipset
allows
for
up
to
8
receivers,
each
of
up
to
8
channels,
subject
to
an
overall
channel
count
of
16
channels.
The
settings
are:‐
o
Bundle number: Same process and limitations as described in the
transmitter section
o
Priority: Same process and limitations as described in the transmitter
section
o
Receiver
active:
This
LED
only
lights
if
there
is
a
valid
transmitter
sending
audio
on
that
bundle
address.
o
RX1…RX8:
Same
process
and
limitations
as
described
in
the
transmitter
section
•
CobraNet™ status: As follows:‐
o
Conductor status: LED lights up, if the ION is the Conductor.
o
Conductor
priority:
Default
is
32.
Change
the
value
to
increase
or
decrease
the
possibility
of
this
interface
becoming
the
Conductor
o
Error count: Running total of CobraNet™ errors detected.
o
Last error code: The CobraNet™ error code of the last error detected.
o
Status LED’s: Link shows Ethernet link status. Tx and Rx shows data
transfer. Bridge/Local shows serial bridge status.
