O.S. WALKER Co., Inc. SMART-D Control
SMART D MANUAL DD14511L Rev. L, March 30, 2011
5-16

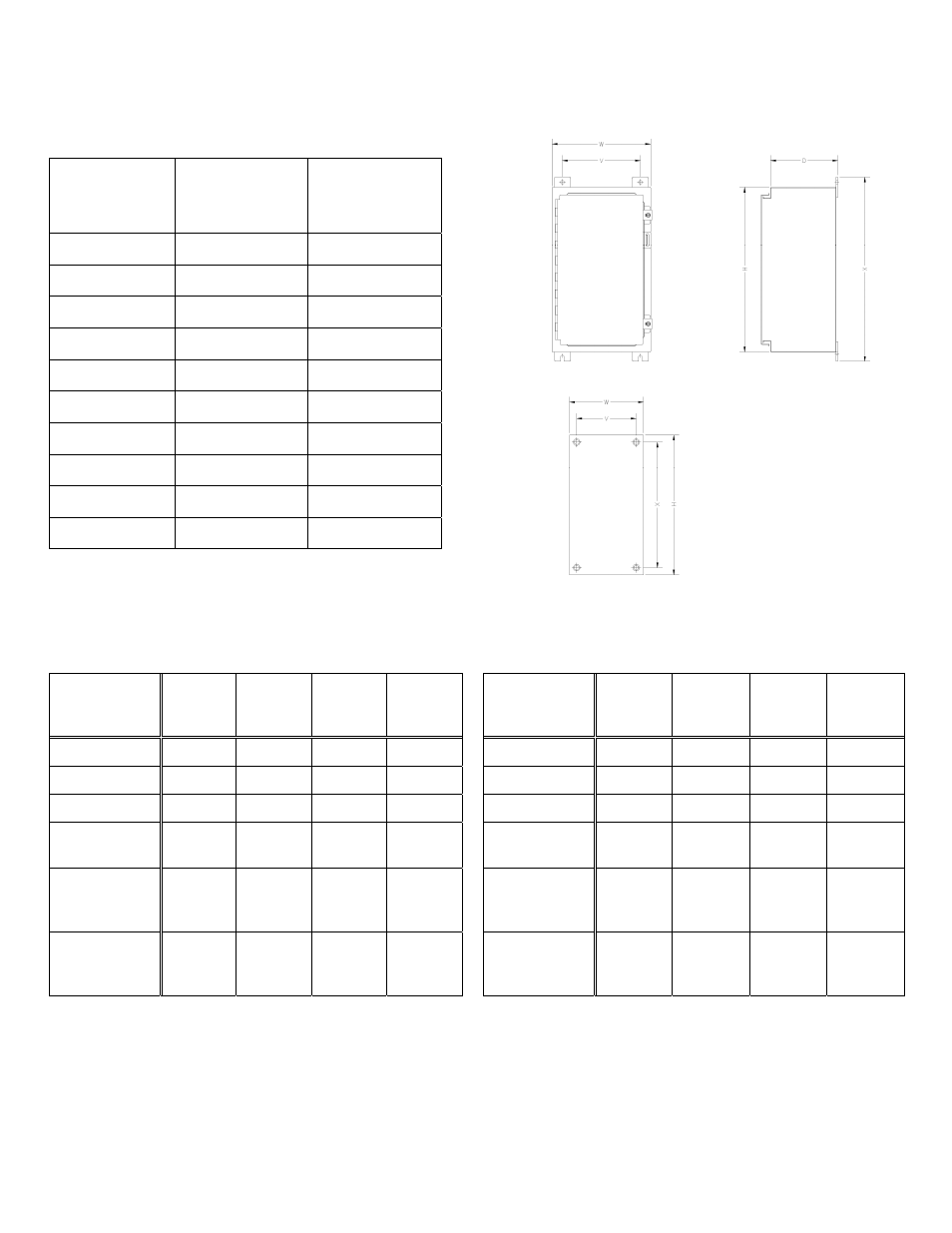

5.2 Enclosure Dimensions for SMART-D Controls
SMART
MODEL #
WATTAGE
CAPACITY
STANDARD
OUTPUT
VOLTAGE
3D 300 115VDC
5D 500 115VDC
7D 750 115/230VDC
10D 1000 115/230VDC
15D 1500 115/230VDC
20D 2000 230VDC
30D 3000 230VDC
50D 5000 230VDC
75D 7500 230VDC
100D 10000 230VDC
ENCLOSURE
DIMENSIONS
MSD3
MSD5
MSD7
MSD10
MSD15
MSD20
MSD30
MSD50
MSD75
MSD100
PANEL
DIMENSIONS
MSD3
MSD5
MSD7
MSD10
MSD15
MSD20
MSD30
MSD50
MSD75
MSD100
WIDTH (W) 12” 20” 24” 24” WIDTH (W) 9” 17” 21” 21”
HEIGHT (H) 20” 30” 30” 30” HEIGHT (H) 17” 27” 27” 27”
DEPTH (D) 8” 10” 12” 12” DEPTH (D) N/A N/A N/A N/A
MTG. HOLE
DIAMETER .44” .44” .44” .44” MTG. HOLE
DIAMETER .41” .41” .41” .41”
MTG. HOLES
HORIZONTAL
SPACING (V)
9.50” 14” 18” 18” MTG. HOLE
HORIZONTAL
SPACING (V)
7.25” 15.25” 19.25” 19.25”
MTG. HOLES
VERTICAL
SPACING (X)
21.25” 31.25” 31.25” 31.25” MTG. HOLES
VERTICAL
SPACING (X)
15.25” 25.25” 25.25” 25.25”
