O.S. WALKER Co., Inc. SMART-D Control
SMART D MANUAL DD14511L Rev. L, March 30, 2011
5-12
5.13 Smart 7/10/15D 115V Wiring
Reference documentation included for schematics.

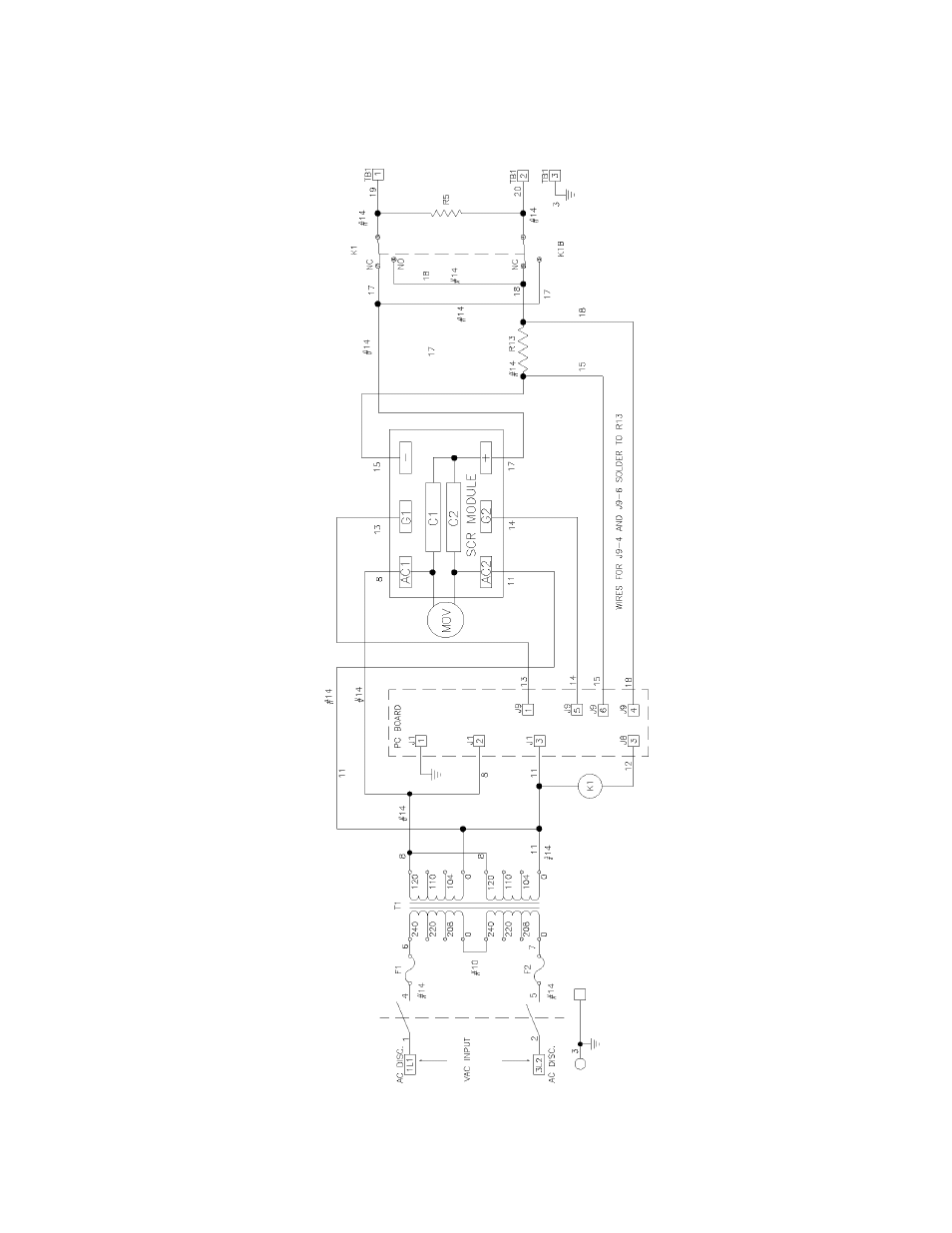

Figure 5-8 Smart 7/10/15D 115V Wiring
