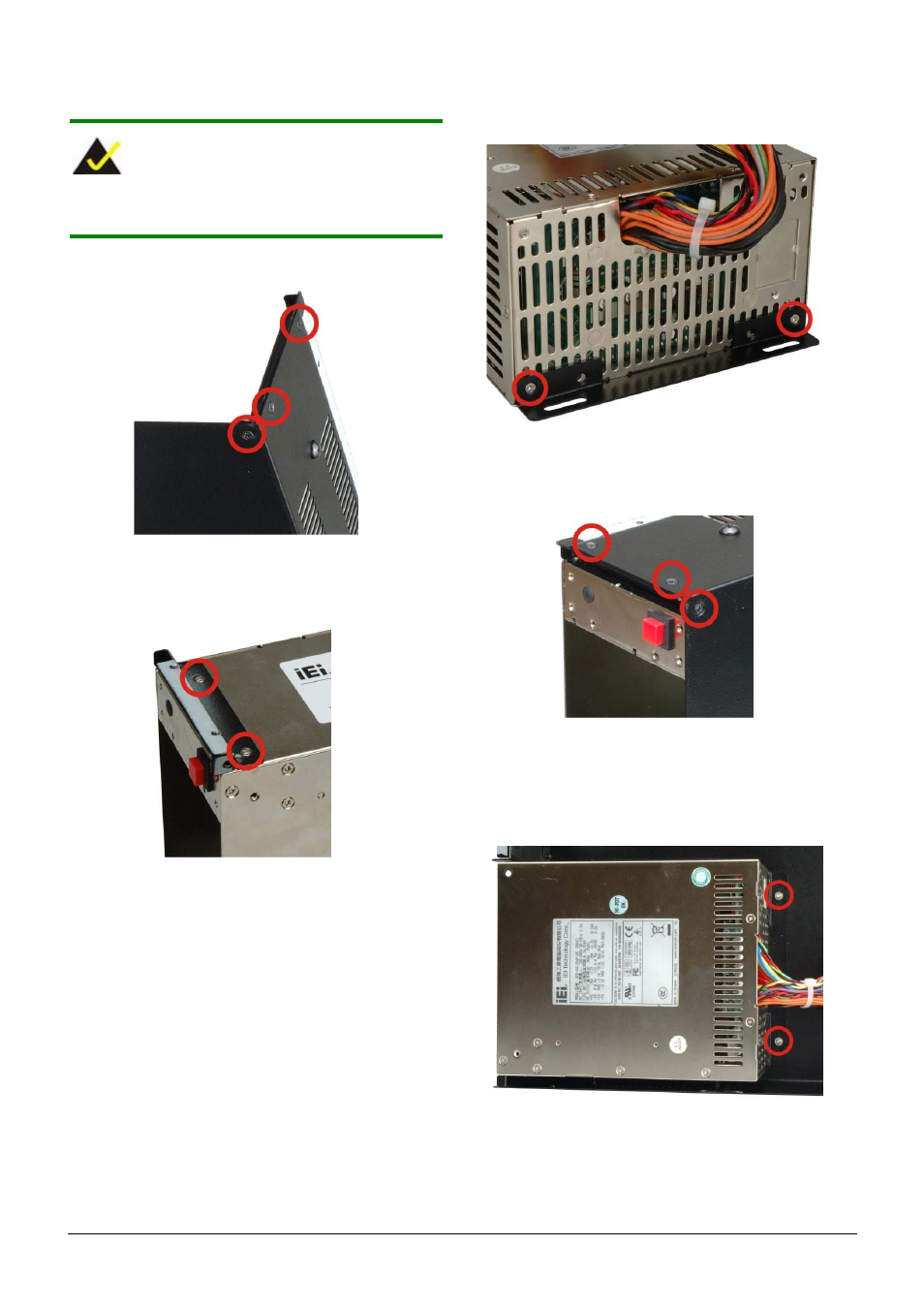

S TEP 4.2: I NSTALL A R EDUNDANT T YPE P OWER S UPPLY
NOTE:
Remove the power modules from the redundant PSU before
installing the PSU into the chassis.
Step 1: Remove the PSU bracket from the chassis by removing
three retention screws.
Figure 8: Remove the PSU Bracket
Step 2: Attach the PSU bracket to a redundant PSU with two
retention screws.
Figure 9: Attach the PSU Bracket to the PSU
Step 3: Find the PSU rear mounting bracket that came with the
chassis and attach it to a redundant PSU with two
retention screws.
Figure 10: Attach the PSU Rear Mounting Bracket
Step 4: Mount the PSU in the chassis and reinsert the three
previously removed retention screws.
Figure 11: Mount the PSU in the Chassis
Step 5: Find the two nuts supplied with the chassis and thread
them onto the chassis’ preinstalled screws that protrude
through the PSU rear mounting bracket until the PSU is
secured to the chassis.
Figure 12: Secure the PSU Rear Bracket
