B136SPK2 ¾" Side Panel Kit
November 1996 69 RS1200001

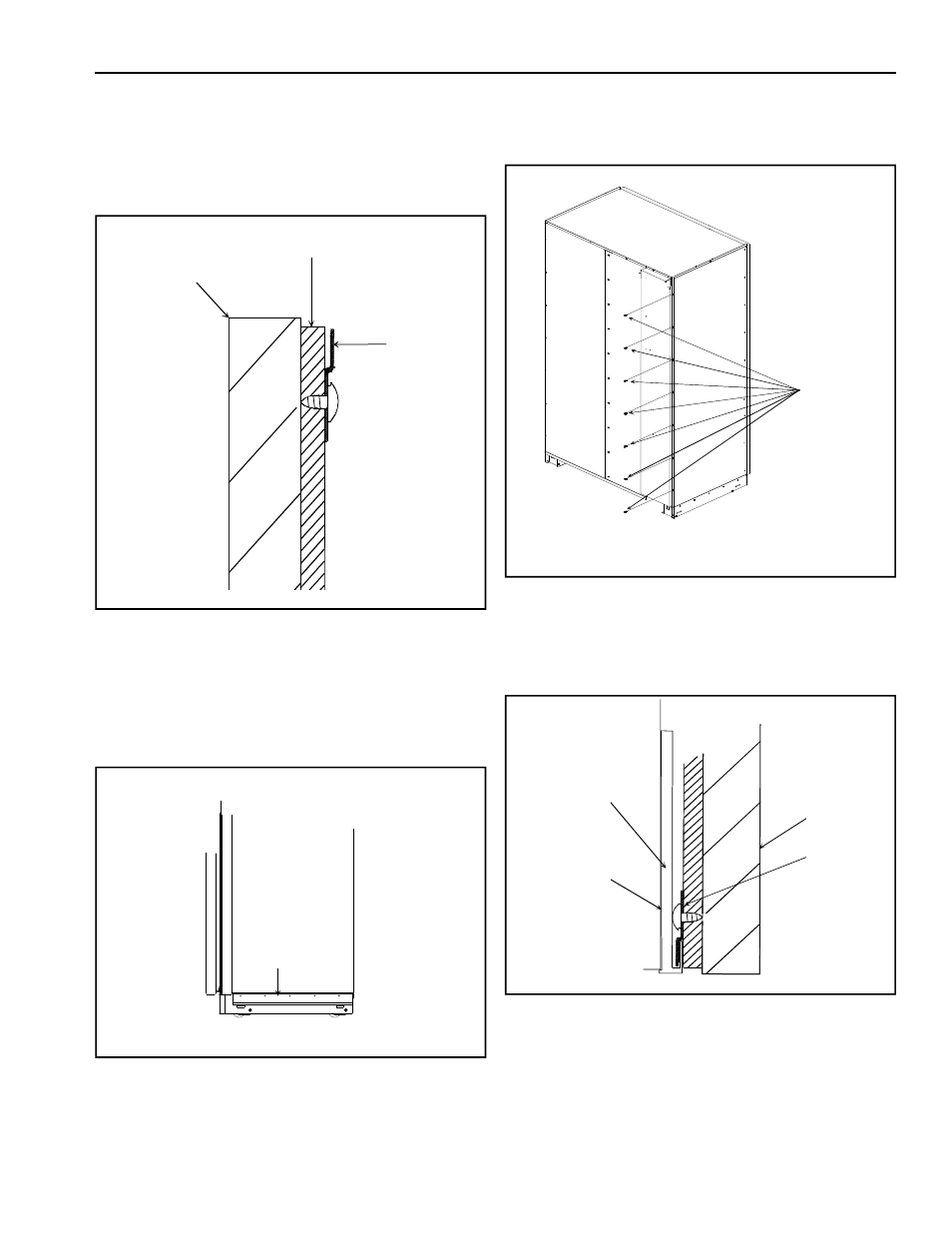

5. Slide panels into place on left and right side of
refrigerator. Verify that panel bracket is resting in
track on bottom cabinet extrusion. For smoother
installation, apply bar soap to cabinet extrusions
and panel brackets.
Bottom cabinet
extrusion
Panel
Panel
bracket
Side of
refrigerator
1. Mount left and right panel brackets to wood panel
using 3/16" phillips screws provided.
• If base panel is not 1/4" thick, use plastic shims
provided with kit to bring base panel depth up to
1/4".
3/4" raised
overlay panel
2. Mount bottom panel brackets using 5, 3/16" phillips
screws.
• If base panel is not 1/4" thick use plastic shims
provided with kit to bring base panel depth up to
1/4".
3. Mount bottom cabinet extrusion using 5, 1/4" flat
head phillips screws.
Panel
bracket
1/4" filler
panel
Bottom cabinet
extrusion
4. While facing back of refrigerator, remove 7 screws
from right edge of refrigerator cabinet.
Remove
screws
Procedure
