B136SPK1 ¼" Facia Front Enclosure Kit
RS1200001 62 November 1996

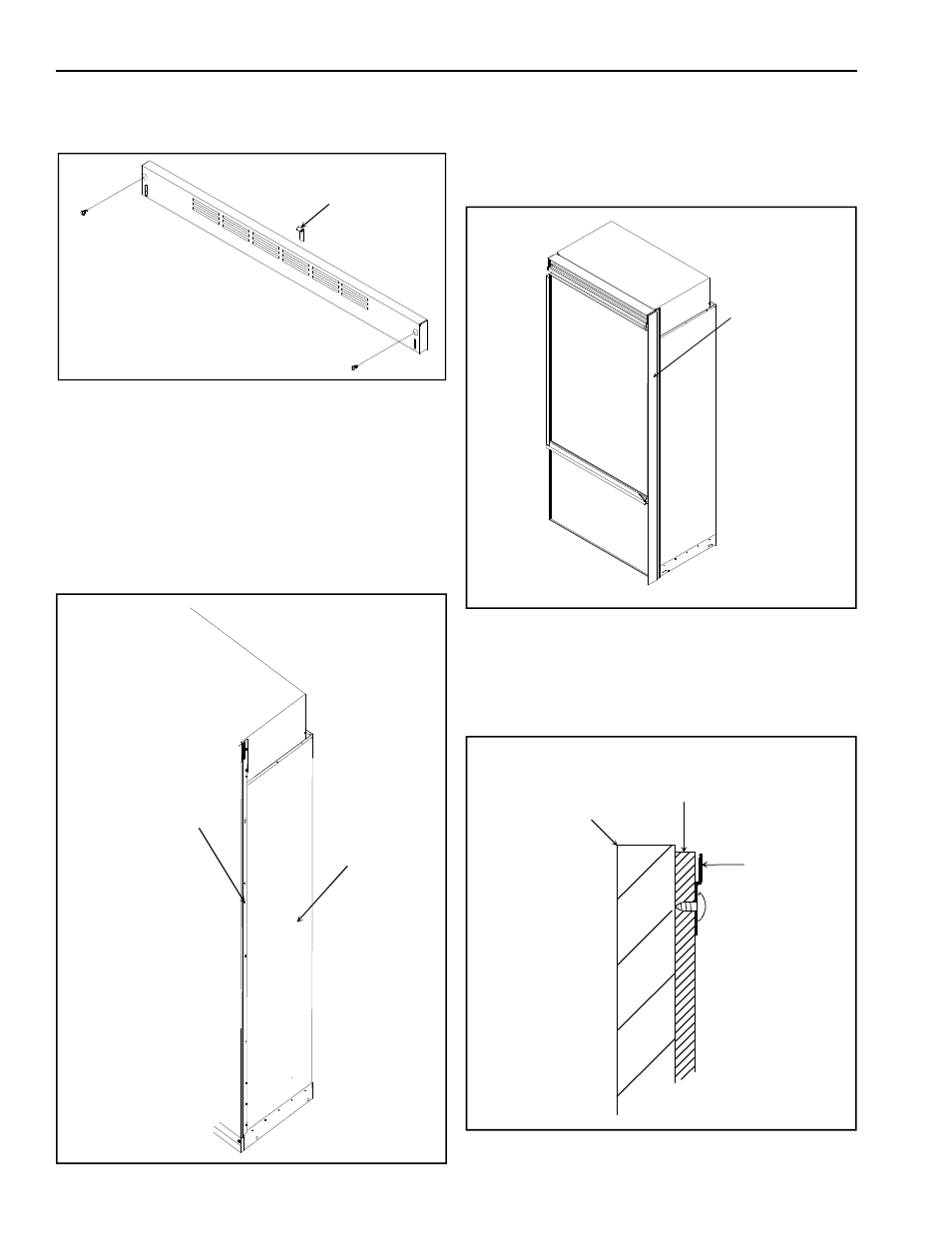

1. Remove toe grille from front of refrigerator by
removing 2 screws and pulling forward.
2. Remove drain pan clip from old toe grille and snap
onto toe grille provided. Install toe grille by
attaching to cabinet in same holes as previous toe
grille, with 2 truss head 1/4" sheet metal screws.
• New toe grille will not be as wide as original toe
grille to allow installation of new side extrusion.
3. Remove front side extrusion and white spacer strip
by removing 11 screws on both left and right sides.
Retain white spacer strip located on machine
compartment side.
Clip
Procedures
5. Mount left and right panel brackets to wood panel
using 3/16" phillips screws provided.
• If base panel is not 1/4" thick use plastic shims
provided with kit to bring base panel depth up to
1/4".
Front
side extrusion
1/4" Filler
panel
Panel
bracket
3/4" Raised
overlay panel
(Optional)
4. Install new front side extrusion provided with kit
using screws removed in step 3. Replace white
spacer strip along machine compartment side.
• If cabinet opening is less then 84 1/4" high, side
extrusion needs to be trimmed to desired height.
Side of
refrigerator
Side
extrusion
