AXLE AND WHEEL INSTALLATION
• Insert axle (Fig. 8-A) into left and right axle bores Fig. 8-B) at rear underside of
the MUTT
®
.
• Slide 1 spacer (Fig. 8-C) onto each side of the axle (Fig. 8-A).
• Install 1 wheel (Fig. 8-D) onto each side of the axle (Fig. 8-A) with valve stem facing
away from the MUTT
®
.
• Insert 1 E-Clip (Fig. 8/9-E) into the groove (Fig. 9-F) in the axle end in front of the
wheel to each side.
• Check tire pressure. It must not exceed 8PSI.

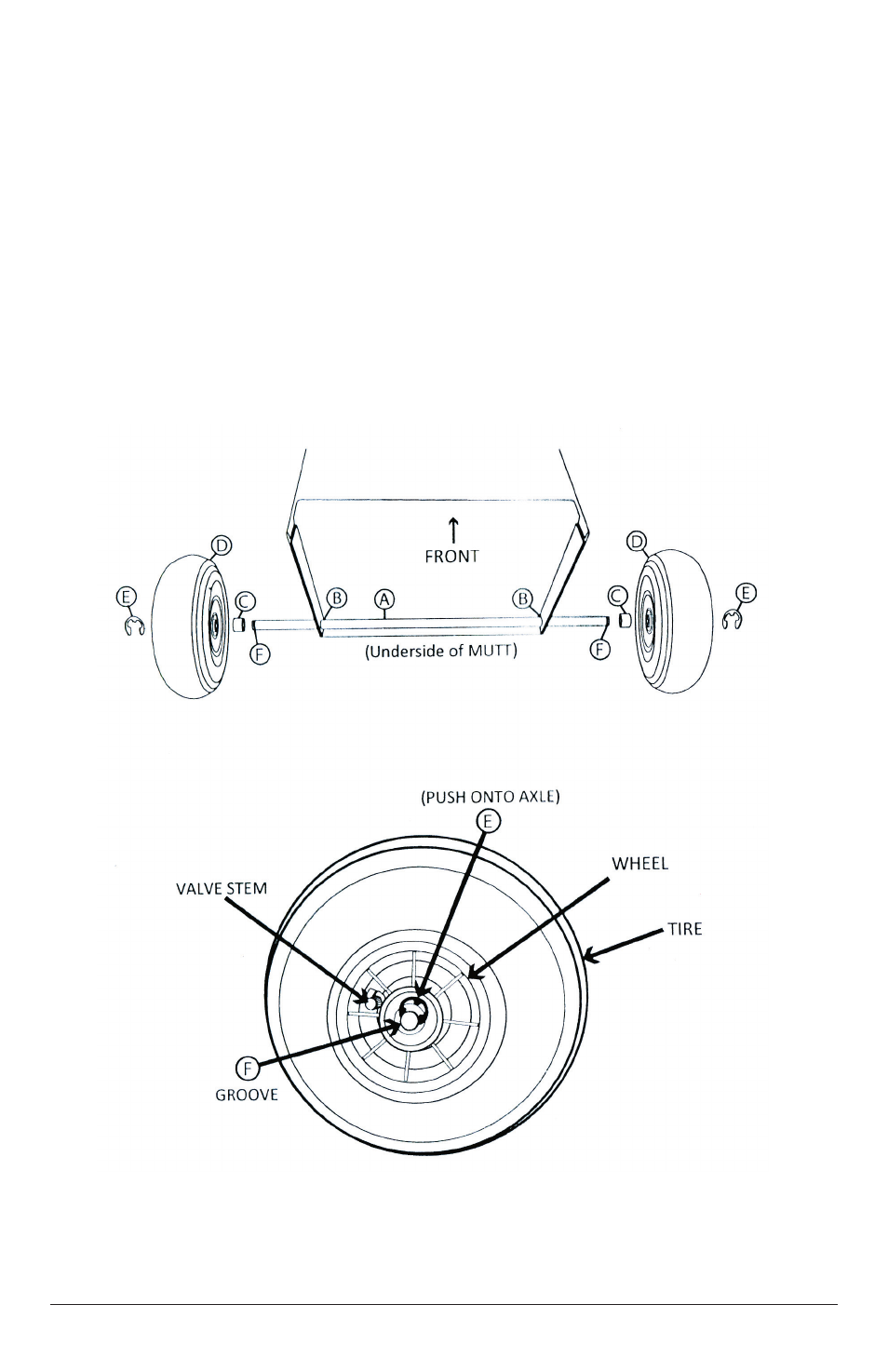

Fig. 8 - Axle and Wheel
Installation
NOTE: Install the Foot at the bottom of the unit with 45° angle side towards the
back of the unit
Fig. 9 - E-Clip Installation
