29
Chapter 3
3.3 Analog Input Connections
The differential input channels operate with two signal wires for each
channel, and the voltage difference between both signal wires is mea-
sured. There are 8 analog input channels available on USB-4718

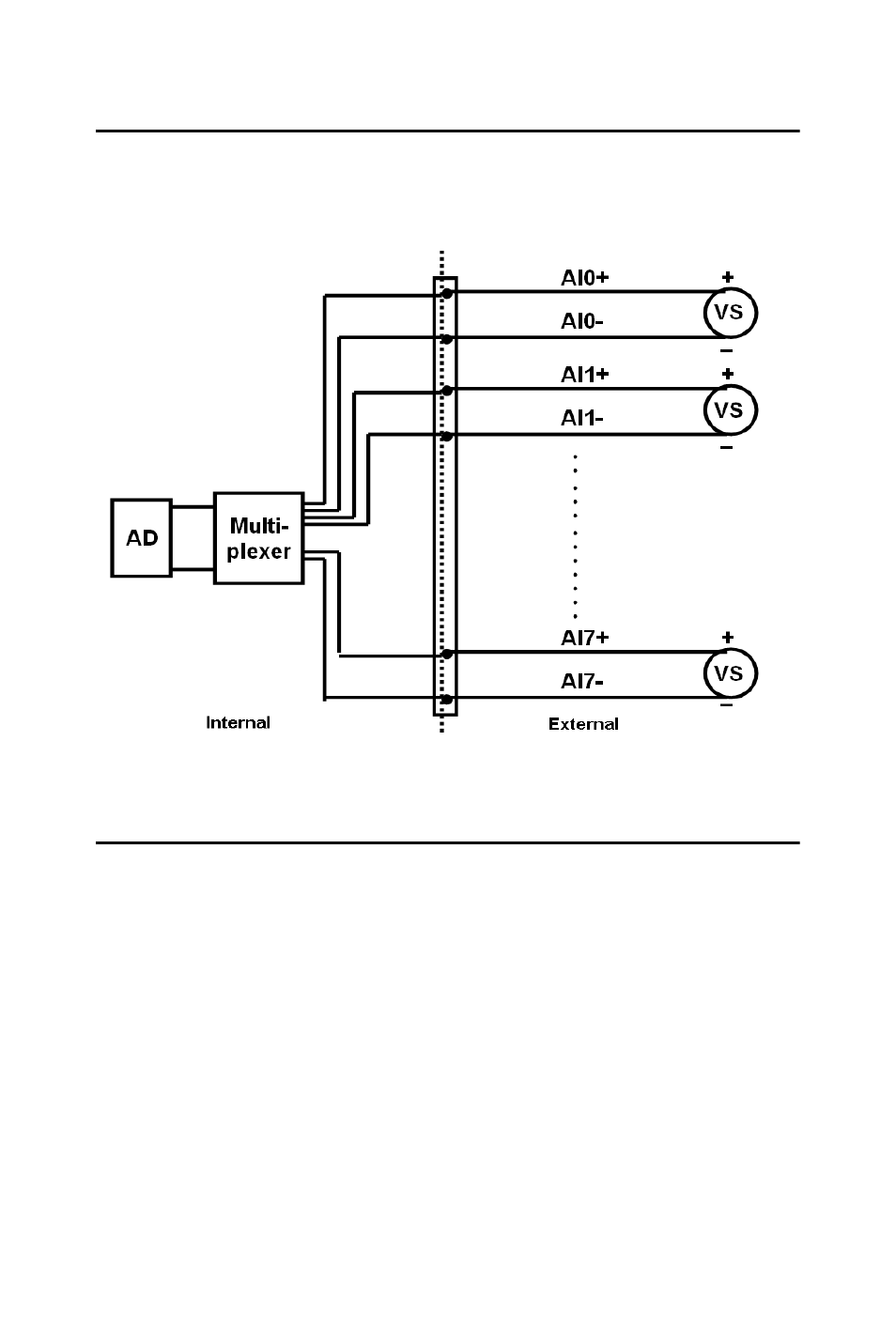

Figure 3.2: Differential Input Channel Connection
3.4 Isolated Digital Input Connections
USB-4718 has 8 isolated digital input channels designated IDI0~IDI7.
Each of isolated digital input channel accepts 5~30 VDC voltage inputs,
and accept bi-directional input. It means that you can apply positive or
negative voltage to an isolated input pin (IDI). All 8 input channels share
one common pin. Figure 3-3 shows how to connect an external input
source to one of the module’s isolated input channels
