Chapter 2

2.4.1 Setting Up the Device

Step 1: To complete the device setup and configuration procedures, you
must first install the device along with its driver. (Please refer to the pre-
vious section of Chapter 2 for detailed installation instructions).
Step2: You can view the device(s) already installed on your system (if
any) in the Installed Devices list box. If you haven’t installed any devices,
you might see a blank list.

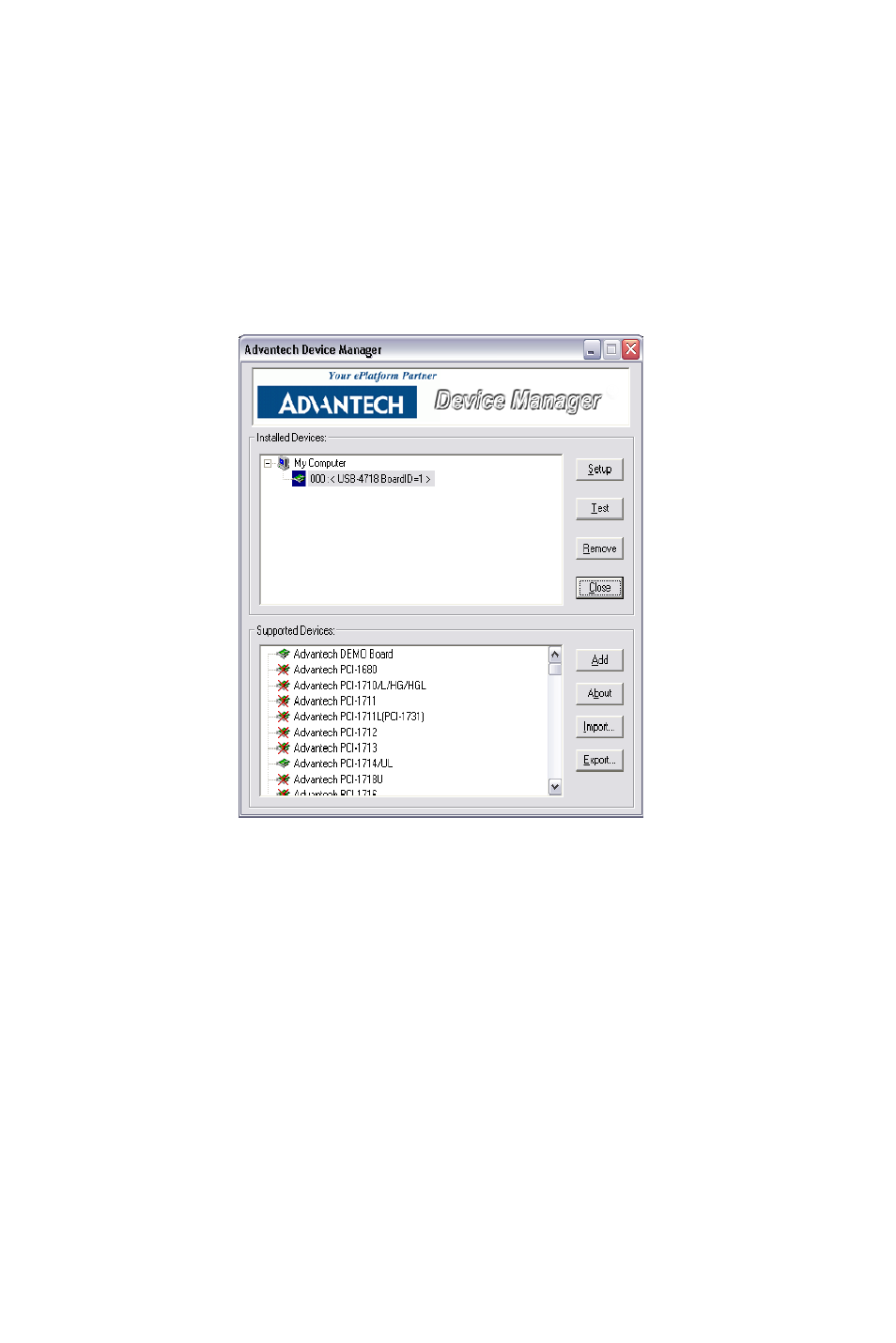

Figure 2.4: Device Manager Dialog Box

2.4.2 Configuring the Device

Step 3: Click “Setup” button and you will see the “Device Setting “dialog
box as follow. On the Device Setting dialog box, you can specify the
BoardID of the device and perform the AI calibration function for the AI
channels. "Locate" will blink the on-module LED till you release the bot-
tom so you can easily identify the device you are operating.

Note:

If you have properly installed the device driver but still
can’t find it in Advantech Device Manager, please
close the Advantech Device Manager and restart it.
