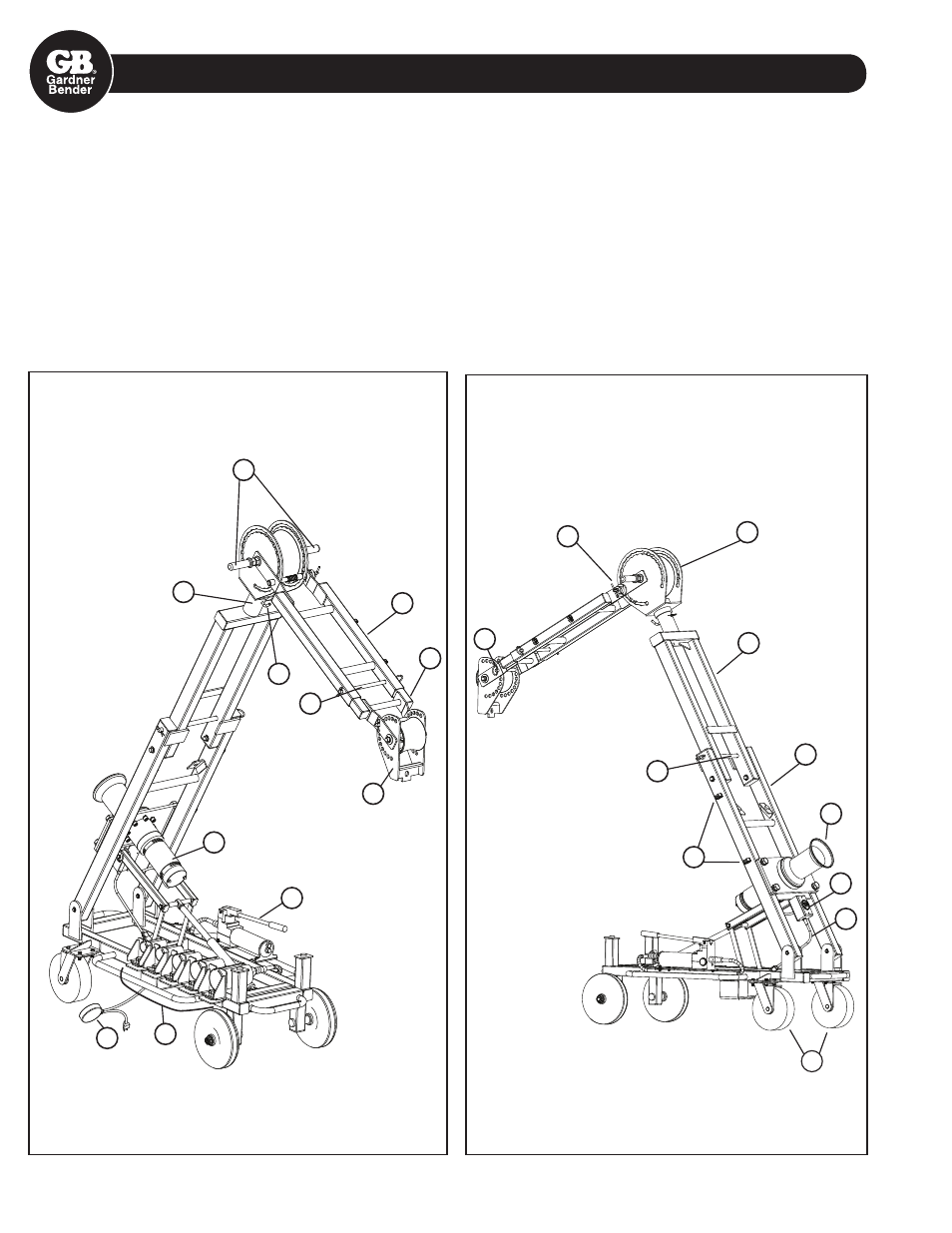

7.0 PARTS IDENTIFICATION
1. Steering Handles
2. Caster Wheels & Brakes
3. Hydraulic Pump
4. Main Boom
5. Boom-A
6. Boom-B
7. Boom-A Lock Pin
8. Pulley-A Housing
9. Boom-B Lock Pin
10. Boom-B Extension
11. Boom-B Extension
Lock Pin
12. Pulley-B Housing
13. Pulley-B Housing
Lock Pin
14. Pull Orientation Pivot
15. Pull Orientation Pin
16. Conduit Adaptors
17. Power Cord
18. Footswitch
19. Pull Meter & Switch Box
20. Capstan
21. Motor
22. Pin Clips
1
8
6
10
12
15
14
21
3
18
16
9
11
13
5
4
20
19
17
2
22
7
