Page 3
3
CAUTION
1. Inspect machine to be free of all rust, dirt and grit.
2. Eye protection, hard hats and all personal safety equipment needs to be worn.
3. Power Cord must be plugged into Footswitch.
4. Do not allow rope to rub anywhere other than pulley rollers and Capstan.
5. Do not wear loose fitting clothes.
FAILURE TO OBSERVE THESE CAUTIONS MAY RESULT IN SEVERE INJURY OR DEATH
CAUTION
1. Inspect pulling rope. Do not use if damaged.
2. Do not allow rope to rub anywhere other than pulley rollers and Capstan.
3. Do not exceed capacity of Motor force. Observe Pull Meter for reference.
FAILURE TO OBSERVE THESE CAUTIONS MAY RESULT IN DAMAGING MACHINE MOTOR OR SEVERE INJURY
Total Amps:
0-5.0
5.1-7.0
7.1-12.0
12.1-16.0
16.1-20.0
Length (ft.) Wire Gauge Wire Gauge Wire Gauge Wire Gauge Wire Gauge
25
18
18
16
14
12
50
18
16
14
12
10
75
18
14
12
10
8
100
18
12
10
8
8
150
16
12
8
8
6
200
16
10
8
6
4
SAFE
SAFE
DANGER

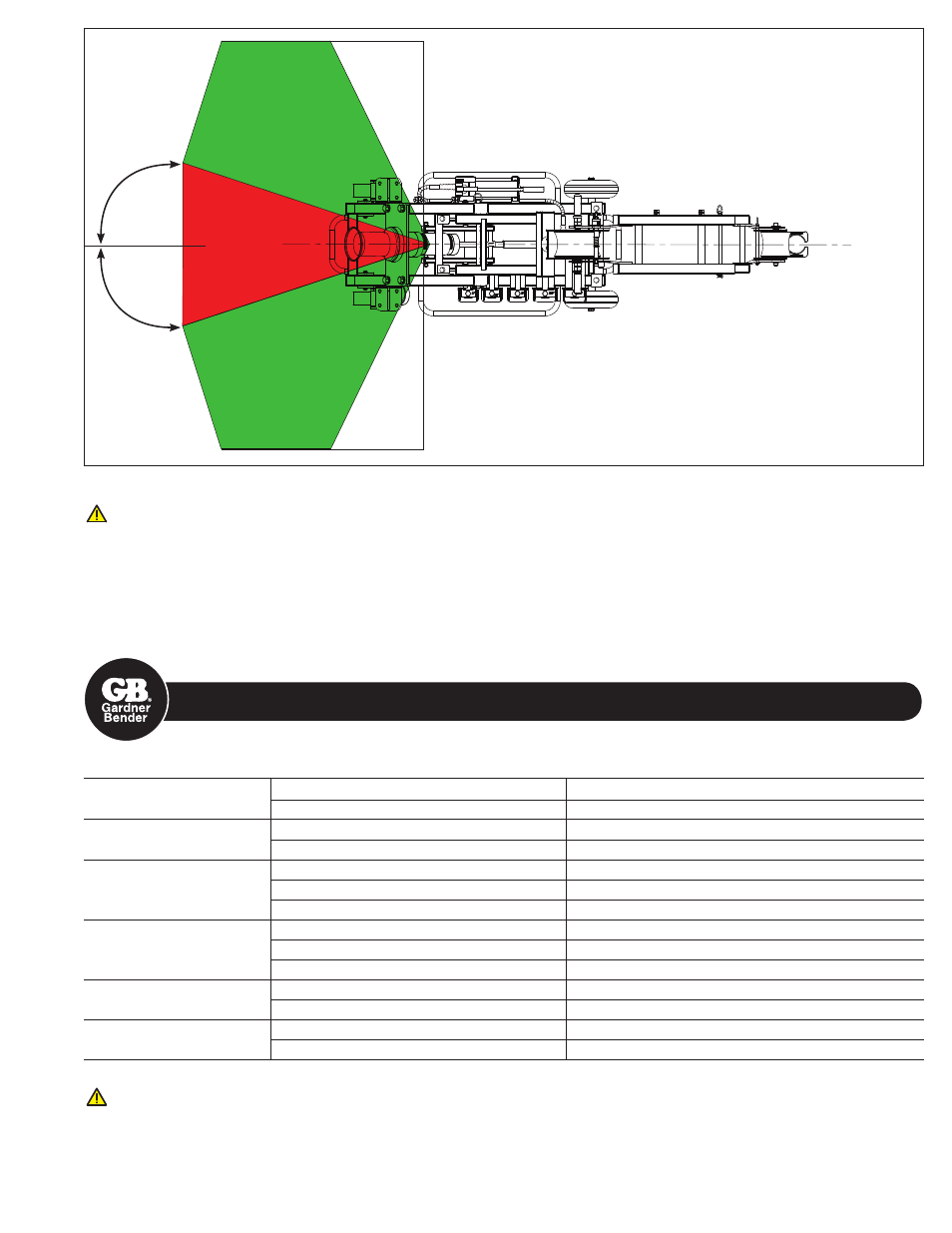

Figure 1. Stand in Safe Zone
Table 2. Puller Specifications
Weight
Shipping Weight
455 lbs.
Product Weight
385 lbs.
Shipping Dimensions
Pallet
66" wide x 36" deep
Overall Height (includes pallet):
44"
Product Dimensions
Wheel Span
28"
Length
61"
Height
39"
Motor
Volts
115 VDC
Current
14 amps
Type
1-phase
Pulling Force
Max Capacity (Intermittent Duty)
10,000 lbs.
Continuous
8,000 lbs.
Rope
Green & Yellow Zone on Pull Meter
3/4" double braided polyester rope
Red Zone on Pull Meter
7/8" double braided polyester rope
6.0 PULLER SPECIFICATIONS
Looking Down from Above
30°
30°
