6
5. Assign IP address to PC
PC must have a unique IP address before it can communicate with an Audia
device.

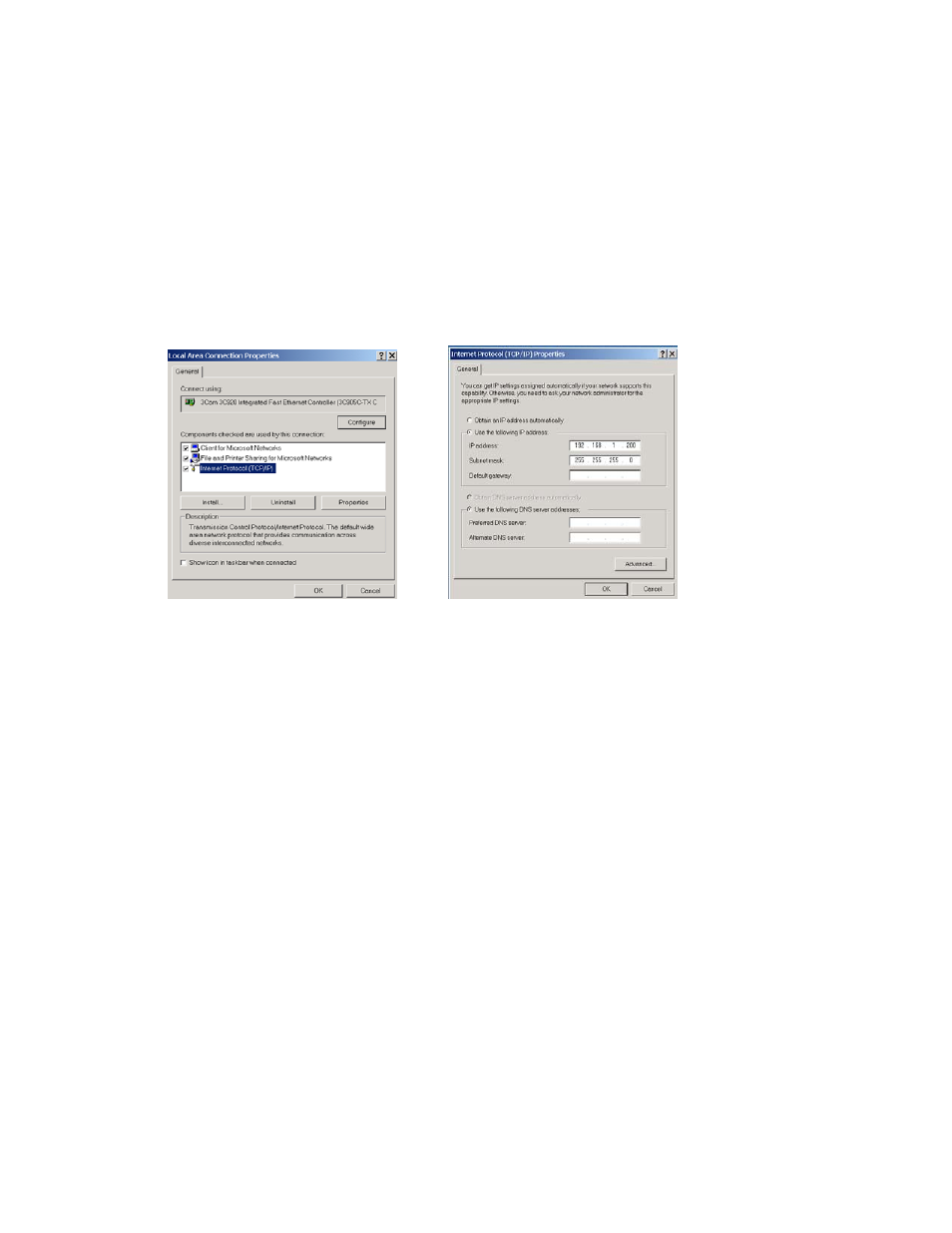

Right Click My Network>Properties>Local Area Connection>Right Click
Properties>TCP/IP>Properties
IP address should be 192.168.1.x (x=1-254)
Subnet mask should be 255.255.255.0
Click Ok when complete
Close My Network
6. Connect PC to network
Attach a “straight-through” Ethernet cable from PC 10/100baseT network card to
a 10/100baseT Ethernet switch. “Straight-through” Ethernet cables connect
transmit pins directly to receive pins (pin 1 to pin 1, pin 2 to pin2, pin 3 to pin3,
etc.). You can easily determine if an Ethernet cable is “straight-through” by
looking at the conductors on the RJ-45 connectors. If the wiring is identical on
both ends, it is a “straight through”
Ethernet cable.
7. Connect Audia device to network
Connect one Audia device to network using “straight through” Ethernet cable
attached from the rear panel Ethernet jack to the 10/100baseT Ethernet switch.
