Connecting to standalone unit using Audia without CobraNet (AudiaSOLO)

1. Install Audia software on a Windows

XP/7 Professional PC

PC must have a 10/100baseT NIC.

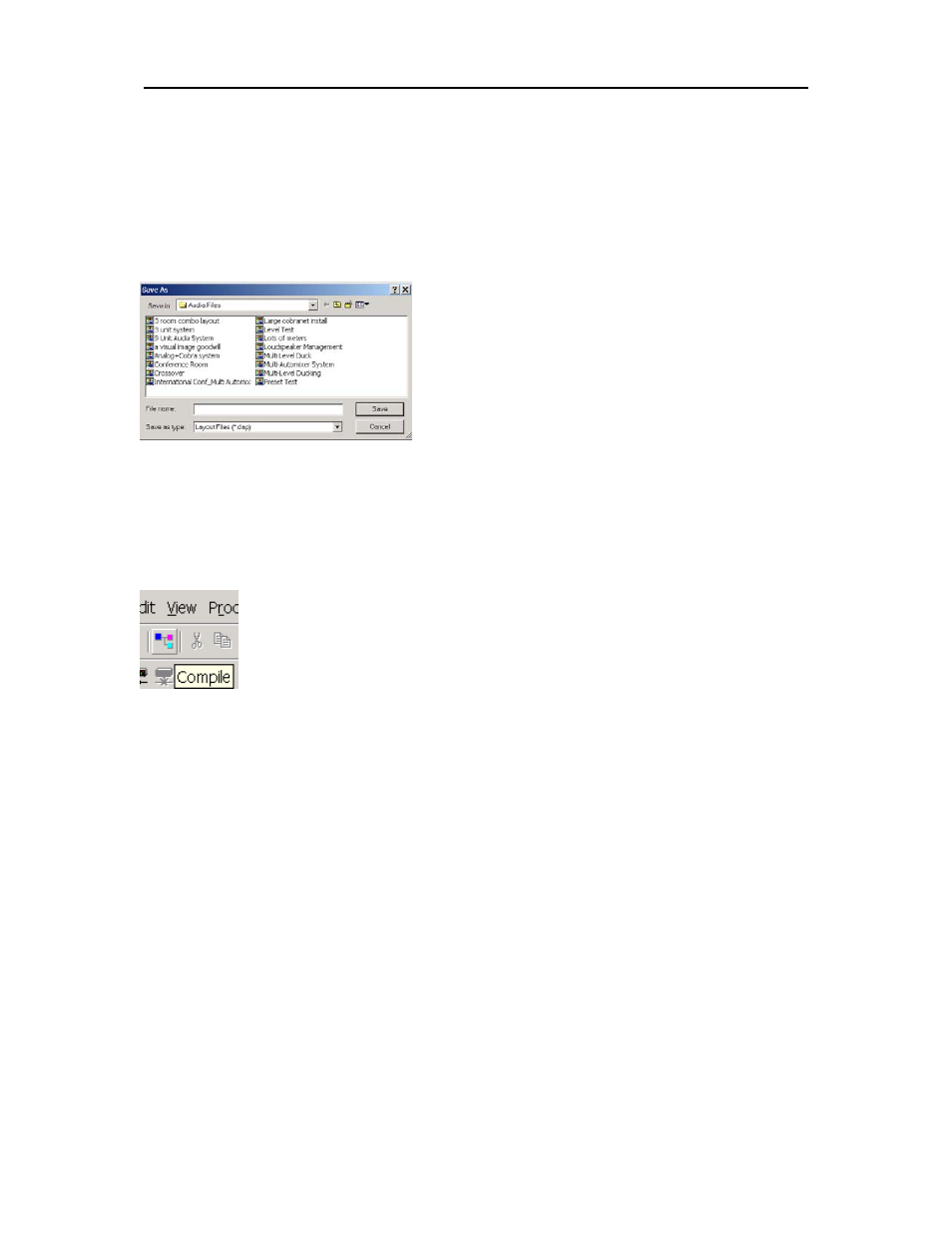

2. Design and Layout system

Launch Audia software. Layout signal flow and DSP as desired. Save layout file
(.dap).

3. Compile Layout

Compile will display type of Audia device required as well as DSP power used.
If compilation cannot find a solution, user intervention may be necessary. Check for
feedback loops, appropriate I/O, appropriate number of units (only 1 unit possible in
standalone system).

4. Power Up

Connect supplied power cord to a grounded AC mains voltage of 100-240VAC
@50/60Hz. Connect other end of power cord to power entrance located on the rear
of Audia unit. Note status of front panel LED’s. Under normal conditions, all LED’s
will remain green once power-up sequence has completed.
