Chapter 2. Camera Installation
2-1.
Ceiling Mount installation

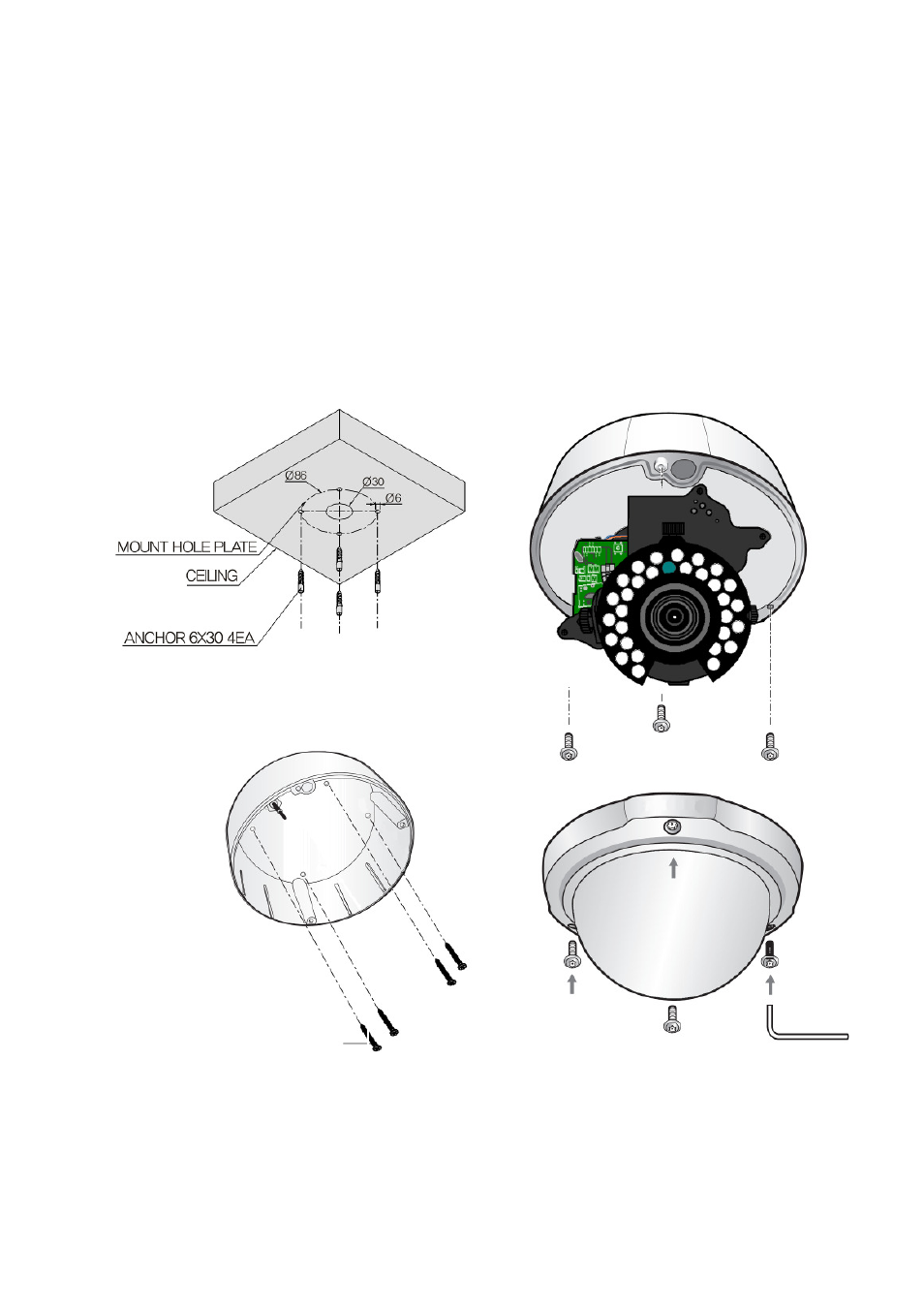

Fix the camera on the ceiling
1)
Paste the Mount hole sticker on the position that you want to install.
2)
Use the mount hole sticker to make a hole of 30mm in diameter for passing cable, and drill
another 4 holes on the ceiling to fix bracket camera body.
3)
Connect power & LAN cables, and then arrange these cables through the hole of ceiling.
4)
Insert the anchors and fix the screws through the housing.
3 x27 Tp1 BND SUS SCREW
