I-View Digi-4800XP 16 channels Hybrid Embedded DVR User Manual
Page 21

21
Press F3 button to control the main monitor 1 and spot Monitor 1 display.
Press F4 button to control the Single TV Out (17-32)
2. When you press the Enter, then F2 button that the control will become to “ 4 MUX “ mode.
You can control Main monitor 0, Main monitor 1, Spot Monitor 0 and Spot Monitor 1
separately. The control button as below:
Press F1 button to control the main monitor 0 display.
Press F2 button to control the spot monitor 0 display.
Press F3 button to control the main monitor 1 display.
Press F4 button to control the spot monitor 1 display.
For example:
1.
If you want to view the camera 22 of single TV out on TV; click “ Enter “ button, then
Press “ F4 “ button and then entry “ 6 “ number key, you will watch the camera 22 single
video on TV.
2.
If you want to view the 4 split video (Camera 1-4) of Spot Monitor 1 on TV; click
“ Enter “ button, then Press “ F1 “ button and then entry “ 4 split way“ button, you will
watch the camera 4 split video on TV.

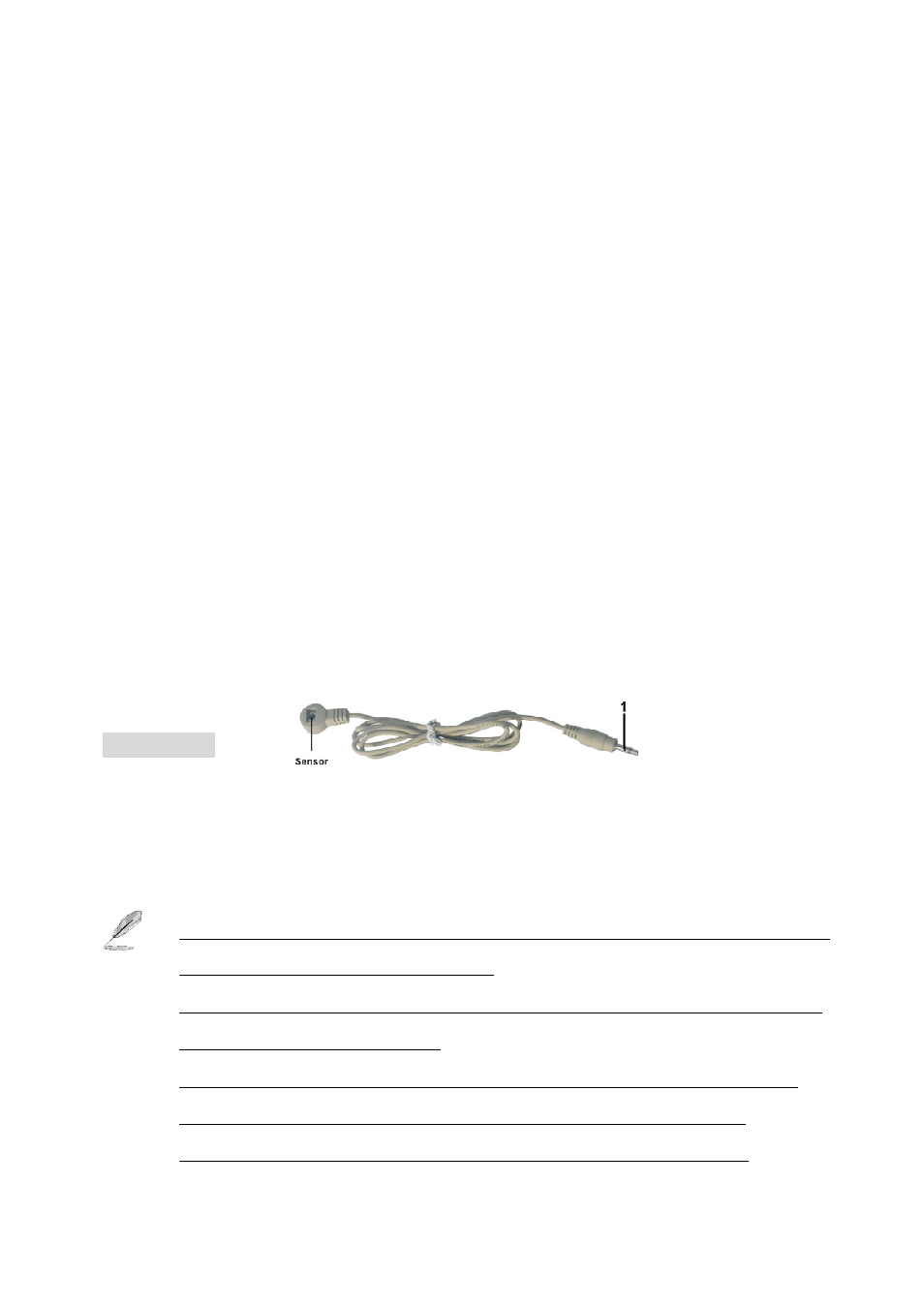

Sensor cable
To install the sensor, simply plug the end of the sensor device (“1” connector) into the Sensor
connector of inside of DVR. There is a phone jack on each board of DVR, this port for the
sensor input. All the signal of sensor link together, so plug a sensor that can control all main
monitor and spot monitor display at a time if all TVs at a same place.
1.
Please shut down the power of DVR when you plug in the sensor cable into the board,
otherwise it will cause the sensor damage.
2.
Make sure that the sensor itself is not covered and is facing the place from where you
will be using the remote controller.
3.
Do not use 27 Keys remote controller on the DVR site, because the DVR
will be reset when press “ F4 “ button of 27 Keys remote controller.
4.
Make sure that the sensor itself plug into the phone jack completely.
