71

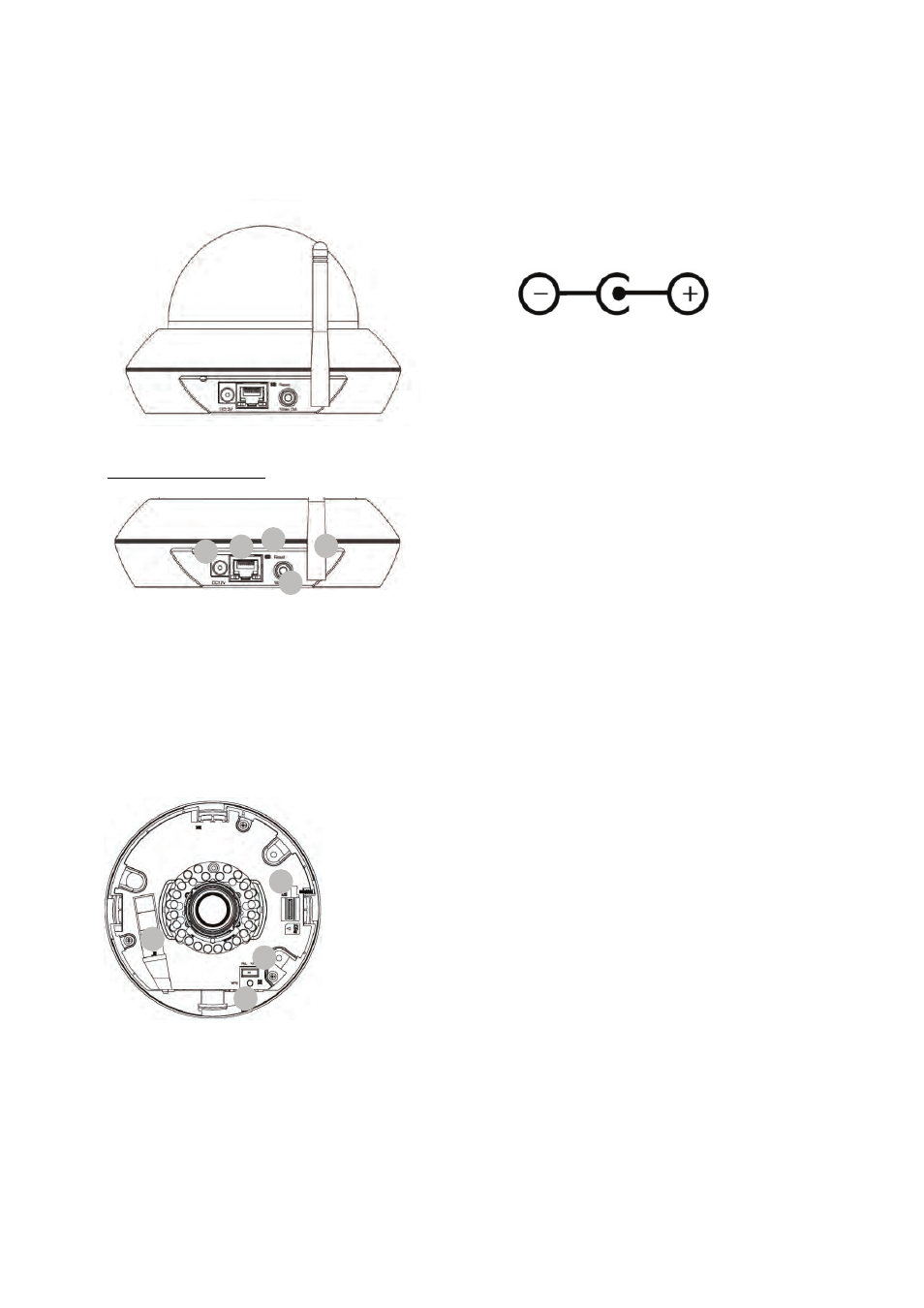

4. Camera description

4.1 Exterior view



Exterior view (detailed)

1 – Network connection (Ethernet), RJ45

2 – Voltage supply, 12 V DC, 5.5x2.1 mm
round plug


3 – Reset button

4 – Analog video output for service purposes

5 – WLAN antenna (TVIP31551 only)


4.2 Opening the camera


The camera must be opened to set the angle of view and access the connections inside the camera. Open
the camera by turning the dome ring counterclockwise.

4.3 Interior view


6 – Switching input / switching output

7 – MicroSD card slot

8 – PAL/NTSC switch for analog video output (4)

9 – WPS button (activation of the WPS function)

1

2

3

4

5

9

8

7

6
