Installation af indendørssirenen, Internal sounder - pcb diagram – ABUS FU9080 Privest Wireless Outdoor Siren User Manual
Page 49
49

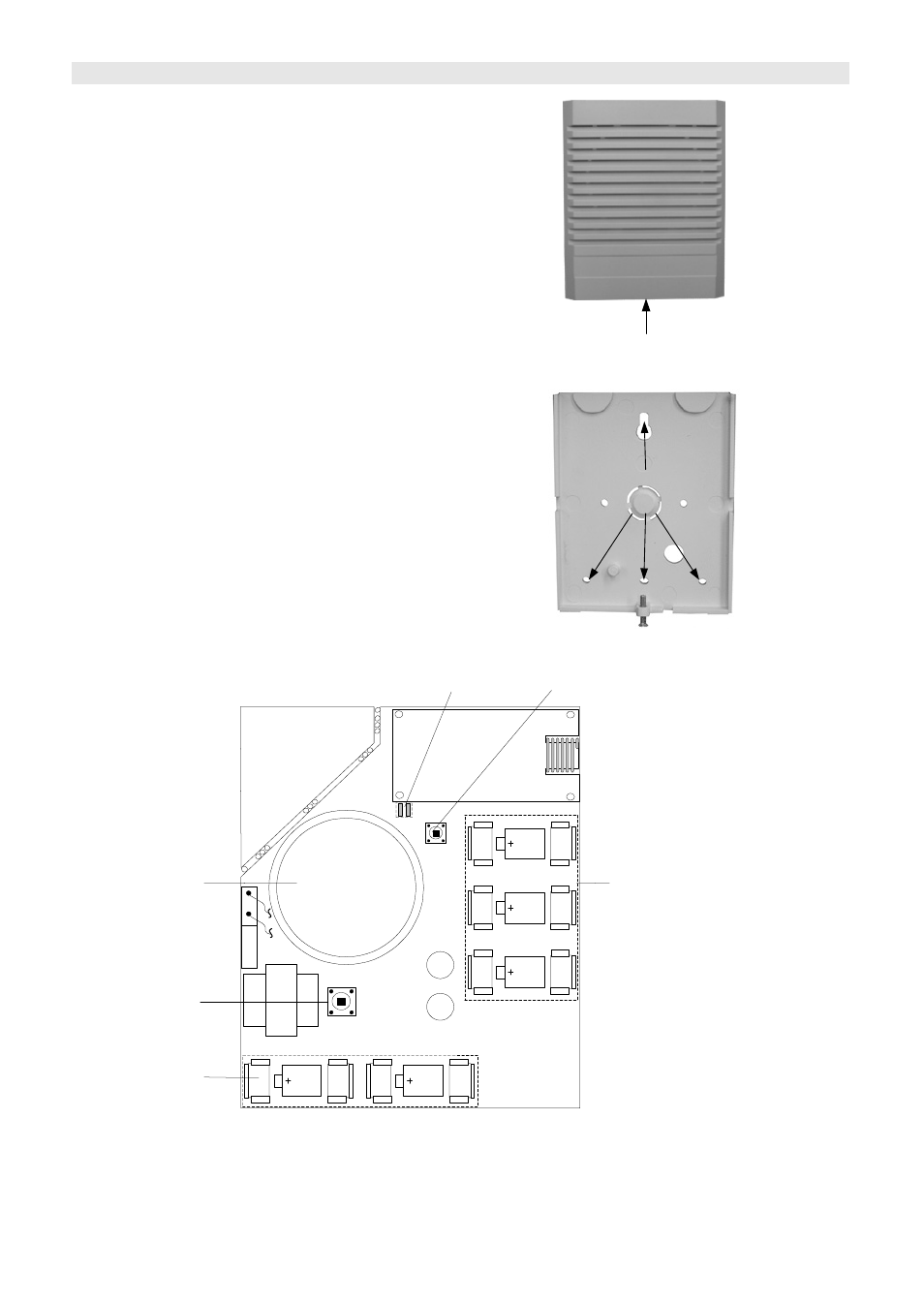

Installation af indendørssirenen
Remove cover
locking screw
1. Fjern kabinetskruen på sirenens
underside.
2. Fjern bundpladen fra indendørssirenen.
Brug bundpladen som boreskabelon, og
tegn borehullerne.
3. Bor borehullerne i væggen, og sæt evt.
rawlplugs i.
4. Skru bundpladen fast til væggen.
5. Sæt de vedlagte batterier i (vær
opmærksom på + og -).
6. Sæt sirenen op i anlægget.
7. Efter opsætningen af sirenen skal du stille
den på bundpladen igen og sætte
kabinetskruen i.
Fixing Points to
Wall
Speaker Batteries
(6V, Serial
Connection)
Speaker
Reset
Switch
S
P
E
A
K
E
R
T
A
M
P
E
R
Two Indication
LEDs
Tamper
Radio Batteries
(3V, Parallel
Connection)
Internal Sounder - PCB Diagram
