Installing the internal sounder
Remove cover
locking screw
1. Remove the casing screw from the
base of the sounder.
2. Remove the base plate from the
internal sounder. Using the base
plate as a drilling template, mark
the drill holes.
3. Drill the holes and insert wall plugs
if required.
4. Screw the base plate to the wall.
5. Insert the batteries supplied
(check polarity!).
6. Train the sounder for the system.
7. After training the sounder, mount it
on the base plate and insert the
casing screw .
Fixing Points to
Wall
Speaker Batteries
(6V, Serial
Connection)
Speaker
Reset
Switch
S
P
E
A
K
E
R
T
A
M
P
E
R
Two Indication
LEDs
Tamper
Radio Batteries
(3V, Parallel
Connection)

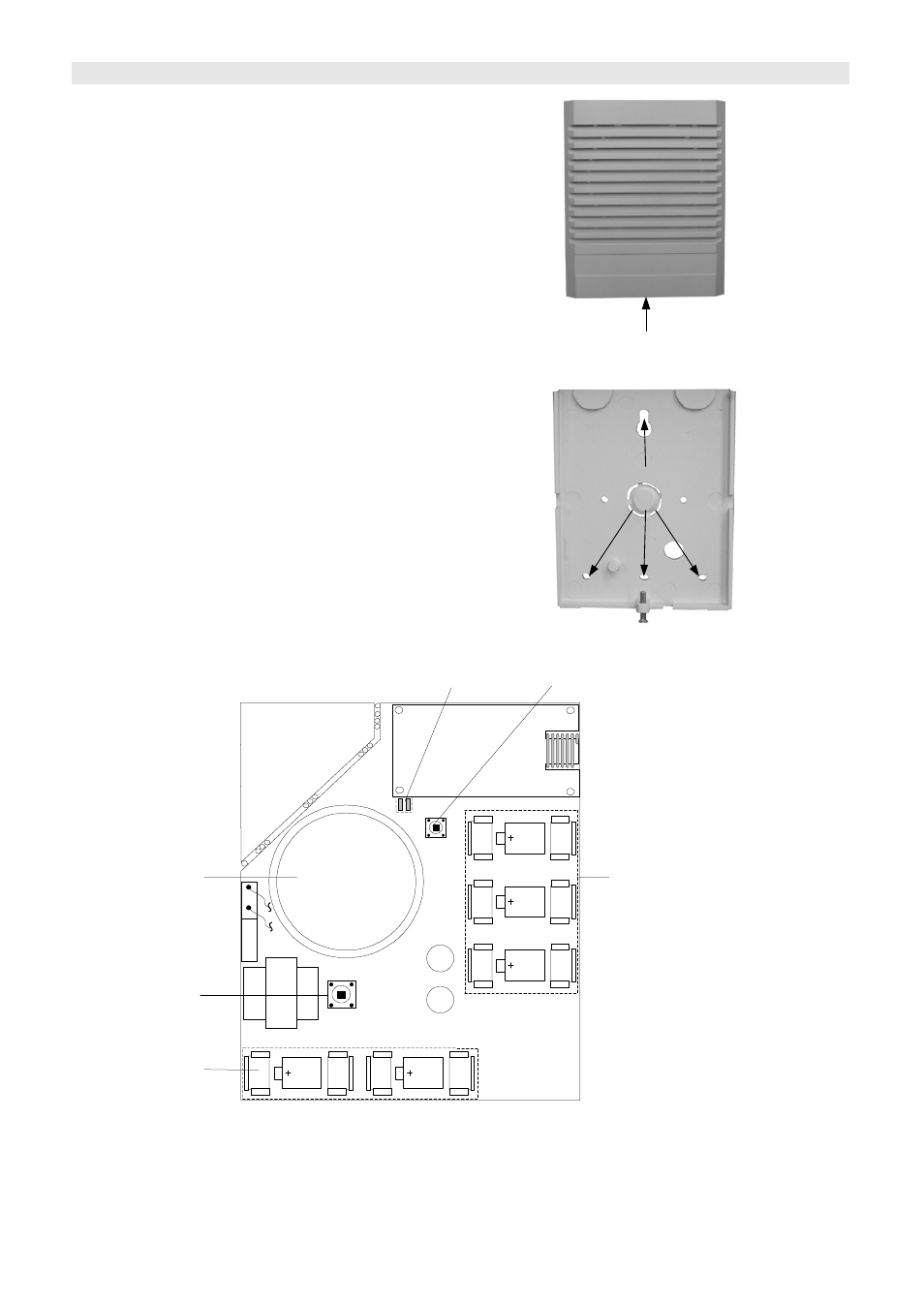

Internal Sounder - PCB Diagram
