D

15

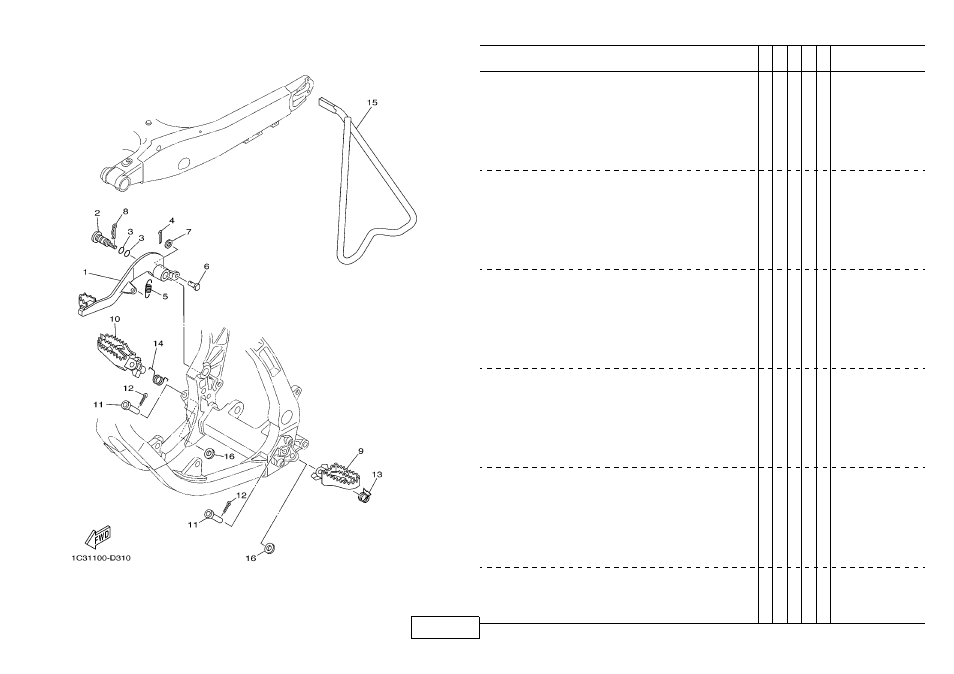

FIG. 31

STAND & FOOTREST

REF.
NO.

PART NO.

DESCRIPTION

1C

31

1C

32

1C

33

1C

34

REMARKS

1

1C3–27200–00

PEDAL, BRAKE

1

1

1

1

2

1C3–27217–00

BOLT

1

1

1

1

3

93210–11073

O-RING

2

2

2

2

4

91401–20012

PIN, COTTER

1

1

1

1

5

90506–16500

SPRING, TENSION

1

1

1

1

6

90240–08120

PIN, CLEVIS

1

1

1

1

7

90201–08089

WASHER, PLATE

1

1

1

1

8

90468–16099

CLIP

1

1

1

1

9

5XE–27411–01

FOOTREST 1

1

1

1

1

10

5XE–27421–01

FOOTREST 2

1

1

1

1

11

90240–10142

PIN, CLEVIS

2

2

2

2

12

91401–25015

PIN, COTTER

2

2

2

2

13

90508–282B8

SPRING, TORSION

1

1

1

1

14

90508–282B9

SPRING, TORSION

1

1

1

1

15

1C3–27311–00

STAND, SIDE

1

1

1

1

16

90201–10119

WASHER, PLATE

2

2

2

2
