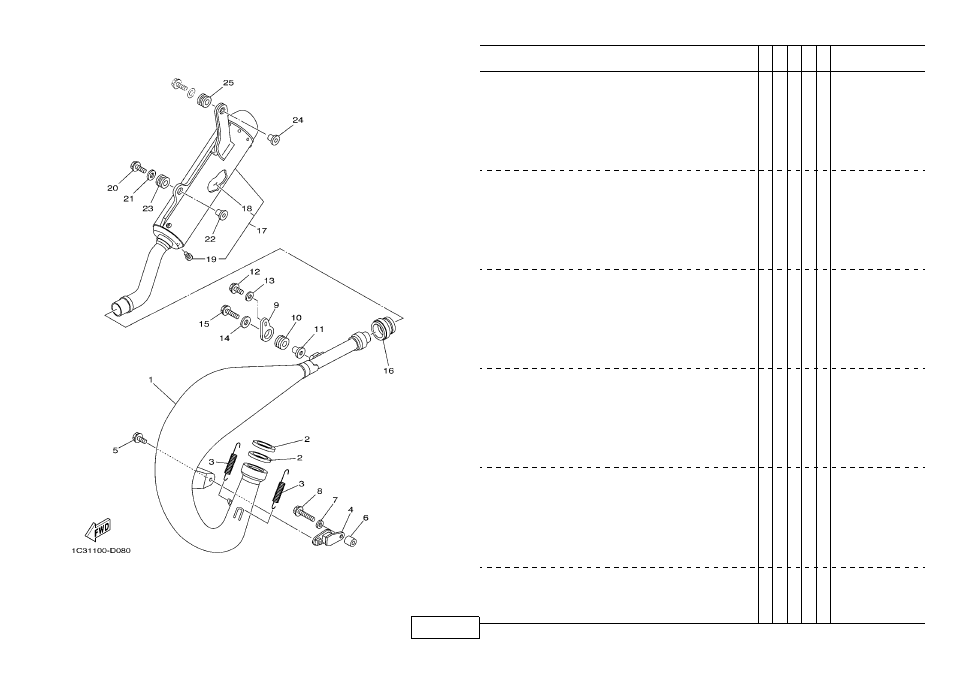

FIG. 8 EXHAUST
REF.
NO.
PART NO. DESCRIPTION
1C
31
1C
32
1C
33
1C
34 REMARKS
1 1C3–14610–00 EXHAUST PIPE ASSY 1 1 1 1 1
2 5MV–14642–00 SEAL, EXHAUST 2 2 2 2
3 90506–20012 SPRING, TENSION 2 2 2 2
4 565–14771–00 STAY, MUFFLER 1 1 1 1 1
5 95027–06012 BOLT, FLANGE 1 1 1 1
6 1C3–14763–00 SPACER 1 1 1 1
7 90201–06060 WASHER, PLATE 1 1 1 1
8 95027–06025 BOLT, FLANGE 1 1 1 1
9 5CU–14771–01 STAY, MUFFLER 1 1 1 1 1
10 90480–16561 GROMMET 1 1 1 1
11 90387–063G3 COLLAR 1 1 1 1
12 95027–06014 BOLT, FLANGE 1 1 1 1
13 90201–06557 WASHER, PLATE 1 1 1 1
14 90201–06071 WASHER, PLATE 1 1 1 1
15 95027–06025 BOLT, FLANGE 1 1 1 1
16 4JY–14615–00 JOINT, EXHAUST 1 1 1 1 1
17 5XE–14753–01 SILENCER, EXHAUST 1 1 1 1
18 5NY–1469A–00 .FIBER 1 1 1 1
19 92017–06010 .BOLT, BUTTON HEAD 2 2 2 2
20 95027–06025 BOLT, FLANGE 1 1 1 1
21 90201–06071 WASHER, PLATE 1 1 1 1
22 90387–063G3 COLLAR 1 1 1 1
23 90480–16561 GROMMET 1 1 1 1
24 90387–06039 COLLAR 1 1 1 1
25 90480–16404 GROMMET 1 1 1 1
