Yamaha YZ125T1 - Manual (Page 22)

C
2

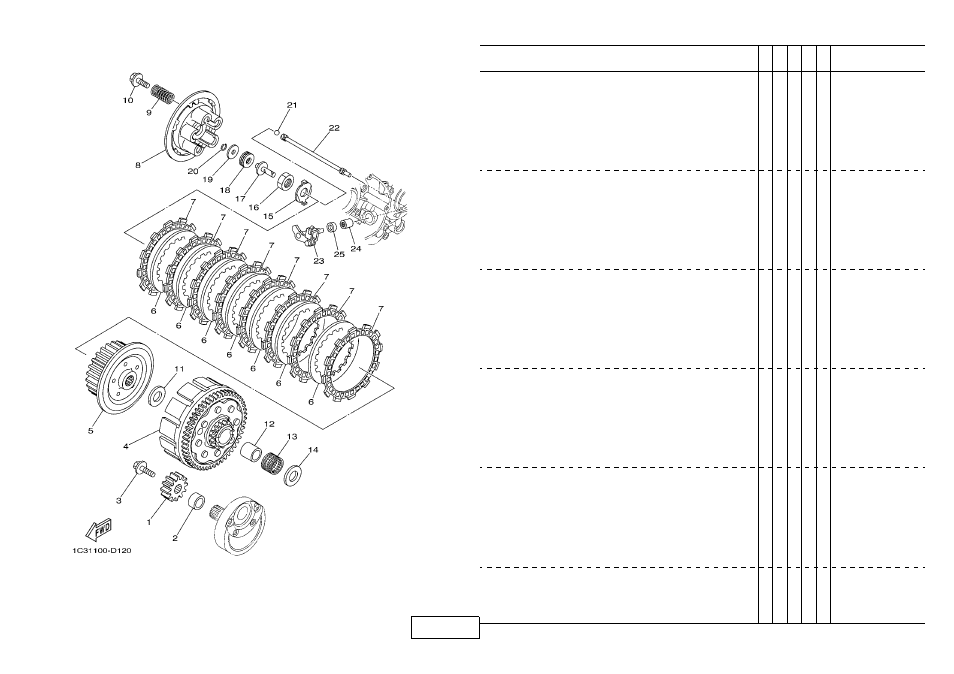

FIG. 12 CLUTCH
REF.
NO.
PART NO. DESCRIPTION
1C
31
1C
32
1C
33
1C
34 REMARKS
1 1C3–16111–00 GEAR, PRIMARY DRIVE 1 1 1 1
2 90387–172K2 COLLAR 1 1 1 1
3 90105–08071 BOLT, FLANGE 1 1 1 1
4 1C3–16150–00 PRIMARY DRIVEN GEAR COMP. 1 1 1 1
5 5NY–16371–00 BOSS, CLUTCH 1 1 1 1
6 3XJ–16324–01 PLATE, CLUTCH 1 7 7 7 7
7 3XJ–16321–00 PLATE, FRICTION 8 8 8 8
8 5HD–16351–00 PLATE, PRESSURE 1 1 1 1 1
9 90501–23598 SPRING, COMPRESSION 5 5 5 5
10 90159–06016 SCREW, WITH WASHER 5 5 5 5
11 90201–20611 WASHER, PLATE 1 1 1 1
12 1C3–16181–00 SPACER 1 1 1 1 1
13 93310–22539 BEARING 1 1 1 1
14 90201–20611 WASHER, PLATE 1 1 1 1
15 90215–16289 WASHER, LOCK 1 1 1 1
16 90170–16326 NUT 1 1 1 1
17 5NL–16356–00 ROD, PUSH 1 1 1 1 1
18 93340–21008 BEARING 1 1 1 1
19 90201–080H1 WASHER, PLATE 1 1 1 1
20 93440–07182 CIRCLIP 1 1 1 1
21 93511–32027 BALL 1 1 1 1
22 1C3–16357–00 ROD, PUSH 2 1 1 1 1
23 1C3–16380–00 PUSH LEVER ASSY 1 1 1 1
24 93315–11040 BEARING 1 1 1 1
25 93102–10008 OIL SEAL 1 1 1 1
