Yamaha YZ125T1 - Manual (Page 36)

D
2

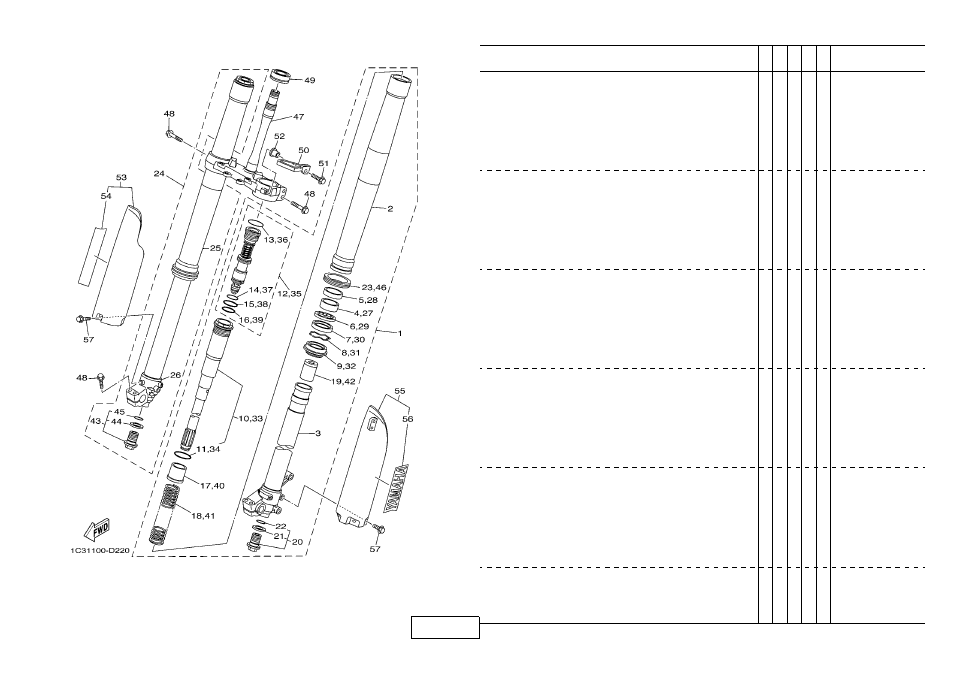

FIG. 22 FRONT FORK
REF.
NO.
PART NO. DESCRIPTION
1C
31
1C
32
1C
33
1C
34 REMARKS
1 1C3–23102–00 FRONT FORK ASSY (L.H) 1 1
1C3–23102–10 FRONT FORK ASSY (L.H) 1 1
2 1C3–23136–L0 .TUBE, OUTER 1 1 1 1
3 1C3–23120–L0 .INNER TUBE COMP.2 1 1 1 1
4 5XE–23171–L0 .PISTON, FRONT FORK 1 1 1 1
5 5XE–23125–L0 .METAL, SLIDE 1 1 1 1 1
6 5XE–23146–L0 .WASHER, OIL SEAL 1 1 1 1
7 1C3–23145–L0 .OIL SEAL 1 1 1 1
8 5XE–23153–L0 .RING, SNAP 1 1 1 1
9 5XE–23144–L0 .SEAL, DUST 1 1 1 1
10 1C3–23170–L0 .CYLINDER COMP., FRONT FORK 1 1
1C3–23170–M0 .CYLINDER COMP., FRONT FORK 1 1
11 1C3–23147–L0 ..O-RING 1 1 1 1
12 1C3–2316A–L0 .VALVE COMP. 1 1
1C3–2316A–M0 .VALVE COMP. 1 1
13 1C3–23188–L0 ..O-RING 1 1 1 1
14 5UX–23188–00 ..O-RING 1 1 1 1
15 43F–23188–10 ..O-RING 1 1 1 1
16 1C3–23188–M0 ..O-RING 1 1 1 1
17 1C3–23118–L0 .SPACER 1 1 1 1
18 1C3–23141–L0 .SPRING, FRONT FORK(K=4.1N/MM) 1 1
1C3–23141–M0 .SPRING, FRONT FORK(K=4.0N/MM) 1 1
19 1C3–2316E–L0 .SPACER 1 1 1 1
20 1C3–23111–L0 .BOLT, CAP 1 1 1 1
21 2HH–23158–L0 ..GASKET 1 1 1 1
22 276–23114–00 ..GASKET 1 1 1 1
23 1C3–2314F–L0 .PROTECTER GUIDE COMP., 1 1 1 1 1
