C

9

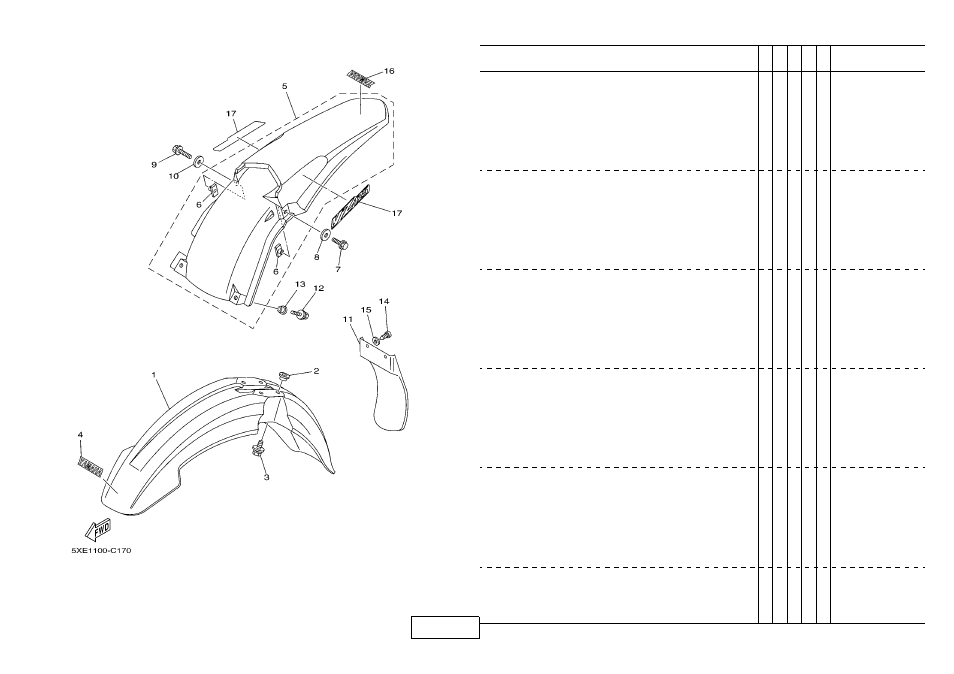

FIG. 17

FENDER

REF.
NO.

PART NO.

DESCRIPTION

1C

31

1C

32

1C

33

1C

34

REMARKS

1

5HD–21511–00

FENDER, FRONT

1

1

1

1

2

90387–06090

COLLAR

4

4

4

4

3

90119–06096

BOLT, WITH WASHER

4

4

4

4

4

4ES–2153E–01

EMBLEM, YAMAHA

1

1

1

1

5

5XE–21610–00

REAR FENDER COMP.

1

1

1

1

6

5XE–21635–00

.NUT, REAR FENDER

2

2

2

2

7

90105–06045

BOLT, FLANGE

1

1

1

1

8

90201–062A8

WASHER, PLATE

1

1

1

1

9

90105–06046

BOLT, FLANGE

1

1

1

1

10

90201–06071

WASHER, PLATE

1

1

1

1

11

5UN–21642–00

GUARD, FLAP

1

1

1

1

12

90119–06225

BOLT, WITH WASHER

2

2

2

2

13

90387–06009

COLLAR

2

2

2

2

14

97707–60016

SCREW, TAPPING

2

2

2

2

15

90201–06557

WASHER, PLATE

2

2

2

2

16

4ES–2153E–01

EMBLEM, YAMAHA

1

1

1

1

17

5XE–2163G–00

EMBLEM 1

2

2

2

2
