Yamaha YZ125T1 - Manual (Page 31)

C
11

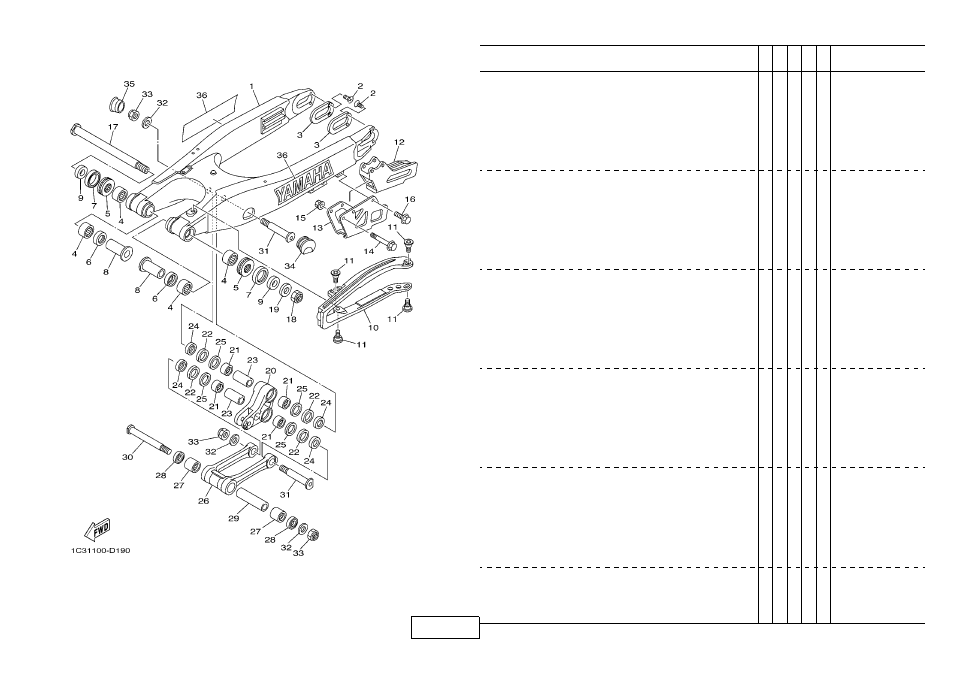

FIG. 19 REAR ARM
REF.
NO.
PART NO. DESCRIPTION
1C
31
1C
32
1C
33
1C
34 REMARKS
1 1C3–22110–00 REAR ARM COMP. 1 1 1 1
2 90151–04001 SCREW, COUNTERSUNK 4 4 4 4
3 1C3–22355–00 PATCH 2 2 2 2
4 93317–22262 BEARING 4 4 4 4
5 93342–22217 BEARING 2 2 2 2
6 93106–22019 OIL SEAL (DC 22-28-8) 2 2 2 2
7 93109–28043 OIL SEAL 2 2 2 2
8 90387–18008 COLLAR 2 2 2 2
9 90387–18009 COLLAR 2 2 2 2
10 1C3–22151–00 SEAL, GUARD 1 1 1 1
11 1C3–22969–00 SCREW, 1 4 4 4 4
12 1C3–22199–00 SUPPORT, CHAIN 1 1 1 1
13 1C3–22128–00 COVER, THRUST 1 1 1 1 1
14 95027–06050 BOLT, FLANGE 2 2 2 2
15 90179–06568 NUT 2 2 2 2
16 95027–06010 BOLT, FLANGE 1 1 1 1
17 1C3–22141–00 SHAFT, PIVOT 1 1 1 1
18 90185–16127 NUT, SELF-LOCKING 1 1 1 1
19 90201–160F6 WASHER, PLATE 1 1 1 1
20 1C3–2217A–00 ARM, RELAY 1 1 1 1
21 93315–32166 BEARING 4 4 4 4
22 93109–25001 OIL SEAL 4 4 4 4
23 90387–16010 COLLAR 2 2 2 2
24 90209–16008 WASHER 4 4 4 4
25 90201–21013 WASHER, PLATE 4 4 4 4
26 1C3–2217F–00 ROD, CONNECTING 1 1 1 1 1
27 93315–32165 BEARING 2 2 2 2
