Adjust Printhead Pressure
1/18/06 Z4Mplus/Z6Mplus User Guide 13163L-001 Rev. A
Adjust Printhead Pressure
You may need to adjust printhead pressure if printing is too light on one side or if you use thick
media.
See Figure 25 . The Z4Mplus pressure adjustment dials have four possible settings designated
by blocks of increasing size embossed on the print mechanism. The smallest block (fully
counterclockwise) is considered position 1, and the largest block (fully clockwise) is
considered position 4. For the Z6Mplus, the dials have seven settings instead of four.

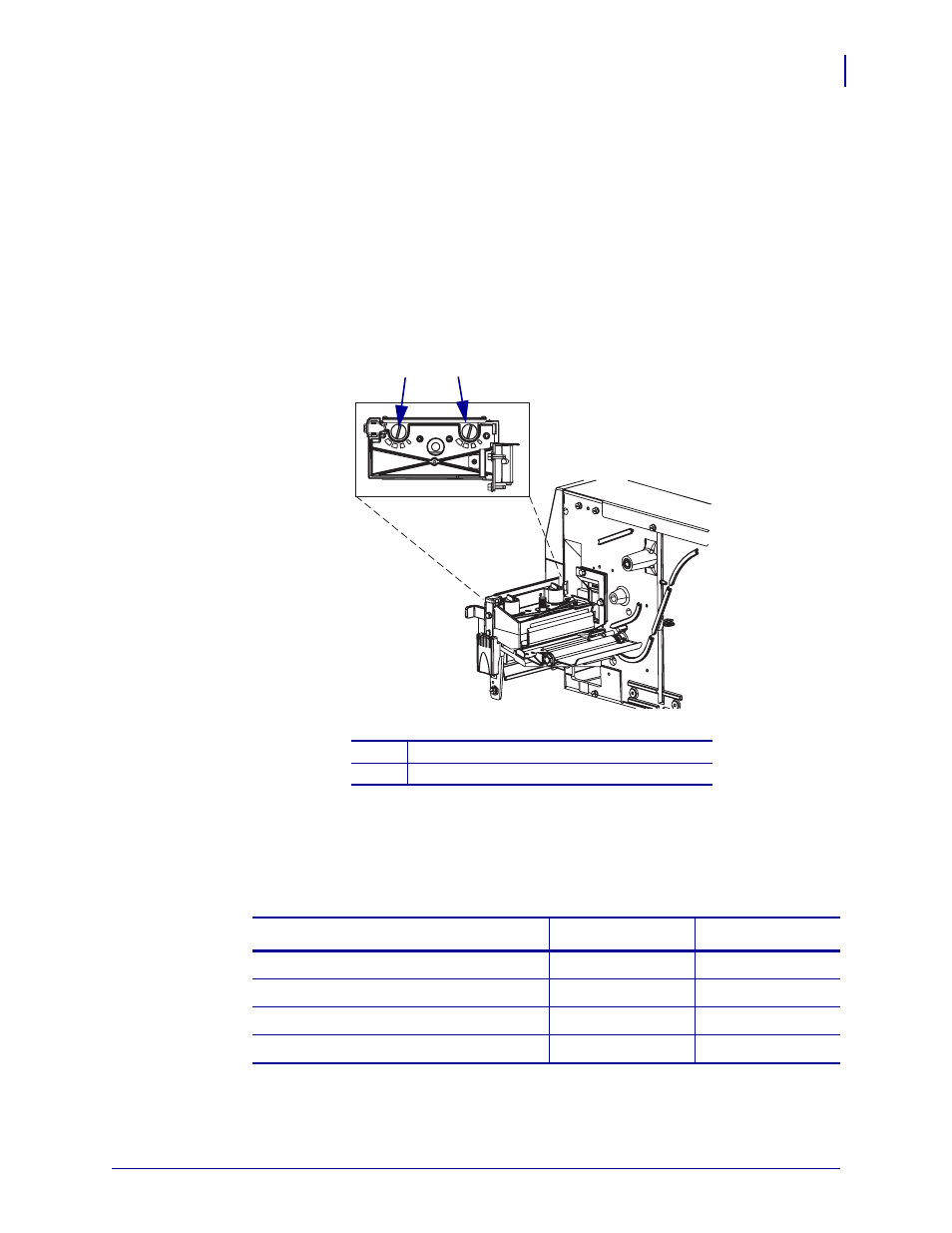

Figure 25 • Printhead Pressure Adjustment Dials
To set printhead pressure, complete these steps:
1. Use Table 6 or Table 7 to select the initial dial settings for your media, depending on
which printer you have.
1
Outside dial
2
Inside dial
1 2
Table 6 • Z4Mplus Printhead Pressure
Media Width Inside Dial Outside Dial
1 in. (25.4 mm) 3 1
2 in. (51 mm) 4 1
3 in. (76 mm) 3 2
3.5 in. and up (89 mm and up) 3 3
