35 Operations
Load Media in Peel-Off Mode or Liner Take-Up Mode
1/18/06 Z4Mplus/Z6Mplus User Guide 13163L-001 Rev. A

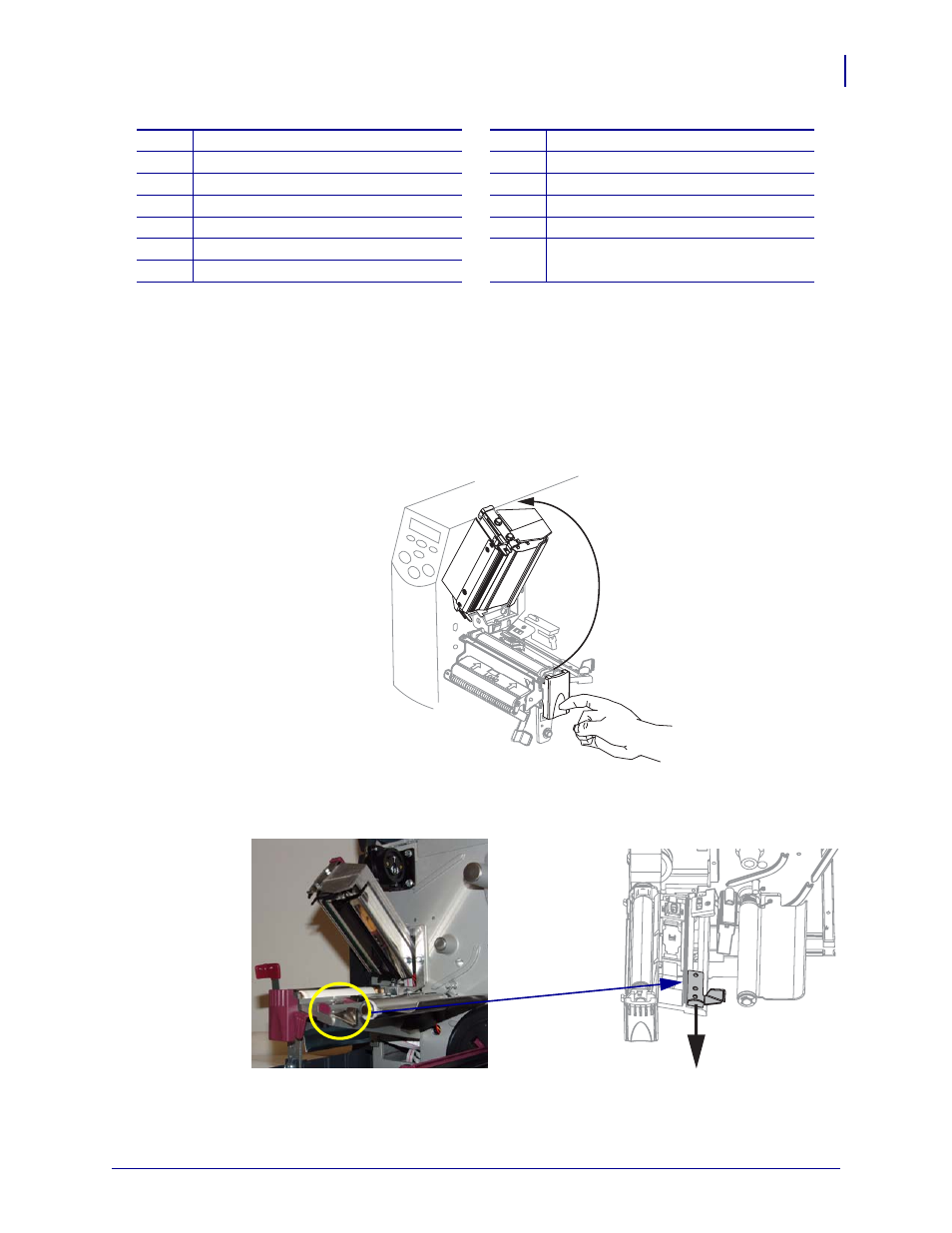

To load media in Peel-Off or in Peel-Off with Liner Take-Up mode, complete
these steps:
1. Set the printer to Peel-Off mode. See Select Print Mode on page 75 for instructions.
2. Insert media into the printer. See Insert Media into the Printer on page 29 for instructions.
3. Press the printhead release latch to open the printhead assembly.
4. Lift the printhead until it latches open.
5. Slide out the media guide.
1
Peel lever
8
Dancer
2
Tear-off/peel-off bar
9
Media guide
3
Printhead assembly
10
Printhead release latch
4
Transmissive sensor
11
Peel assembly
5
Media supply guide
12
Label
6
Media supply hanger
13
Label liner
7
Liner take-up spindle
