59 Operations
Position the Media Sensors
1/18/06 Z4Mplus/Z6Mplus User Guide 13163L-001 Rev. A
Position the Media Sensors
This printer uses two types of media sensors: transmissive and reflective.
Select or Position the Transmissive Sensor
The standard transmissive sensor ( Figure 22 ) is in a fixed position and enabled from the
control panel. An adjustable transmissive sensor, which is available as an option for the
Z4Mplus or Z6Mplus, can be adjusted for optimal print performance. For more information
about the operation of this sensor, see
Select a Sensor on page 76 .

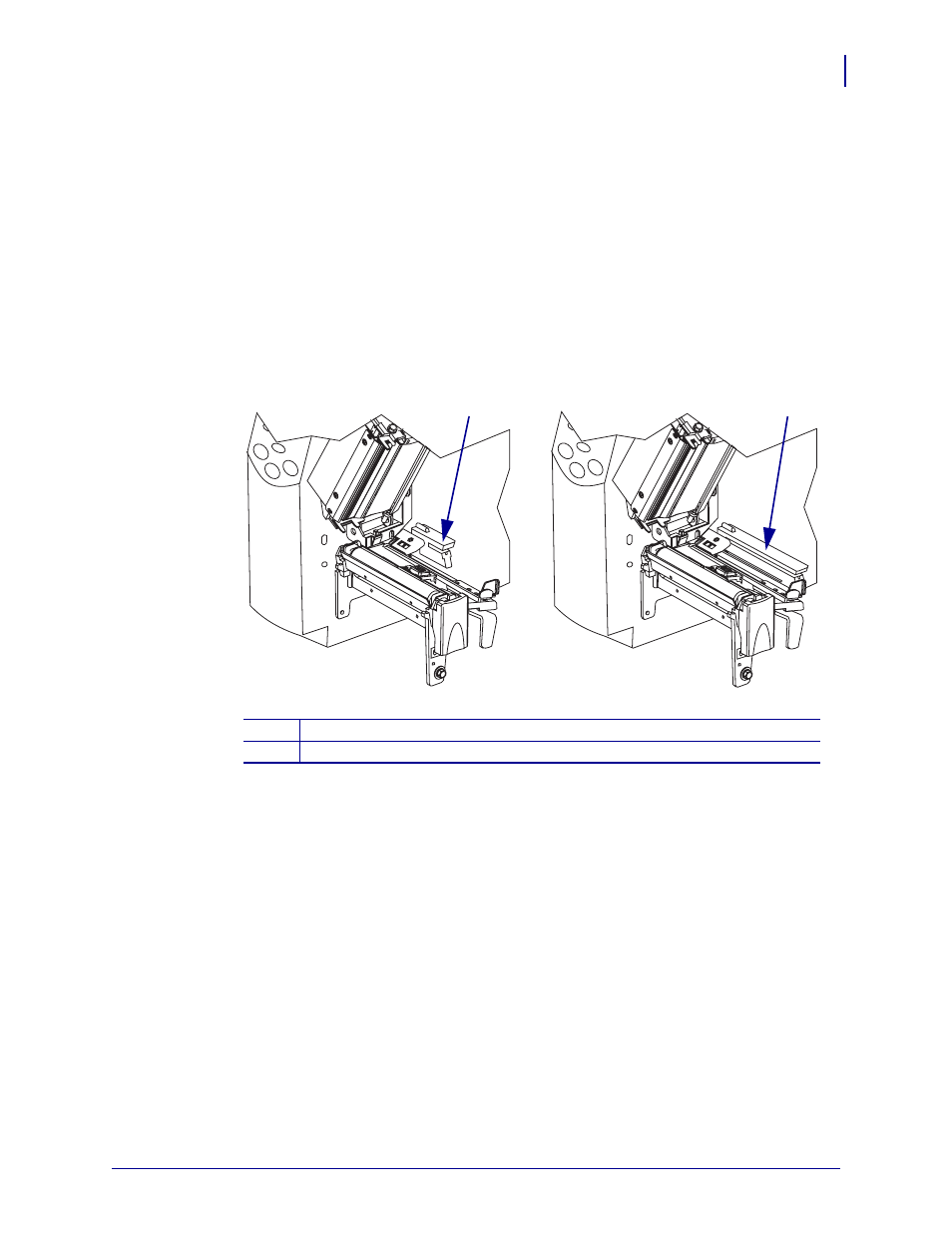

Figure 22 • Standard and Adjustable Transmissive Sensors
The lower section of the adjustable transmissive sensor has two white vertical positioning
marks and a movable adjustment tab pointer (
Figure 23 ).
1
Standard Transmissive Sensor
2
Adjustable Transmissive Sensor (optional)
1 2
