Operations
Load Media in Rewind Mode 50
13163L-001 Rev. A Z4Mplus/Z6Mplus User Guide 1/18/06

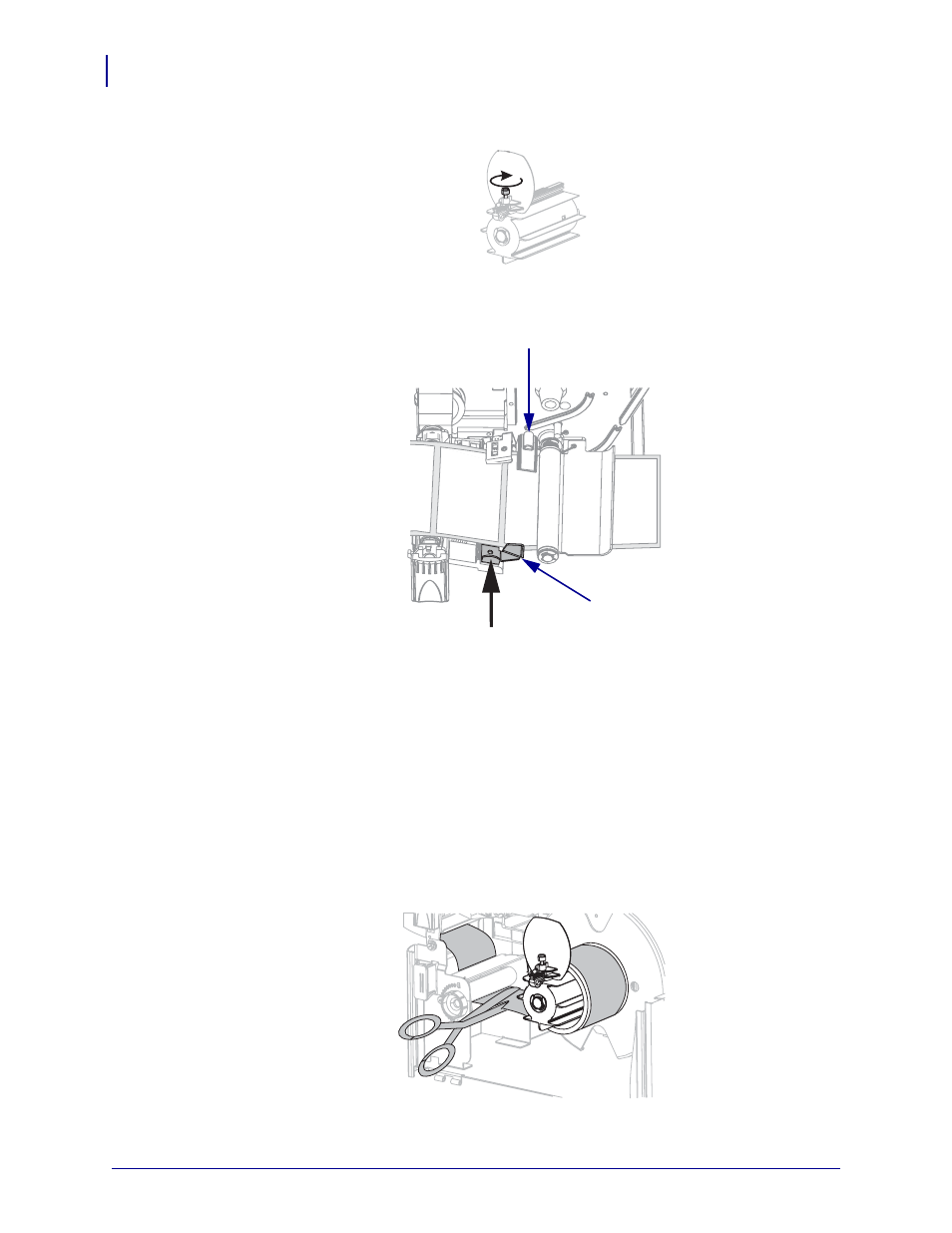

17. Tighten the thumbscrew on the rewind media guide.
18. Push the media to the back of the transmissive sensor (
1
). Slide in the media guide (
2
)
until it just touches the edge of the media.
19. Close the printhead assembly.
20. Close the peel assembly using the peel lever.
21. If the printer is paused (the pause light is on), press PAUSE to enable printing. Peeling
starts automatically.
Remove Printed Labels or Liner from the Rewind Spindle
To remove printed labels or liner from the rewind spindle, complete these
steps:
1. Cut the liner between the media alignment spindle and the rewind spindle.
1
2
