Operations
Load Media in Peel-Off Mode or Liner Take-Up Mode 34
13163L-001 Rev. A Z4Mplus/Z6Mplus User Guide 1/18/06
Load Media in Peel-Off Mode or Liner Take-Up Mode
This section applies only if the Peel-Off option or the Liner Take-Up option is installed
(
Figure 16 ).
The peel assembly consists of several spring-loaded rollers to ensure the proper roller
pressure. Use the peel release lever and your right hand to open and close the peel assembly.
Doing this will keep your fingers away from the rollers.

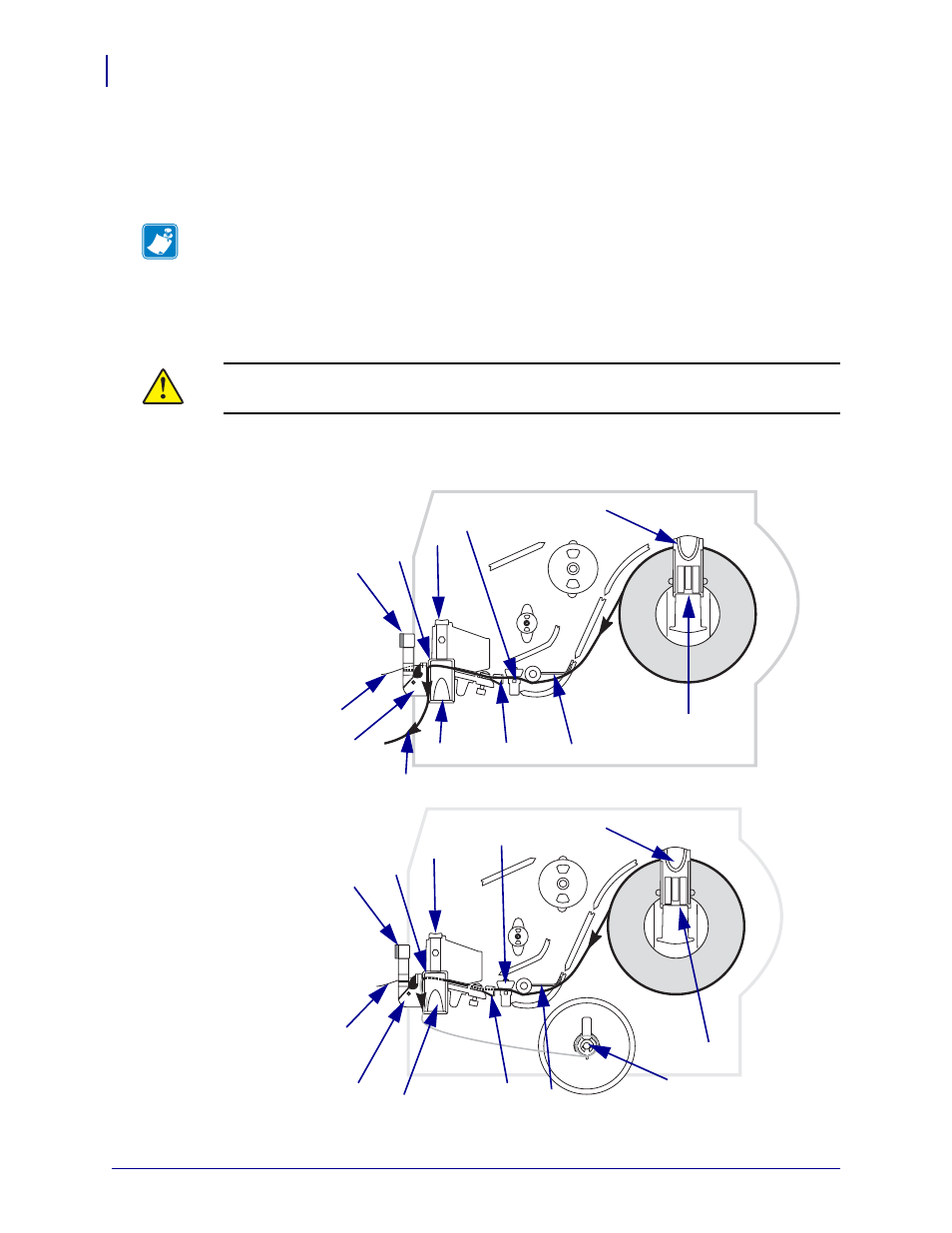

Figure 16 • Peel-Off and Peel-Off with Liner Take-Up Modes
Note • The Liner Take-Up option is not available on the Z6Mplus printer.
Caution • Do not use your left hand to assist in closing the peel assembly. The top edge of
the peel roller/assembly could pinch your fingers.
Peel-Off Mode
Peel-Off with
Liner Take-Up
Mode
4
5
6
8 9 10
13
11
12
1
2
3
1
2
3
4
5
6
7
9
8
10
11
12
