Troubleshooting
Printer Diagnostics 130
13163L-001 Rev. A Z4Mplus/Z6Mplus User Guide 1/18/06

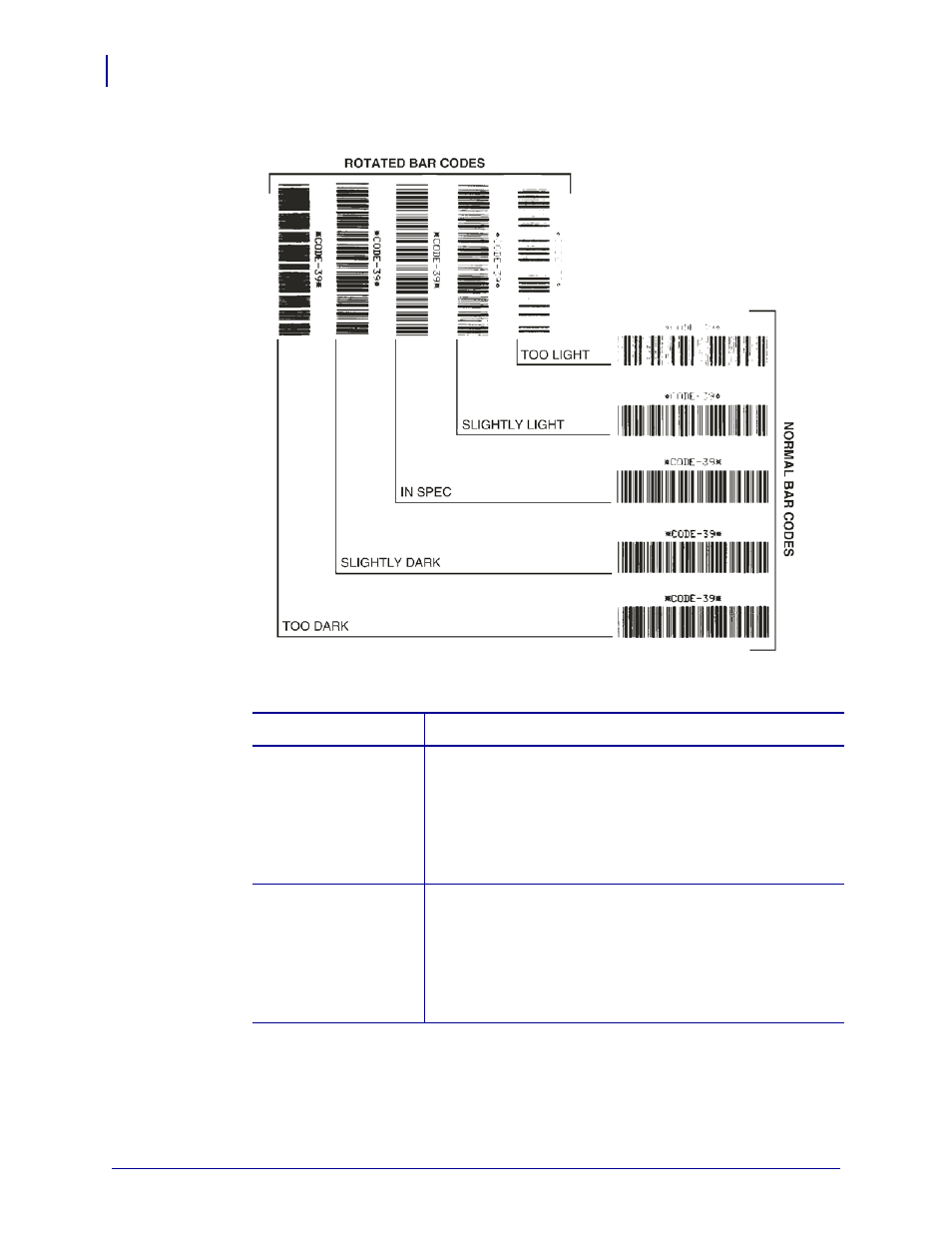

Figure 40 • Bar Code Darkness Comparison
Table 17 • Judging Bar Code Quality
Print Quality Description
Too dark Labels that are too dark are fairly obvious. They may be
readable but not “in-spec.”
• The normal bar code bars increase in size.
• The openings in small alphanumeric characters may fill in
with ink.
• Rotated bar code bars and spaces run together.
Slightly dark Slightly dark labels are not as obvious.
• The normal bar code will be “in-spec.”
• Small character alpha numerics will be bold and could be
slightly filled in.
• The rotated bar code spaces are small when compared to
the “in-spec” code, possibly making the code unreadable.
