Attach Lens Mounting Assembly to Lens Motor Carriage Plate:
1.
Remove the two Yaw/X Adjustment Levers and 1/4-20 Fiber Washers (item #8) from the
bottom of the Anamorphic Lens Holder (item #5).
2.
Place the Anamorphic Lens Holder on top of the AutoScope Carriage Plate (item #7).
Position the bracket so that the long slot at the bottom of the lens holder is
perpendicular to the corresponding slots on the carriage plate.
3.
Secure the Anamorphic Lens Holder to the plate using the Hex Bolts (item #6), Yaw/X
Adjustment Levers and Washers that you removed in Step 1.
4.
Use the Lens Rotation Set Screws to attach the Lens Adapter Ring (item #1) to the Pitch
Adjustment Yoke (item #2); see Figure 3-17. (Use the curved, oval-shaped holes on the
Pitch Adjustment Yoke.)
5.
Use the Height/Y Adjustment T-Screws (item #3), Pitch Adjustment T-Screws (item #4)
and Washers to attach the Pitch Adjustment Yoke and Lens Adapter Ring to the
Anamorphic Lens Holder. The Yoke should be as close to the primary lens as
possible.
6.
Attach the lens to the Lens Adapter Ring by threading it clockwise.

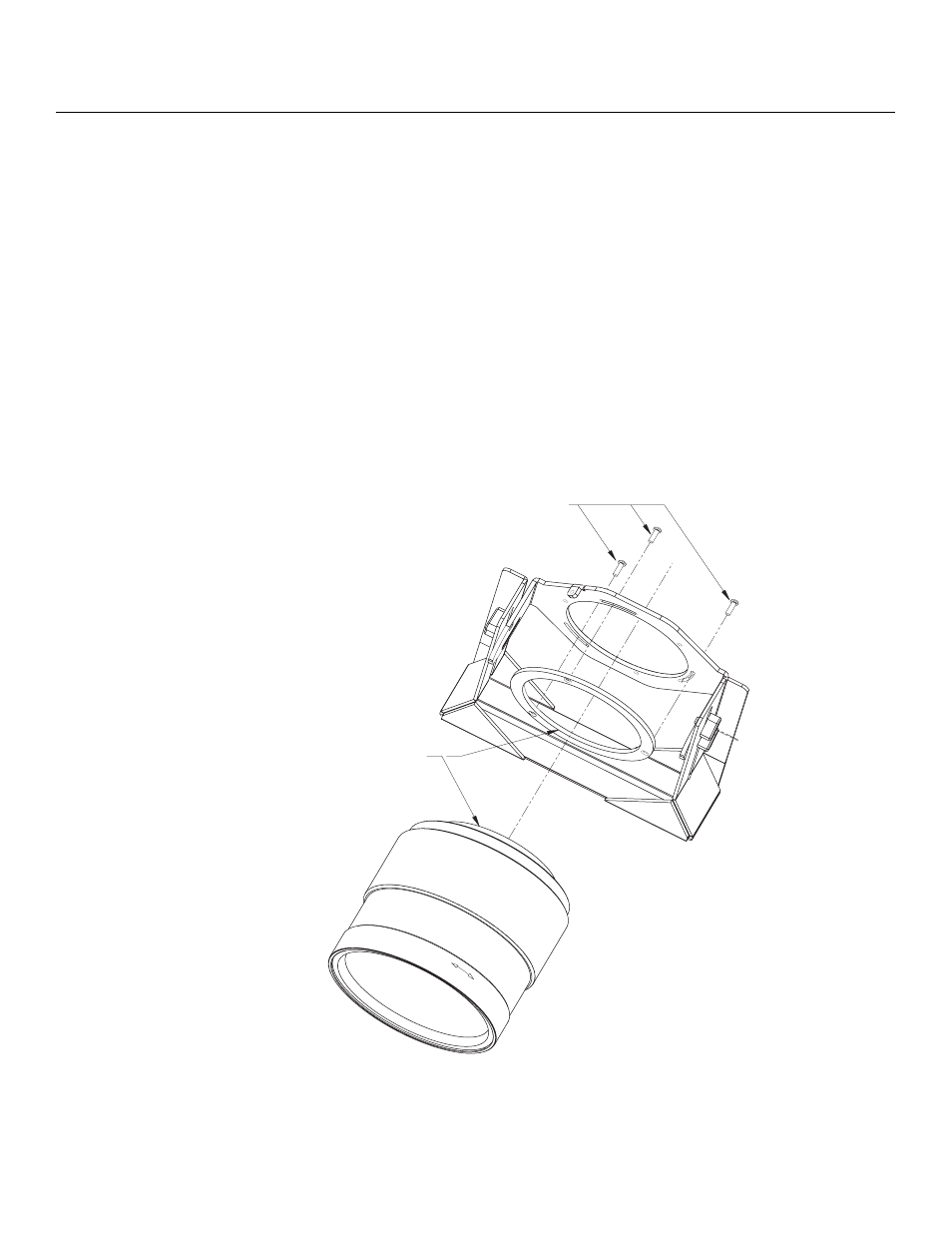

Figure 3-17. Attaching the Anamorphic Lens to the Lens Adapter Ring
FO
CU
S
LENS THREADS
INTO RING
Lens Rotation Set Screws
