Installation
24 Vidikron Vision 70 Series Owner’s Operating Manual
PRE
L
IMINAR
Y
3.6
Connections to the Vision
70 Proceed as follows to connect the Vision 70 to your video sources, external controller(s) – if
present – and AC power.
When connecting your equipment:
• Turn off all equipment before making any connections.
• Use the correct signal cables for each source.
• Ensure that the cables are securely connected. Tighten the thumbscrews on connectors
that have them.

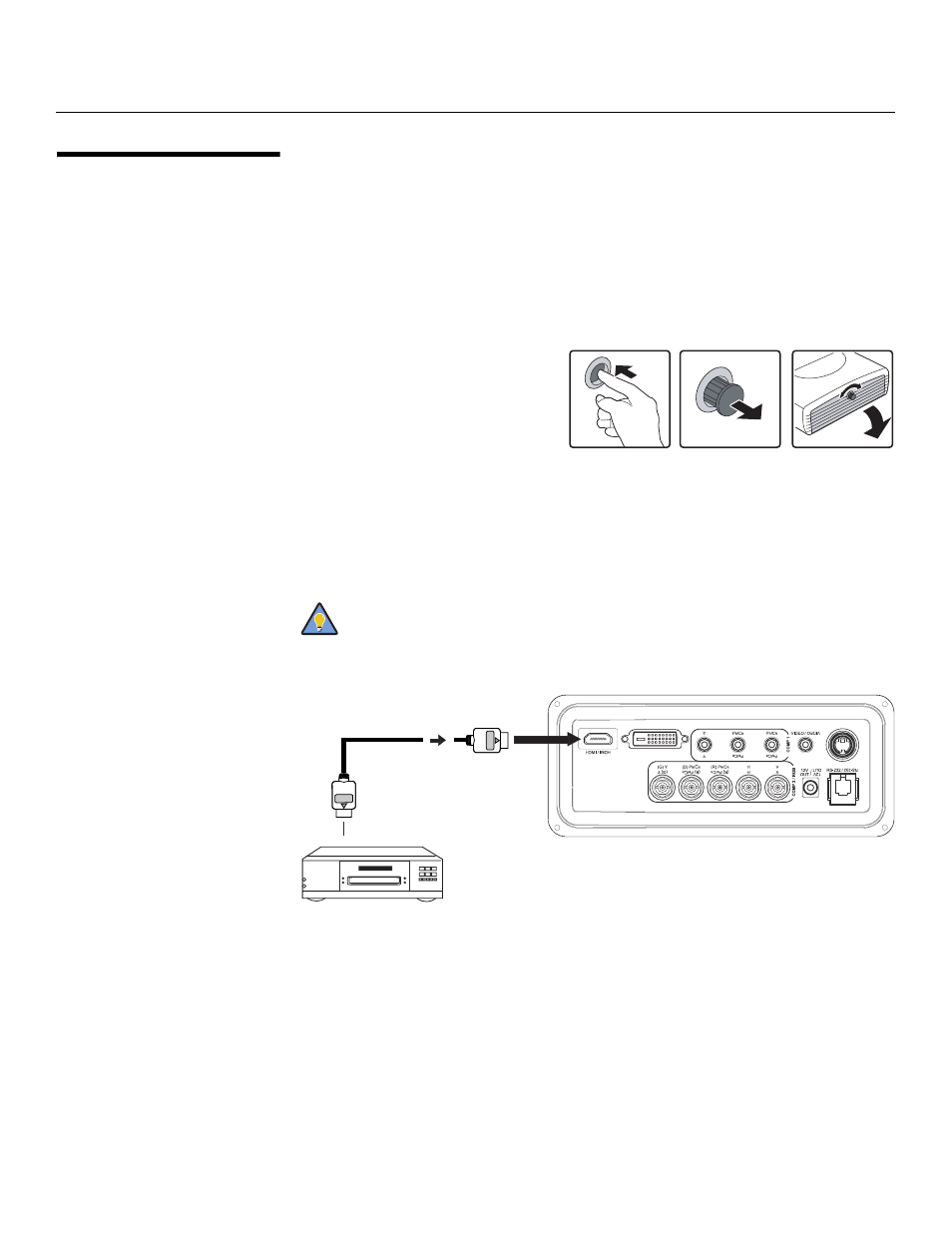

Connector Panel Access To access the connector panel, press
the door release button so it pops out.
Turn the knob clockwise or
counter-clockwise and pull gently on it
to open the door.
Connecting Source
Components to the Vision 70
Connect your video sources to the Vision 70 as shown and described in the sections that
follow.
HDMI/DVI Connections: See Figure 3-8. With an HDMI source, use the included
HDMI-to-HDMI cable; with a DVI source, use the included DVI-to-HDMI cable.
Figure 3-8. HDMI/DVI Source Connections
➤
➤
Use the HDMI input whenever possible. This ensures the highest video
quality because the signal is carried in the digital domain throughout the
entire signal path, from source component output into the projector.
Tip
S-VID / S-VID
HDMI or DVI Source
(DVD Player or HD Set Top Box)
