Vidikron Vision 70 Series Owner’s Operating Manual
19
PRE
L
IMINAR
Y
3.4
Installing the Optional
CineWide Lens Mount
If you are installing a Vision 70/CineWide or Vision 70/CineWide with AutoScope, proceed as
follows to install the AutoScope lens motor or fixed CineWide base plate.
Attaching the AutoScope
Lens Motor or Fixed
CineWide Base Plate to
Projector
If you are installing a Vision 70/CineWide, proceed with Installing the Lens Base Plate (Vision
70/CineWide) on page 22.
Installing the Lens Motor (Vision 70/CineWide with AutoScope): To install the AutoScope
lens motor on a Vision 70/CineWide with AutoScope:
1.
Place the projector upside down on a blanket or other soft surface.
2.

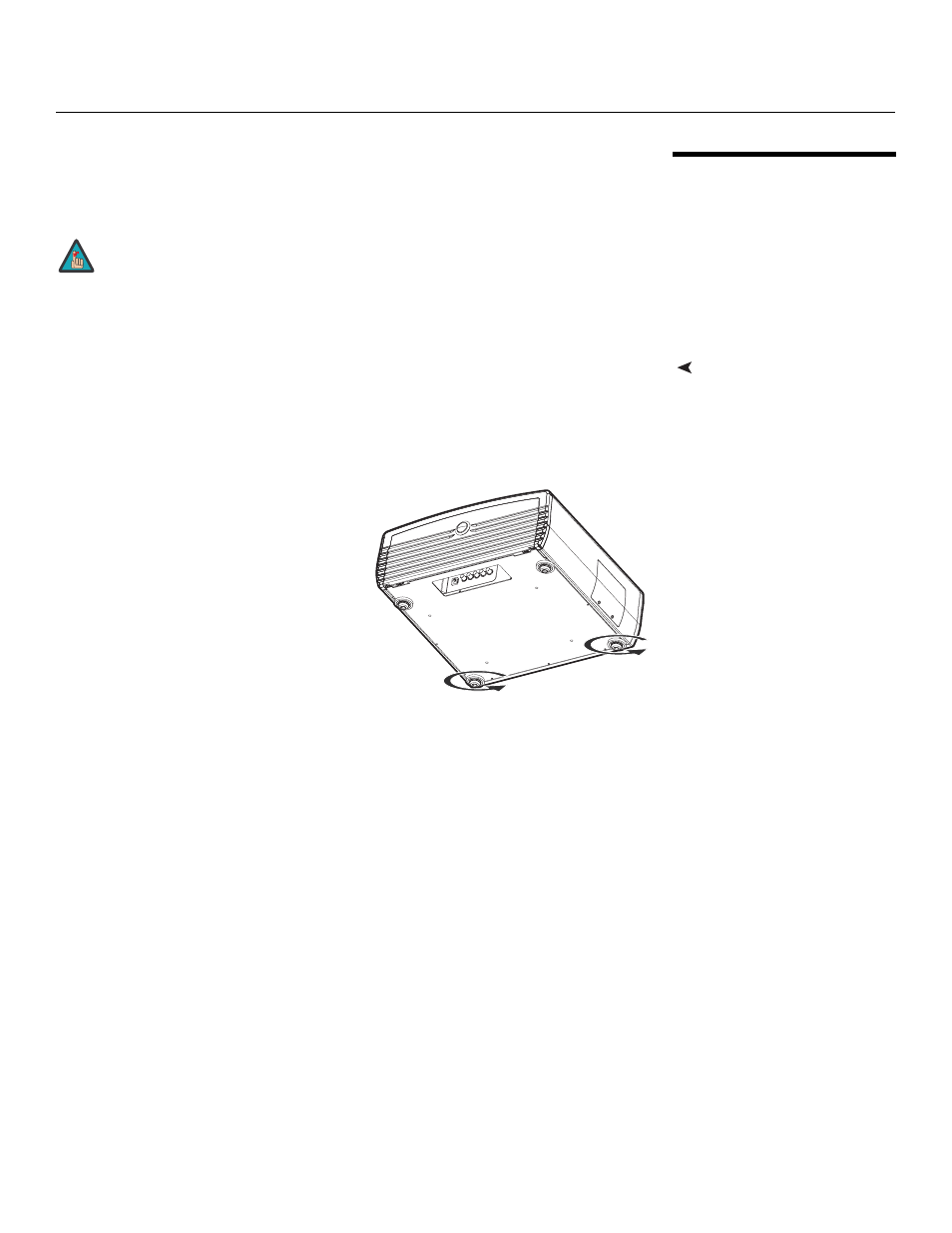

Remove the two height adjusters at the
front of the projector by turning them
counterclockwise until they come out.
3.
Line up the eight mounting holes on the lens motor housing with those on the bottom
of the projector.
1. Do not install the CineWide lens yet, only the fixed CineWide base plate
or AutoScope lens motor. You will install the CineWide lens after you
install the projector and adjust the primary lens.
2. Some components shipped with your projector may differ slightly
from what is shown in these instructions.
Note
