Once the proper lens angle has been set, firmly tighten the Yaw/Z-Adjustment Levers to
secure the lens in place.
Anamorphic Lens Installation
and Adjustment -
Vision 70/CineWide with
AutoScope
The Vision 70 Anamorphic lens mount kit consists of everything shown in Figure 3-16. Some
components shipped with your projector may differ slightly from what is shown in these
instructions.

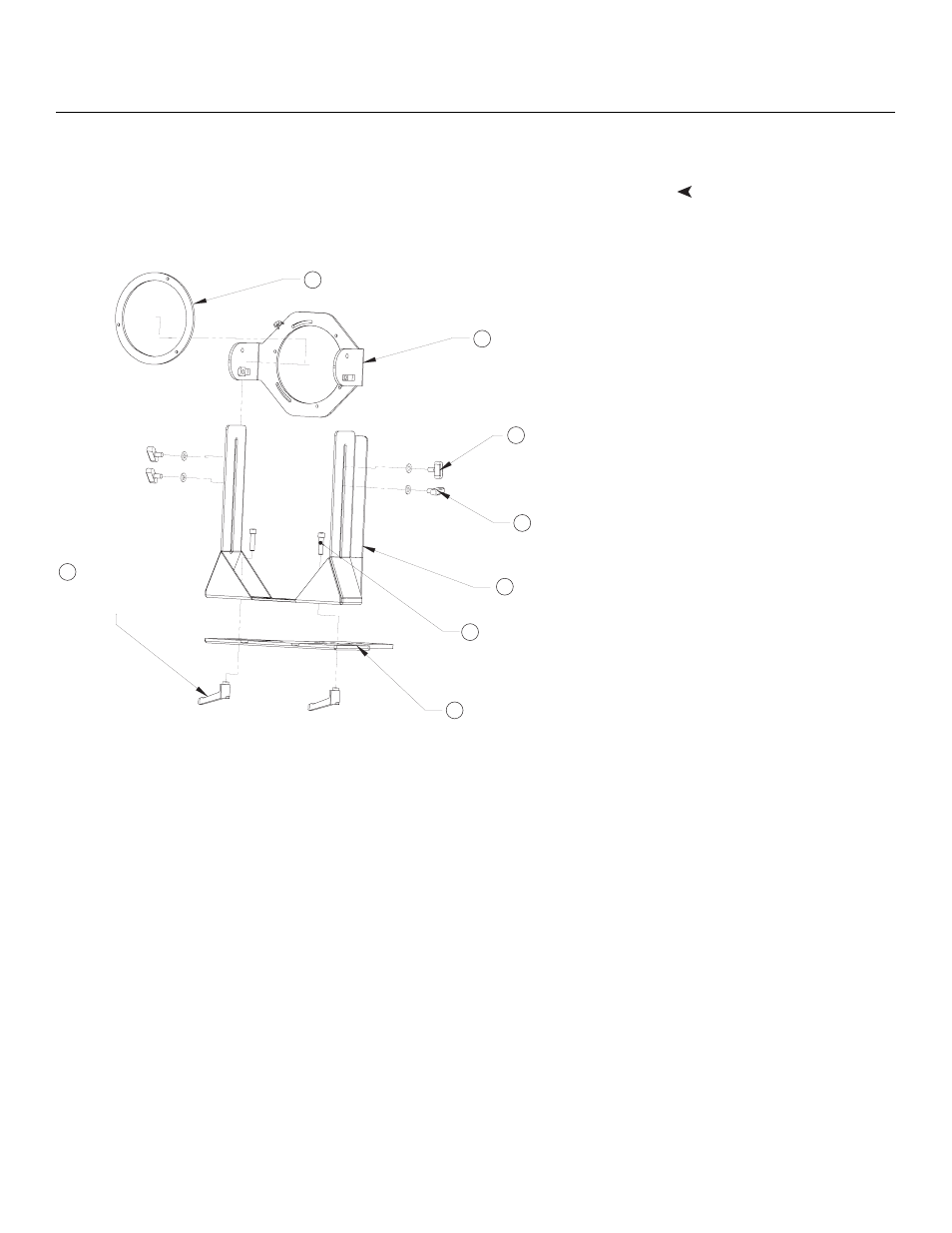

Figure 3-16. Anamorphic Lens Mounting Assembly - Exploded View
2
3
4
6
7
8
5
1
Pitch Adjustment Yoke
for Lens
Height/Y Adjustment
T-Screw (2x)
and Washer (2x)
Pitch Adjustment
T-Screw (2x)
and Washer (2x)
Anamorphic Lens
Holder
1/4-20 Hex Bolts (2x)
AutoScope Carriage Plate
Yaw/X Adjustment
Levers (2x) and
Washers (2x)
Lens Adapter Ring
