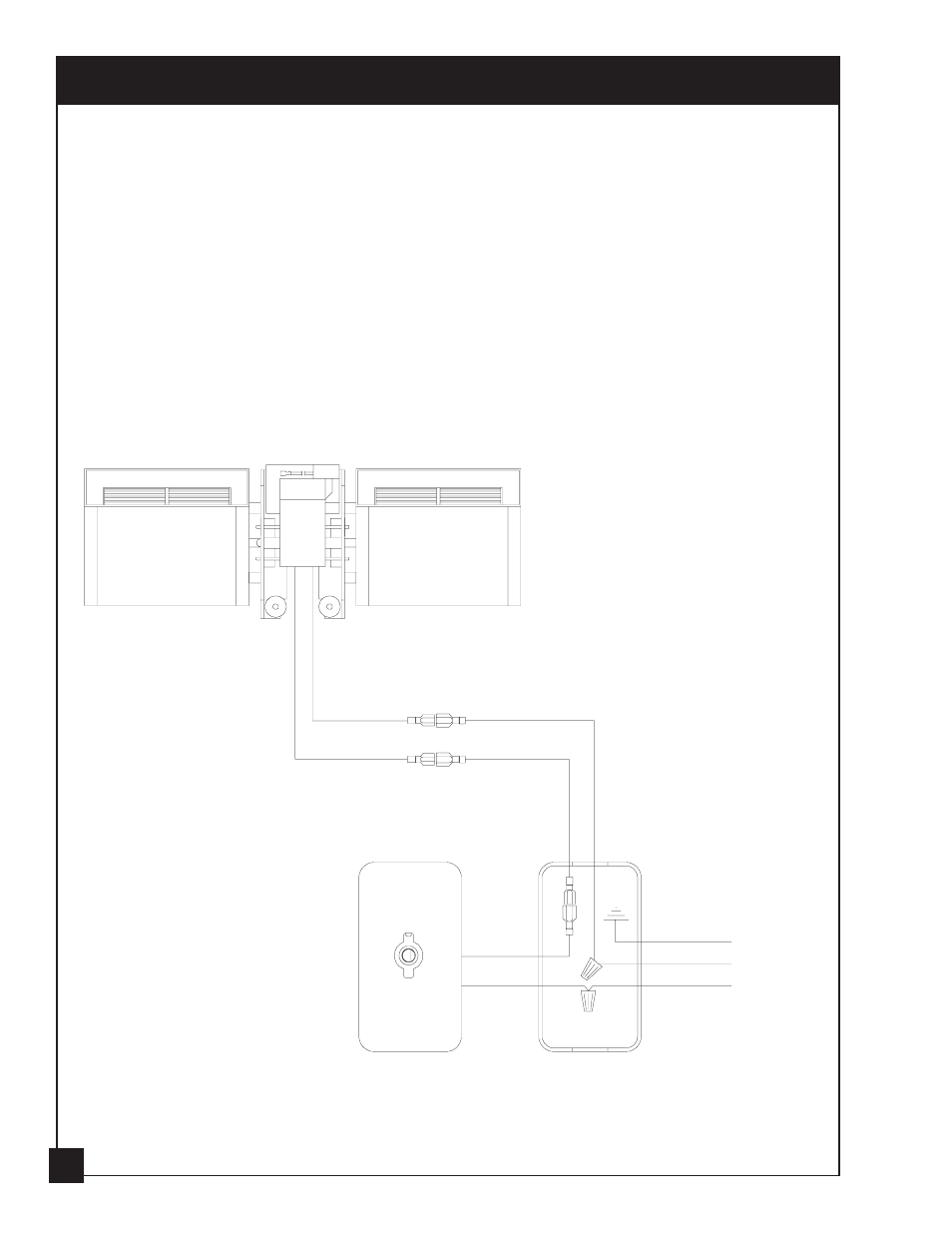

Wiring Diagram For Optional VF32B Blower Kit
BLOWER
BLACK
BLACK BLACK
WHITE
BLACK
WHITE
BLACK
GREEN
WHITE
RHEOSTAT
& JUNCTION BOX
COVER
2X4 JUNCTION BOX
TO
POWER
SUPPLY
You may install the VF32B Blower Kit in the VFZC32 Vent-free Gas Fireplace.
Each Blower Kit includes the following:
1- 120 CFM Blower
1 - Blower Box
1- Manual fan control switch
1- Parts bag
1- Installation Instruction sheet
The Blower will aid in the distribution and circulation of the heat throughout the heating area.
NOTE: Install blower assembly per instruction sheet included in Blower Kit.
Installing the Optional VF32B Blower Kit.
VF32B BLOWER KIT,
WIRING DIAGRAM
