INSTALLATION
CONTINUED
1.
Before installing the firebrick panels you must first remove the brick brackets.
A 5/16" nut driver will be required. (See Figure 7a & b, below for location)
2.
Carefully remove the firebrick panels from their box.
3.
Decide which side of the firebox you want the gas line to enter and knock out the
appropriate holes in the cabinet, firebox, and the firebrick panel.
4.
Place the back firebrick panel in the firebox, as shown in Figure 7a.
5.
Place the side firebrick panels in the firebox, as shown in Figure 7b.
6.
You can now replace the brick brackets using a 5/16" nut driver.

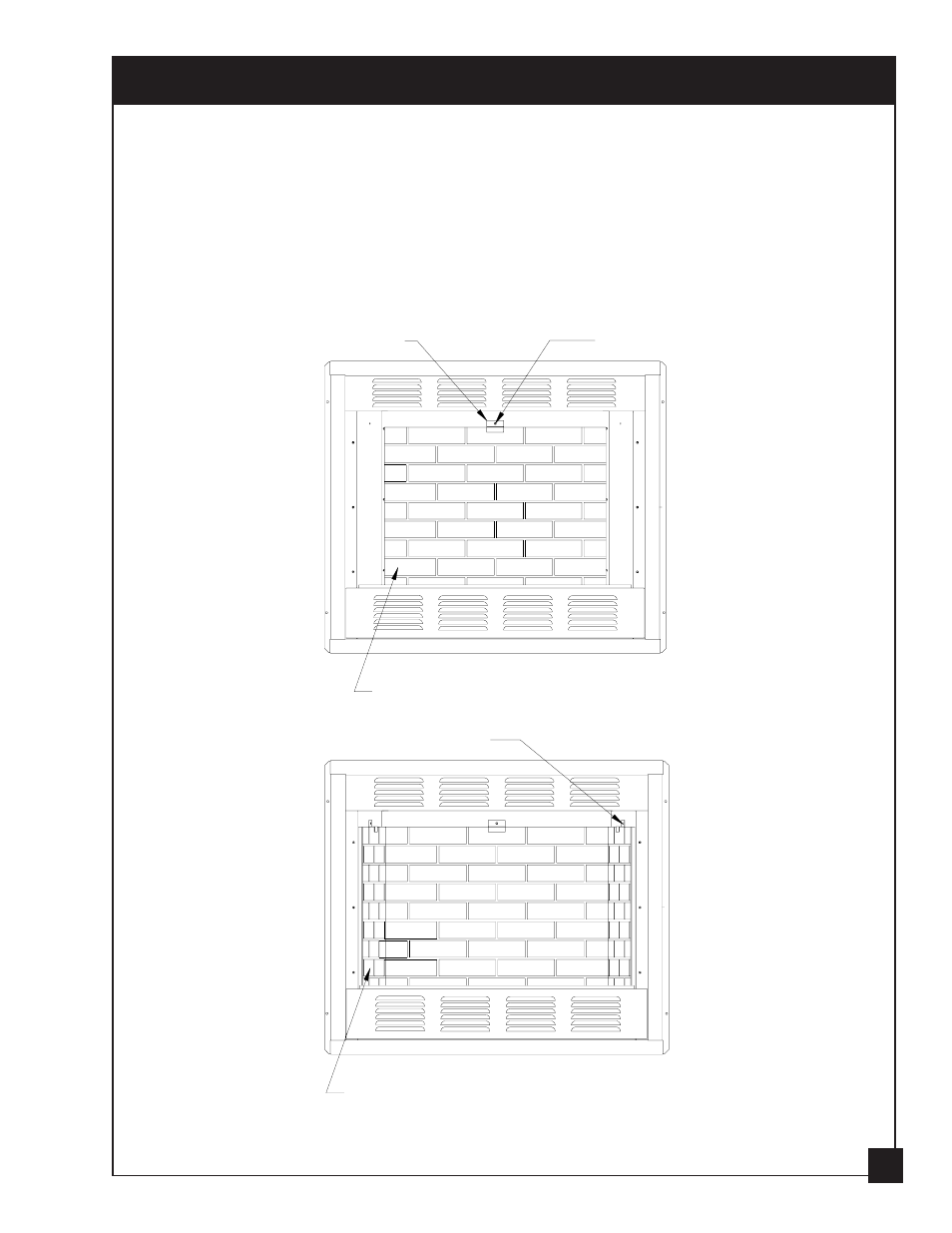

Installing the Firebrick Panels into the firebox.
Firebox shown with some parts missing for clarity.
Figure 7b
ATTACH BRACKET W/SCREW
ATTACH BRACKET W/SCREW
BACK FIREBRICK PANEL
Figure 7a
SIDE FIREBRICK PANEL
BRICK BRACKET
