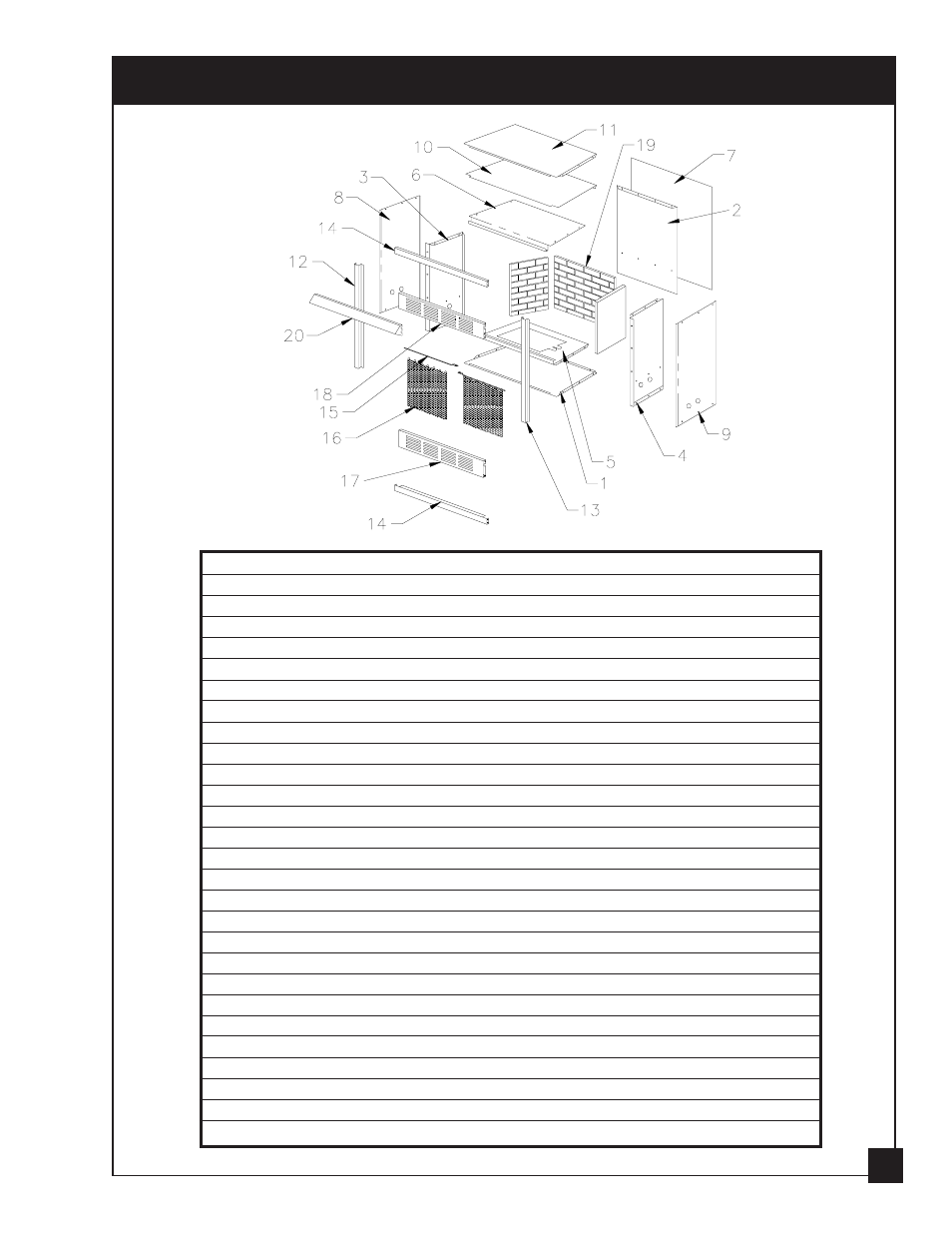

PARTS DIAGRAM AND PARTS LIST
25
KEY
DESCRIPTION
PART#
QTY.
1
CABINET BOTTOM
24651
1
2
FIREBOX BACK
24652
1
3
FIREBOX LEFT SIDE
24653
1
4
FIREBOX RIGHT SIDE
24654
1
5
FIREBOX BOTTOM
24655
1
6
FIREBOX TOP
24656
1
7
CABINET BACK
24657
1
8
CABINET LEFT SIDE
24658
1
9
CABINET RIGHT SIDE
24659
1
10
INNER TOP
24660
1
*
INSULATION
24661
1
11
CABINET TOP
24662
1
12
LEFT SIDE TRIM
24670
1
13
RIGHT SIDE TRIM
24671
1
14
TOP/BOTTOM TRIM
24663
2
15
CURTAIN ROD
24695
2
16
FIREPLACE SCREEN
89896
2
17
LOWER GRILL
24664
1
•
BRASS KNOB
89899
1
•
8-32 X 3/8 MS SCREW
83323
1
18
TOP GRILL
24665
1
•
SHOULDER SCREW
83477
12
19
BRICK PANEL SET
89888
1
-
BACK BRICK PANEL
89889
1
-
SIDE BRICK PANEL
89890
2
•
BRICK BRACKET
24650
3
20
HOOD
24666
1
• = Not Shown
