Page 18

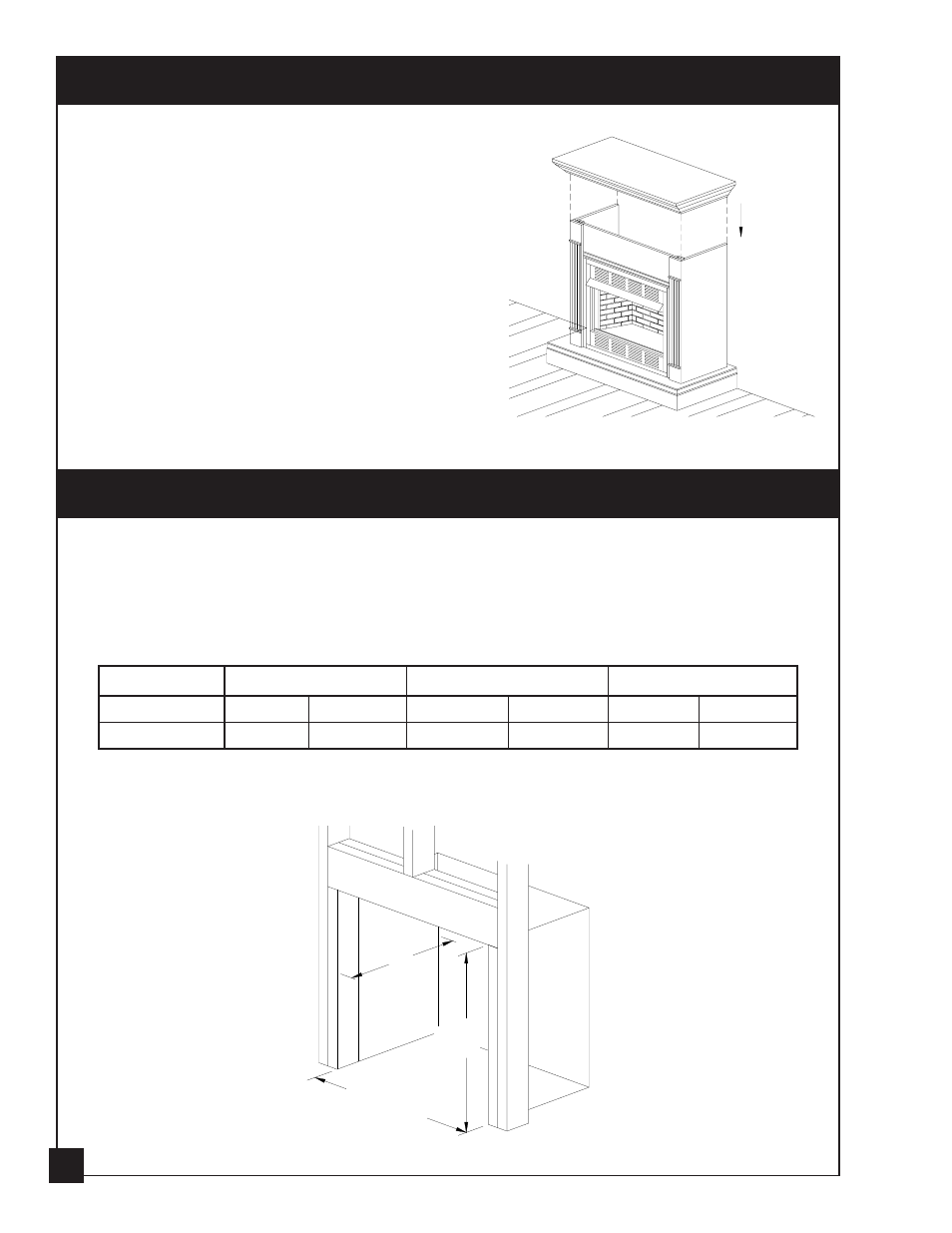

Figure 15 - Rough Opening for Installing in Wall
MANTEL INSTALLATION
CONTINUED
9.
Lower Mantel top onto legs and header to com-
plete installation of mantel.
Built-in Fireplace Installation.
Height
Front Width
Depth
Model #
Actual
Framing
Actual
Framing
Actual
Framing
VFZC32
35"
35-1/4"
35-3/8"
35-1/2"
17-3/8"
18"
Built-in installation of this fireplace involves installing the fireplace into a framed-in enclosure.
This makes the front flush with the wall. If installing a mantel above the fireplace, you must
follow the clearances shown in Figure 4, page 11. Follow the instructions below to install the
fireplace in this manner.
18"
35-1/4"
1.
Frame in rough opening. Use dimensions shown in Figure 15 for rough opening.
35-1/2"
18
Figure 14 - Installing Mantel Top
BUILT-IN INSTALLATION
