MANTEL INSTALLATION
CONTINUED
Figure 12 - Installing Firebox on Hearth Base
7. Place the Cabinet Mantel Legs on Hearth Base and slide each side firmly up against
the unit (See Figure 13). NOTE: The Cabinet Mantel Legs and Hearth Base should be
against the wall.
8. Lower the header into the slots at
the top of each leg, using four
1-1/4" screws to attach header
to the legs.

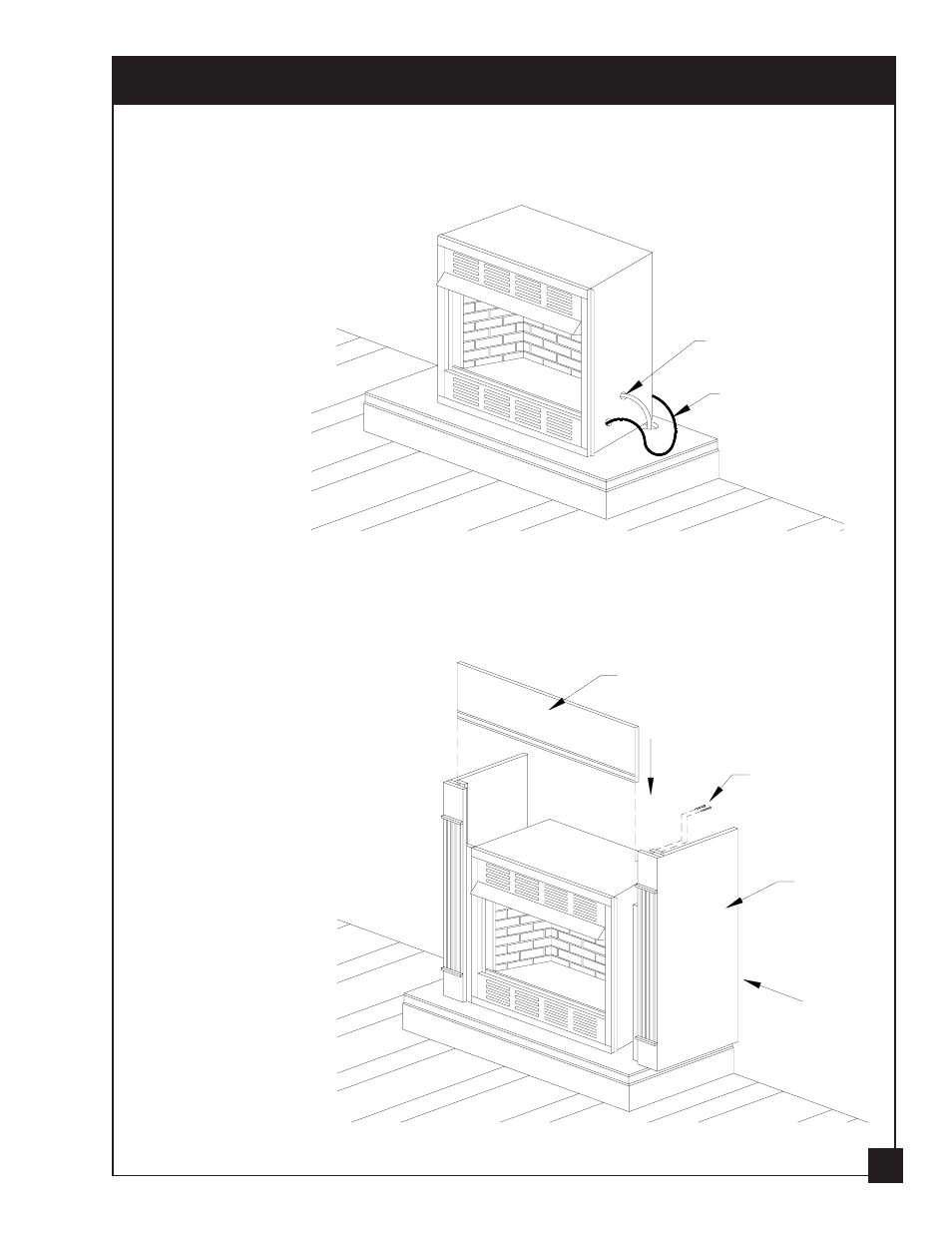

Figure 13 - Installing Cabinet Mantel Legs & Header
Header
Wood
Screws
Right
Leg
17
5. Center the unit on the Hearth Base. Run the Gas Line into the firebox. You can access
beneath the firebox, to connect gas supply to control valve, from the left or right of the
unit. Knock out the appropriate holes and run the flexible gas line into the fireplace and
connect to the flexible gas line supplied with the fireplace.
6. If installing Optional VF32B
Blower Kit, use a standard
3-prong power supply cord
(not included) and plug
blower into outlet.
NOTE: See Blower
Kit Instruction sheet
for full installation
instructions.
3-Prong power
supply cord
(not included)
Knock out plug in
cabinet and run
Flexible Gas Line
into firebox.
