Connections with the rgb out connector, E-22, Connecting personal computers and video equipment – PLUS Vision Data Projector User Manual
Page 22
E-22
Connecting Personal Computers and Video Equipment
Connections with the RGB OUT Connector
• The screen of the personal computer that is connected to the RGB connector will be output.
• While controlling the personal computer in front of you, the same screen can be projected with the projector. This allows
personal computer control even from a position at which the projector image cannot be viewed.

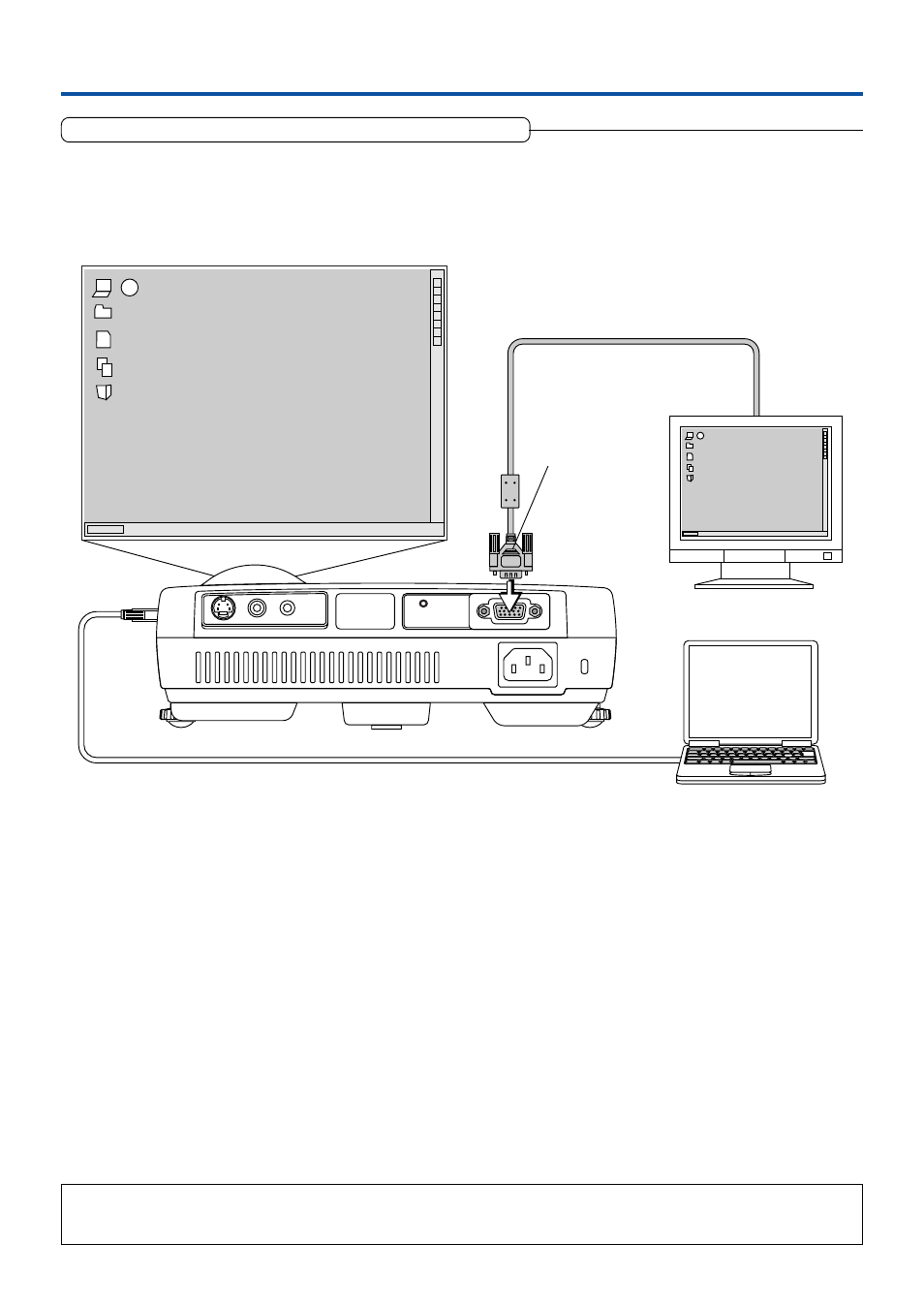

RGB OUT
AUDIO
VIDEO
S-VIDEO
RGB connector of
the monitor
(Mini D-Sub 15-pin)
Image projected to the screen
Note:
The RGB OUT connector is used exclusively for RGB. The proper signal will not be output from the RGB OUT connector when a component
signal is input to the RGB connector.
