Preparing the Remote Control
Button Battery Replacement
Using the remote control for the first time
The battery compartment is fitted with a transportation insulation sheet at the time of shipping. Pull
out the sheet and remove it. The remote control is now ready for use.
Replacement Method
1 Insert the tip of a ballpoint pen
or some other pointed object
into the hole of the battery
holder, then pull out to open. 2 Remove the old battery and in-
stall a new button battery with (+)
side facing upward in the battery
holder. 3 Insert the battery holder into the re-
mote control and push in until the
battery holder closes with a "click"
sound.
CR2025
M n O 2 - L iCELL 3 VO LT
S JA PA
NH
CR2025
CR2025
M n O 2 - L iCELL 3 V O
LT
S JA
PA
NH
CR2025
Purchase a CR2025 type battery for replacement.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type (CR2025) recommended by the manufacturer.
Dispose of used batteries according to your local regulations.

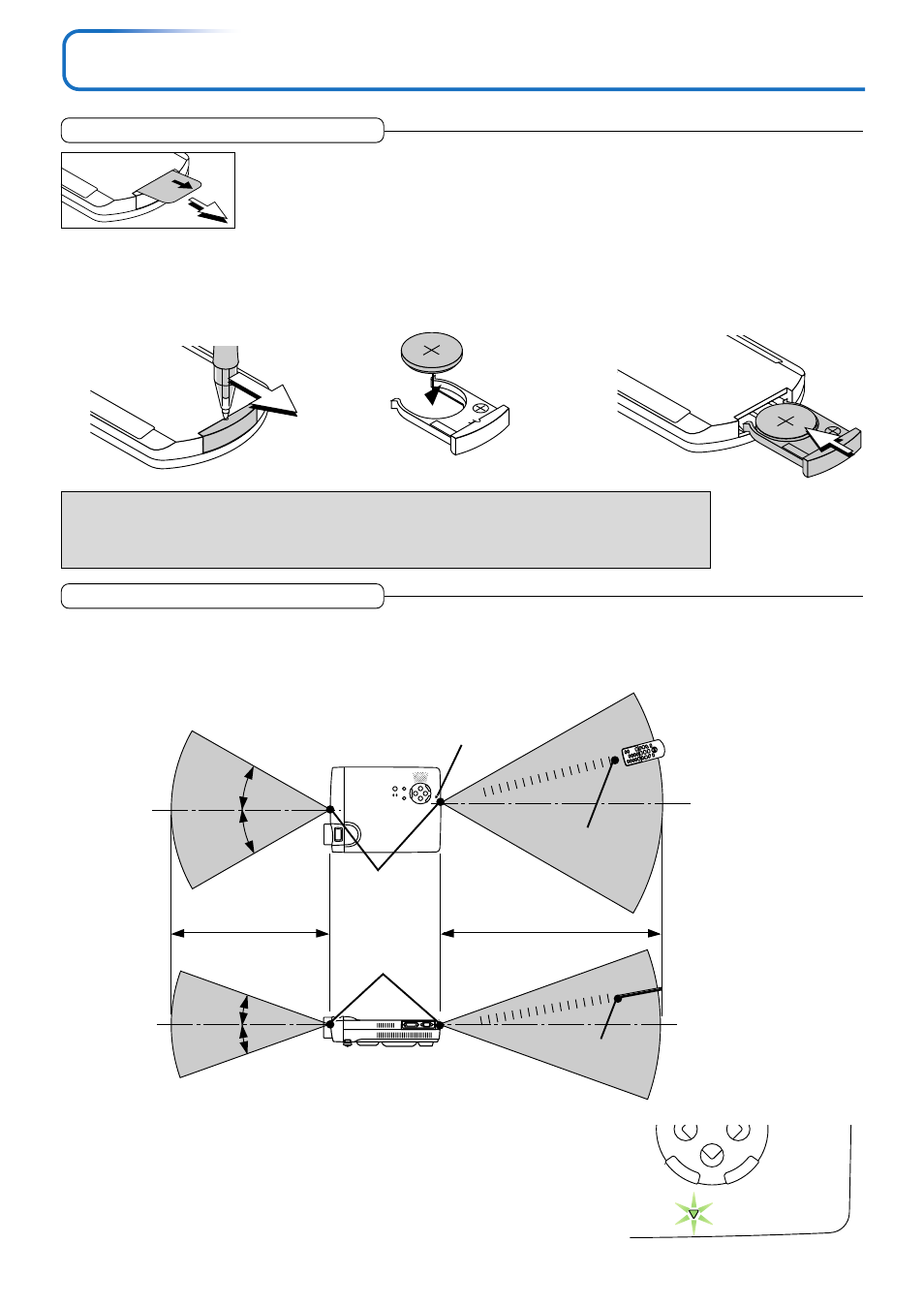

Remote Control Range
Point the infrared transmitter of the remote control toward the remote control sensor located at the front
or rear of the main unit and operate.
Reception of the remote control signal should generally be possible within the range illustrated below.
Side View
Top View
Remote control in-
frared transmitter
Remote control in-
frared transmitter
Remote con-
trol sensor
ACCESS Indicator
Function of the ACCESS Indicator
When the projector's remote control sensor receives the remote control signal, the
ACCESS indicator flashes once and the projector begins operation. If the indicator
does not flash, check the following points.
•
The indicator will not flash when bright light strikes the projector's remote control
sensor or the remote control's transmitter, or when there is an obstacle located in
between that blocks the signal.
• The indicator will not flash when the button battery is exhausted.
ENTER
CANCEL
SELECT
ACCESS
Remote con-
trol sensor
