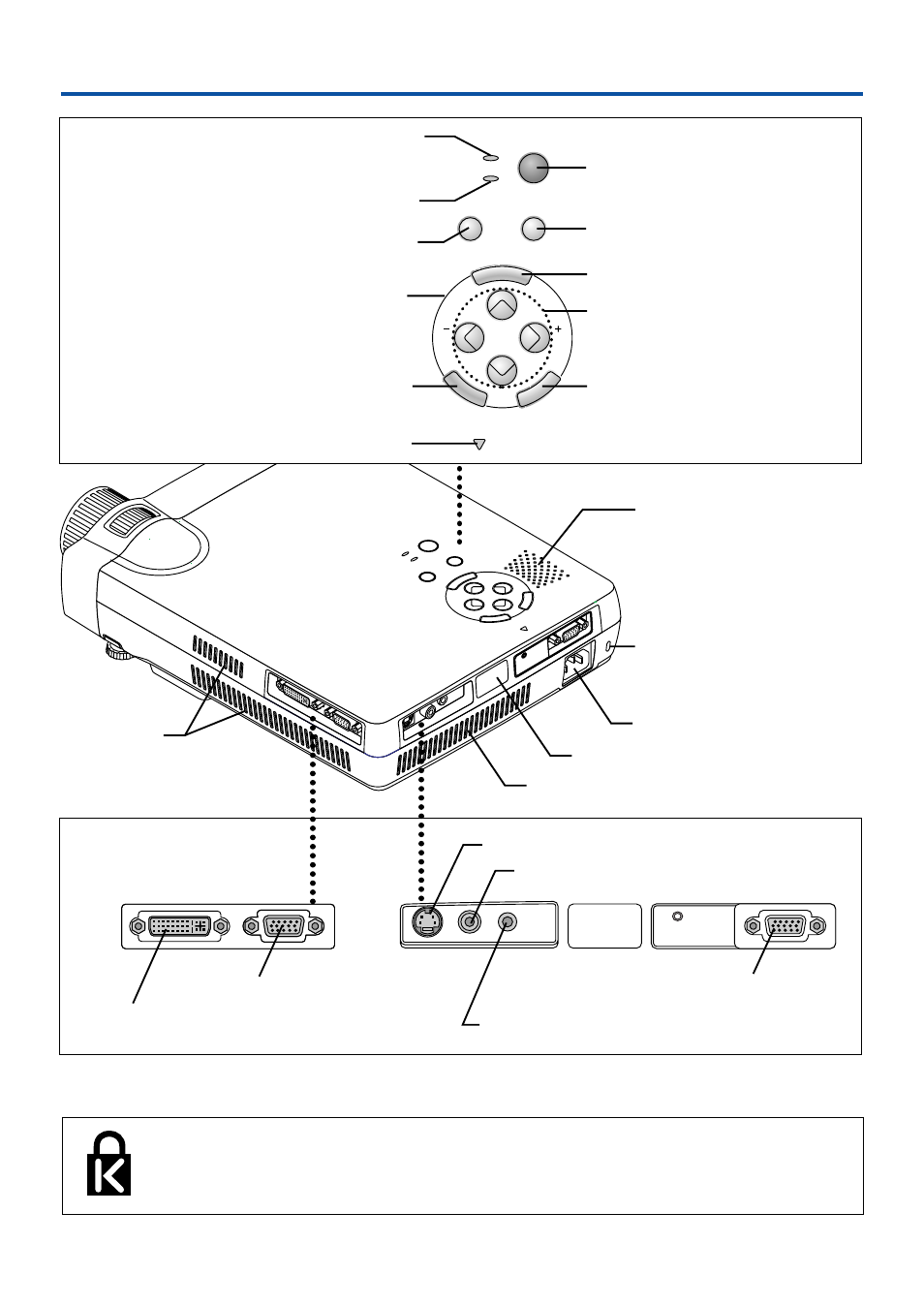

Names of the Main Unit Parts
RGB OUT
AUDIO
VIDEO
S-VIDEO
ACCESS
ENTER
CANCEL
SELECT
+
-
POW
ER
PO
WER
STATUS
AUTO
SOURCE
ME
NU
RGB
DVI
AUDIO
VIDEO
S-VIDEO
RG
B O
UT
RGB
DVI
ENTER
CANCEL
SELECT
POWER
POWER
STATUS
AUTO
SOURCE
MENU
ACCESS
POWER indicator [E-23,59]
STATUS indicator [E-23,59]
AUTO button [E-28]
Buttons used in menu
and toolbar operations
[E-24,34,35]
ENTER button
POWER button [E-23]
SOURCE button [E-28]
MENU button
SELECT
▲▼
ᮤ
ᮣ
buttons
CANCEL button
Built-in Security Slot
This security slot supports the MicroSaver Security System manufactured by
Kensington Microware Inc.
Ventilation slots
Speaker
Built-in security slot
(See description below.)
AC IN connector [E-23]
Remote control sensor [E-12]
Ventilation slots
DVI connector [E-16,17]
RGB connector [E-17,20]
S-VIDEO connector [E-19]
VIDEO connector [E-19]
AUDIO connector [E-21]
RGB OUT connector
[E-22]
ACCESS indicator [E-12]
