The supplied remote control enables you to operate the computer’s mouse functions by connecting the computer to the MOUSE connector of
the unit. It is a great way to control your computer-generated presentations.
How does the remote control operate the computer?
• The cursor key on the remote control operates the computer mouse functions.
• If a computer running Windows is connected, the L-CLICK button on the remote control operates as the computer mouse left click button
and the R-CLICK button as the computer mouse right click button.
• If a Macintosh computer is connected, the L-CLICK and R-CLICK buttons operate in the same way as the computer mouse click button.
• While the menu is displayed on the screen (see page 22, 23), the cursor key, L-CLICK and R-CLICK buttons will operate to control the menu.
Connecting the computer to the MOUSE connector of the unit
Before connecting
• Turn off the computer, then remove the current mouse.
• The unit and computer will be turned on as described in “Using the unit” on page 15. Do not turn on either the computer or the unit until you
read that section.
• Please also refer to the manual of the computer to be connected.

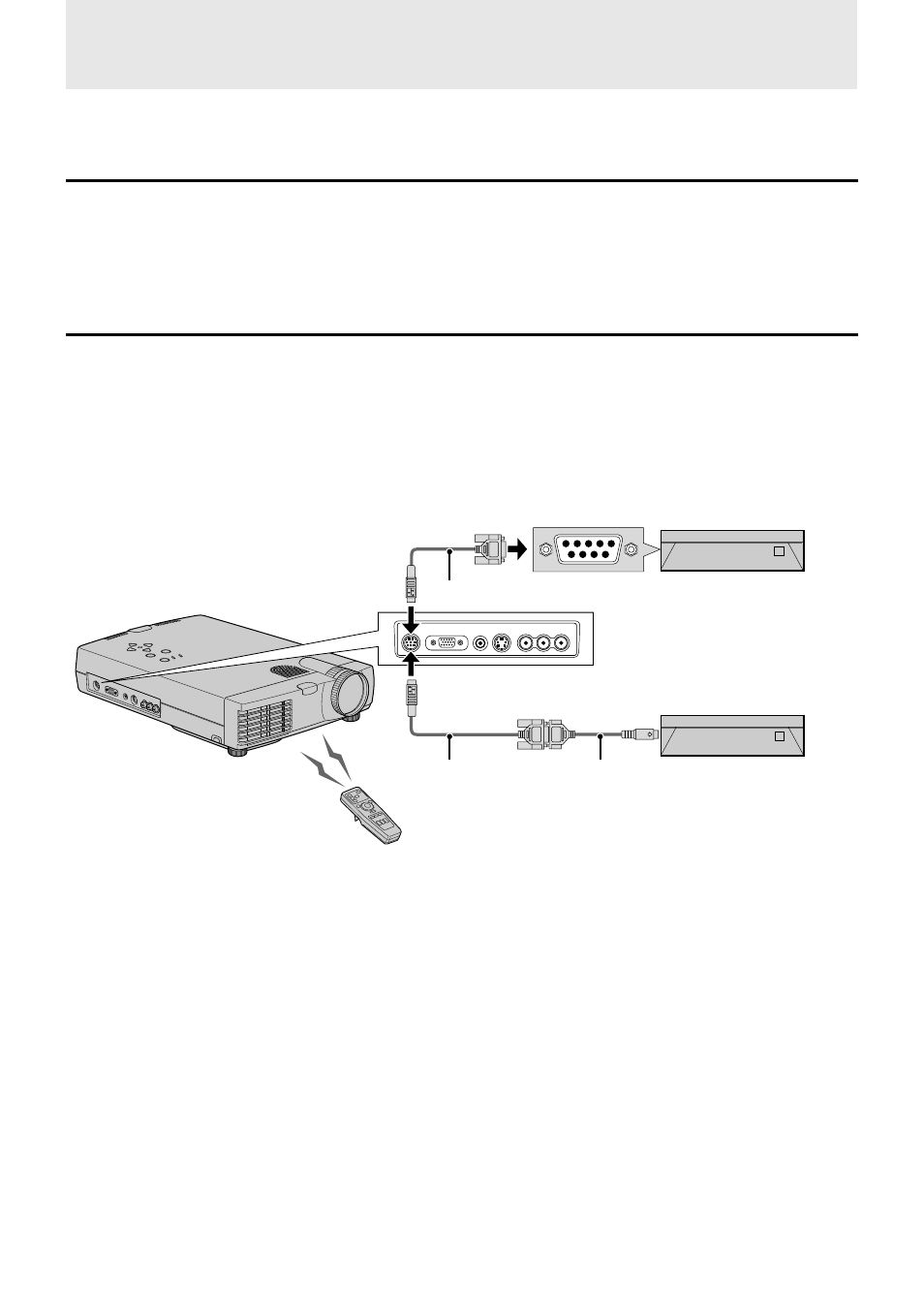

How to connect to the IBM PC/AT
computer
Use the supplied serial mouse cable to connect
the MOUSE connector of the unit and the 9-pin
serial port (COM1/COM2/COM3/COM4) of
the computer.
How to connect to the IBM PS/2 or
Macintosh computer
Use the supplied serial mouse cable and mouse
adapter (for IBM PS/2 or Macintosh).
1 Connect the serial mouse cable and mouse
adapter.
2 Connect the other end of the serial mouse
cable to the MOUSE connector of the unit.
3 Connect the other end of the mouse adapter
to the mouse port of the computer.
U s i n g t h e r e m o t e c o n t r o l a s a c o m p u t e r
m o u s e – W i r e l e s s m o u s e f u n c t i o n
IBM PC/AT
IBM PS/2 or Macintosh
Serial mouse cable
(supplied)
Serial mouse cable (supplied)
Mouse adapter for IBM PS/2 (supplied) or
Mouse adapter for Macintosh (supplied)
9-pin serial port
To the MOUSE connector
To the MOUSE connector
