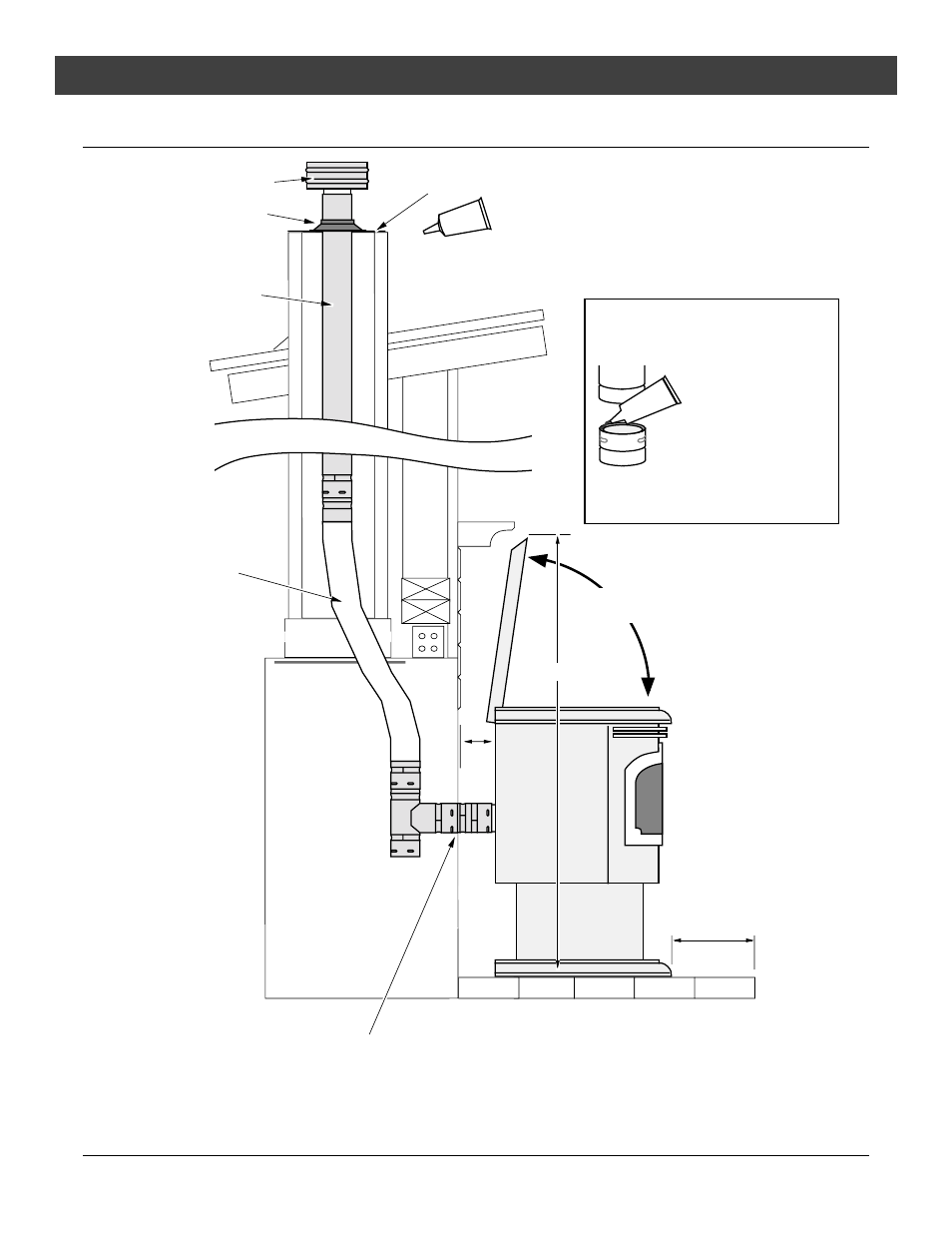

Installation Example: Zero-Clearance (Metal) Fireplace Hearth Stove
“L” Vent Flex
Section
6” Min.
“L” Vent
Storm Collar
Vertical Cap Cover Plate (non-combustible)
Silicone
Seal the cover
plate with silicone.
NOTE: you will probably need a short horizontal section
here to clear the lintel and allow the hopper lid to open.
Allow room for the
hopper lid to open
53-3/8”
3”
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
500
° F. RTV
Silicone
