Lopi Yankee PS - Manual (Page 15)

Installation
(For Qualified Installers Only)
1 5
© Travis Industries
4080728
1 0 0 - 0 1 1 5 6

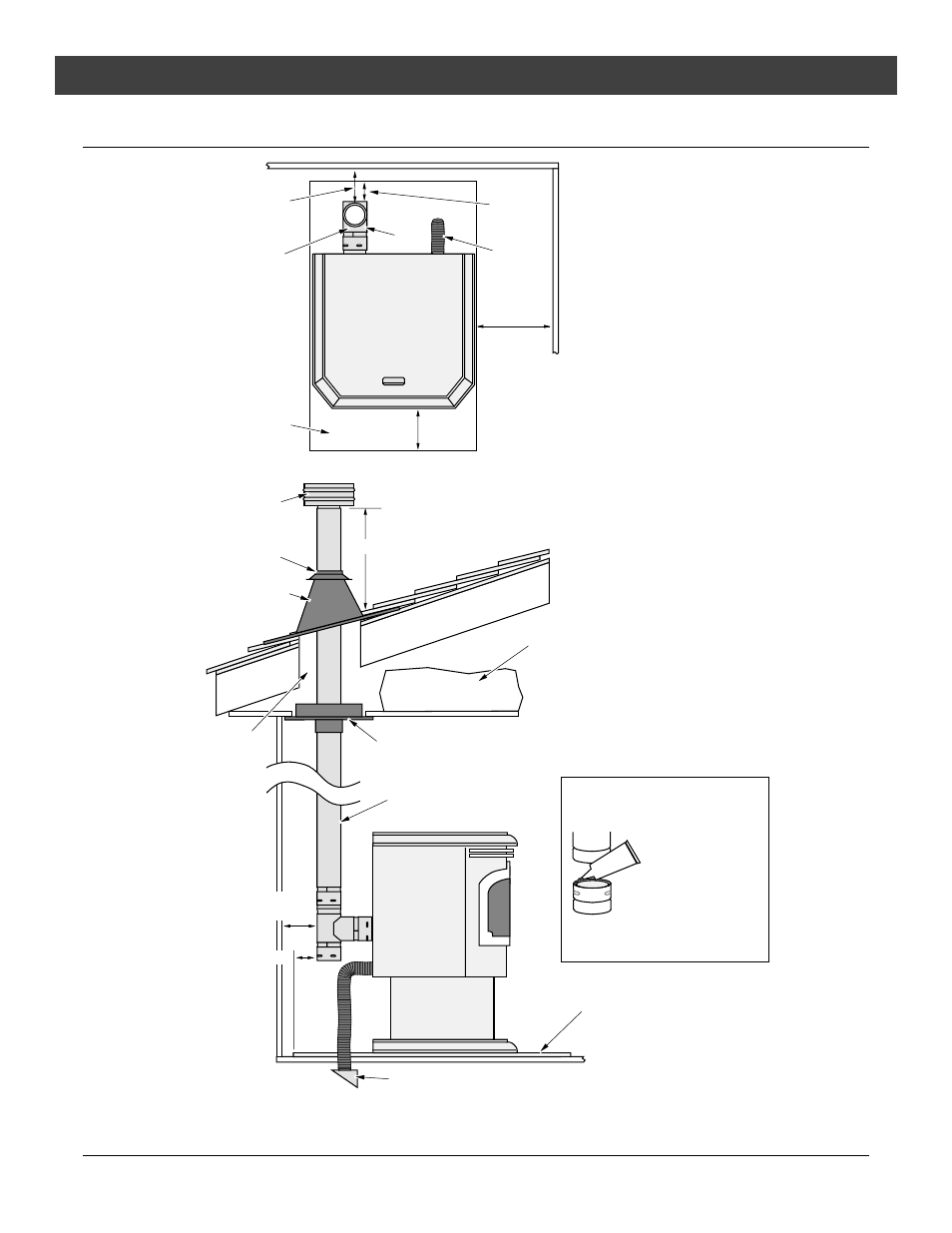

Installation Example: Interior Vertical Installation
Type "L" Vent
6” Minimum
Vent
Clearance*
Floor Protection
2”
Minimum
9” Minimum
“Tee”
Outside
Air
(optional)
Floor Protection
24” Minimum
Insulation
must maintain
clearance.
Outside air may be drawn from
a ventilated crawl space.
2” Min.
Vent
Clearance*
Ceiling Support / Fire Stop Spacer
Roof Flashing
Storm Collar
Vertical Cap
Vent must
maintain
clearance to
combustibles.
“L” Vent
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
500
° F. RTV
Silicone
* Install vent at clearance specified by the vent manufacturer.
