Lopi Yankee PS - Manual (Page 14)

1 4
Installation
(For Qualified Installers Only)
© Travis Industries
4080728
1 0 0 - 0 1 1 5 6

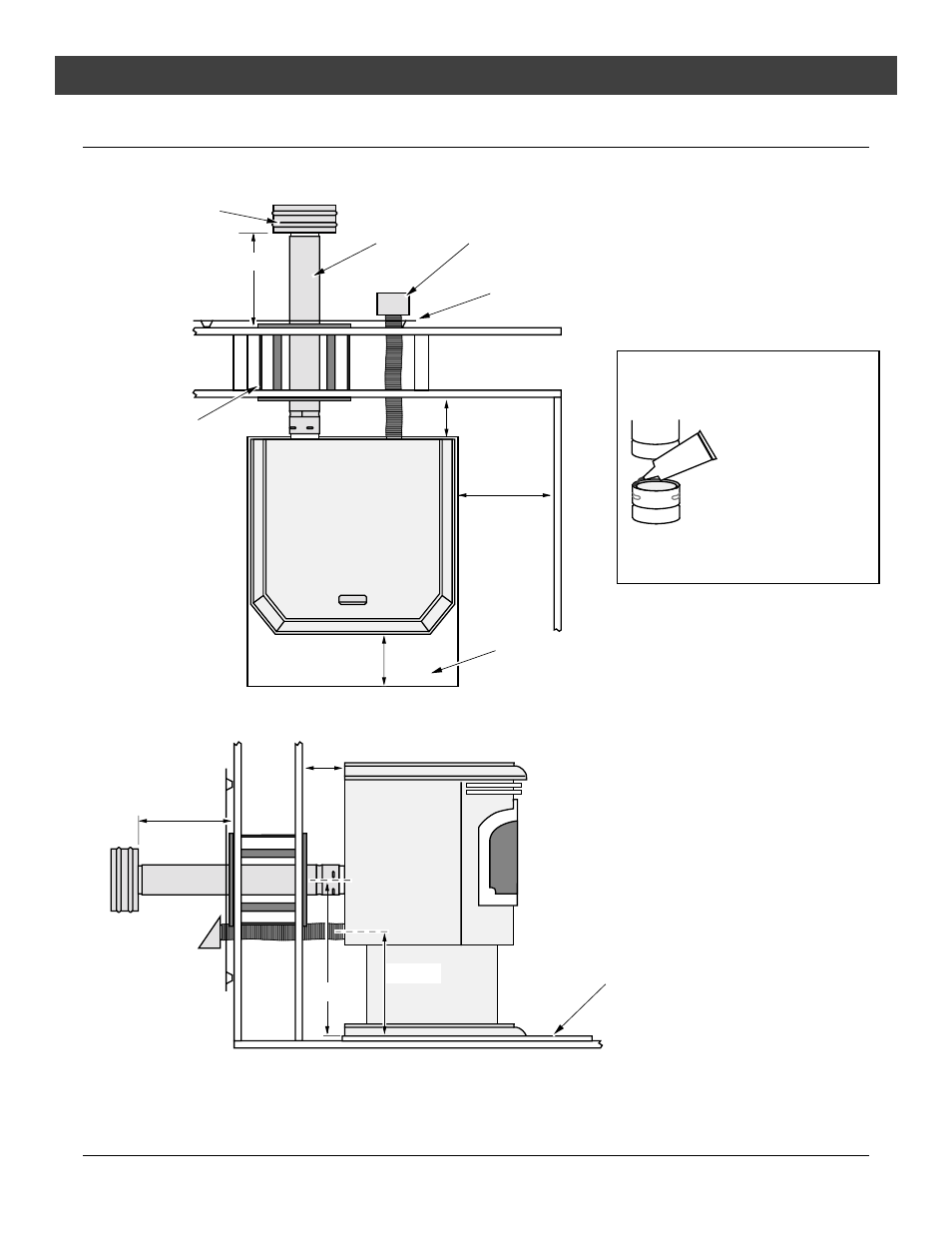

Installation Example: Direct "Through-the-wall" Installation
3” Minimum
9” Minimum
Floor Protection
6” Minimum
House Shield (used to protect exterior wall from soot
discoloration) is HIGHLY RECOMMENDED
12” Minimum
Horizontal Rain Cap
Wall Thimble (note
clearance between
vent and
combustibles)
Outside Air
Type "L"
Vent
12”
Minimum
3” Minimum
16-1/2”
9-1/4” Floor Protection
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
500
° F. RTV
Silicone
