5 static bypass, Figure 7 system control cabinet block diagram, Fuse protection – Liebert 1000kVA User Manual

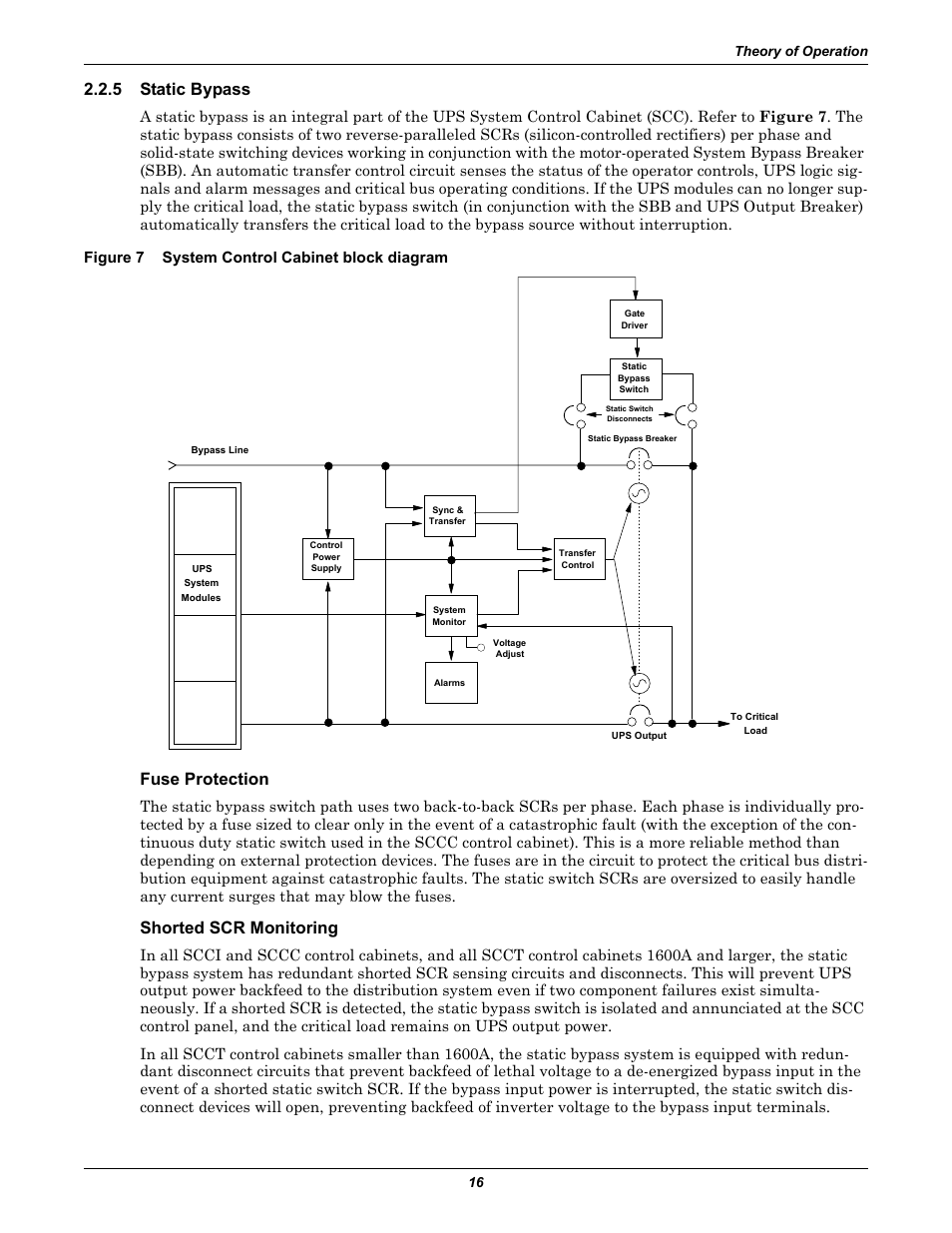

Page 22: Shorted scr monitoring, Static bypass, Figure 7, System control cabinet block diagram
