SES Management
1-2 8946121402

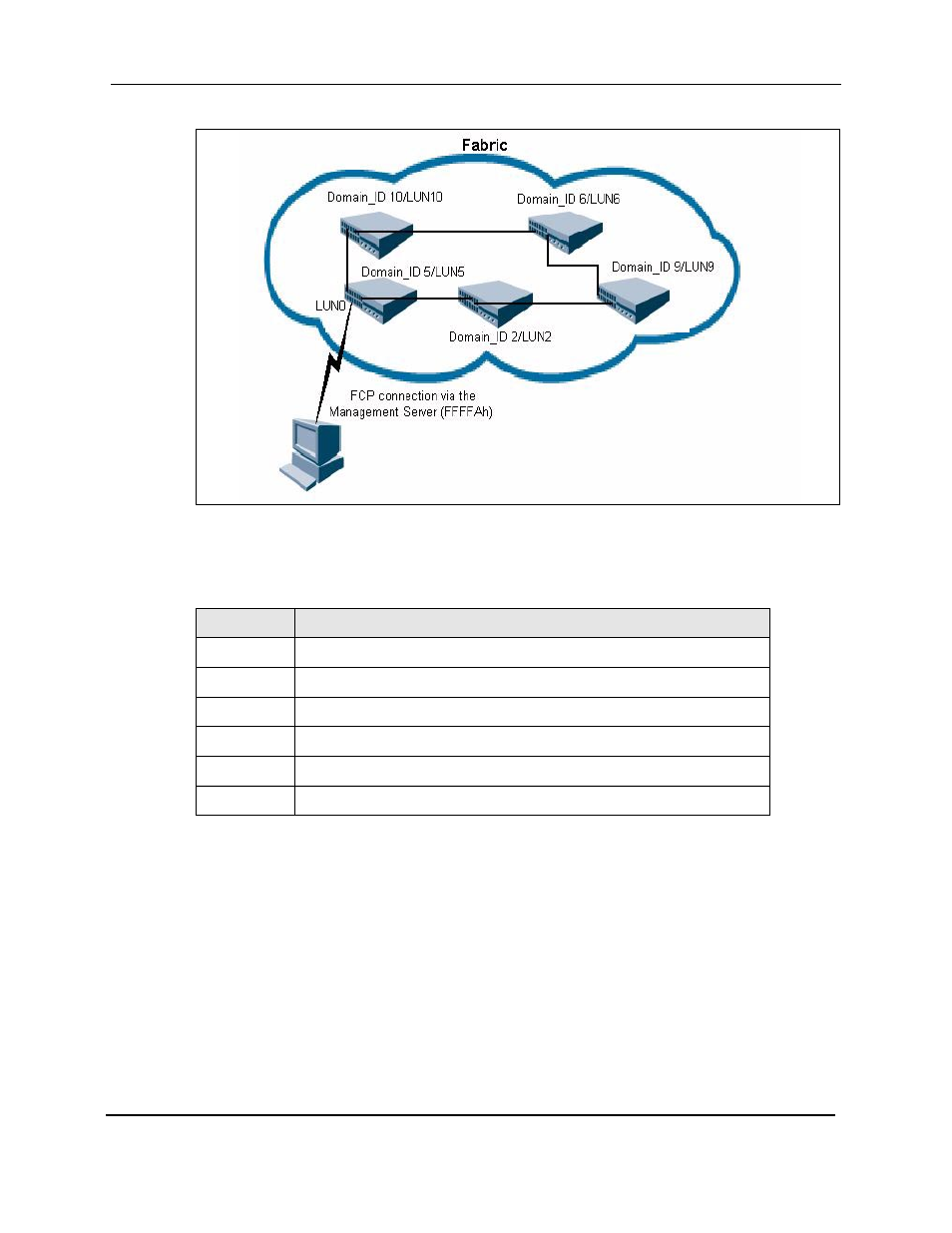

Figure 1-1 SES Overview
LUN addressing within the Fabric can be non-sequential because it is based on the switch’s
Domain_ID . Table 1-1 shows the sample LUN mapping used with Figure 1-1 .
Figure 1-1 shows that the switch in the lower left hand corner is assigned both LUN5 and
LUN0. (LUN5 because the switch’s Domain_ID is 5 and LUN0 because the client is
physically connected to that switch.) LUN values for the first byte, shown in Table 1-1 , are:
• 00000000 00000000 - the bold characters indicate the local switch
• 0X0X0000 00000000 - the bold characters indicate the SCSI LUN address of the other
switches in the Fabric
Table 1-1 Example LUN Mapping
Domain ID Unique LUN Value (in Hex)
5 00000000 00000000 (Note that Domain ID 5 is used for both LUN 0 and 5)
2 01020000 00000000
5 01050000 00000000
6 01060000 00000000
9 01090000 00000000
10 010A0000 00000000
