Features
Front
Top
Back

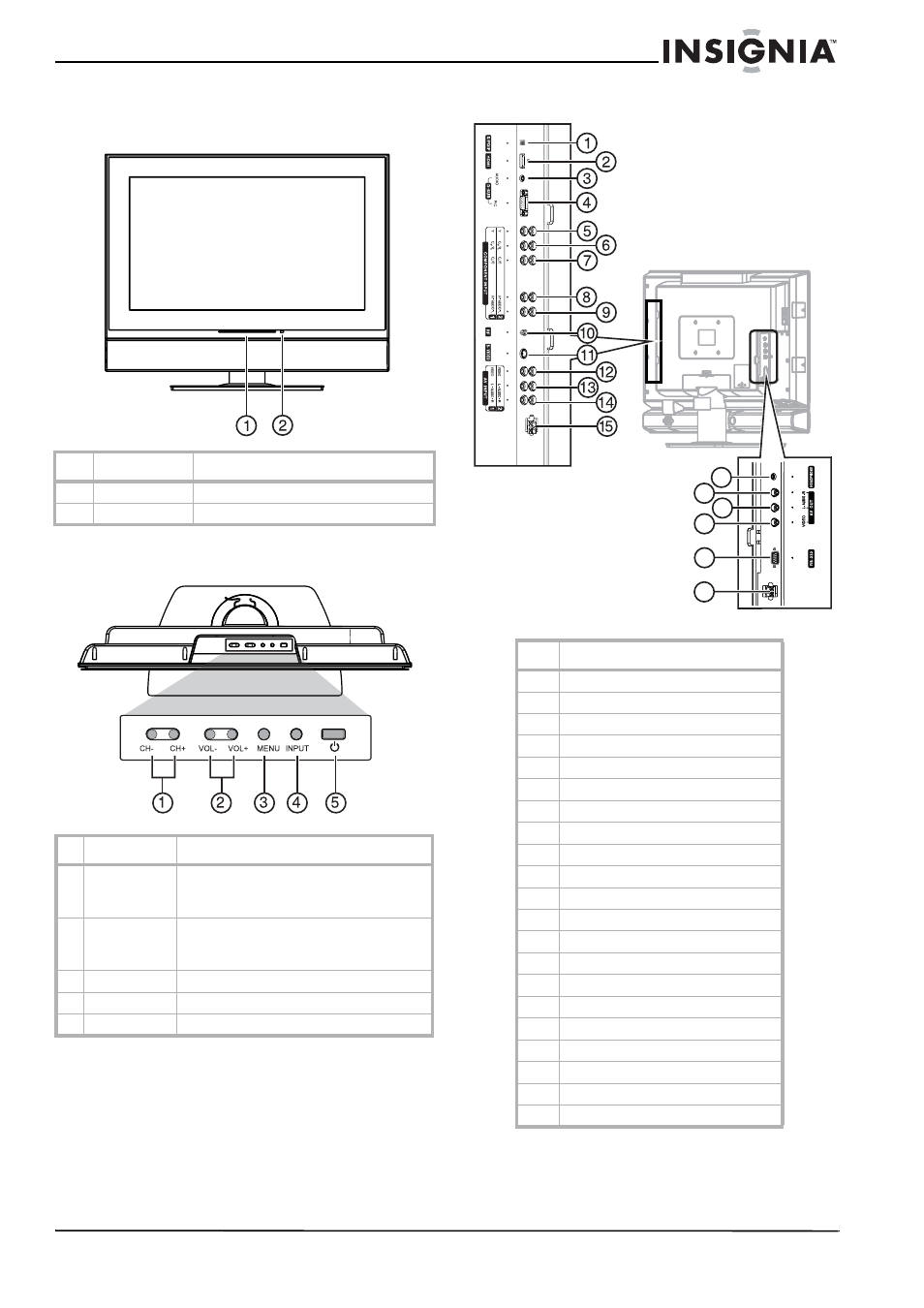

Control Description
1 Power indicator Lights when your TV is turned on.
2 Remote sensor Receives signals from the remote control.
# Control Description
1 CH+/CH– Press to change the channel.
In the on-screen menu, press to select
menus and options.
2 VOL+/VOL– Press to increase or decrease the volume.
In the on-screen menu, press to adjust a
setting or change a value.
3 MENU Press to open the on-screen menu.
4 INPUT Press to select the video input.
5 Power Press to turn your TV on or off.
# Jack
1 S/PDIF digital audio output (optical)
2 HDMI input
3 D-SUB AUDIO input
4 D-SUB PIC (video) input
5 COMPONENT INPUT Y
6 COMPONENT INPUT Cb/Pb
7 COMPONENT INPUT Cr/Pr
8 COMPONENT INPUT R AUDIO
9 COMPONENT INPUT L AUDIO
10 RF (antenna input)
11 S-VIDEO input
12 AV INPUT VIDEO
13 AV INPUT L AUDIO
14 AV INPUT R AUDIO
15 Right speaker terminal
16 Headphone jack
17 AV OUT R AUDIO
18 AV OUT L AUDIO
19 AV OUT VIDEO
20 RS-232 control interface
21 Left speaker terminal
