MDrive34 Motion Control Datasheet
REV121704
5
Ш 0.5512 +0/-0.0005
(Ш 14.0 +0/-0.013)
L MAX
3.73
(94.7)
0.512 ±0.004
(13.0 ±0.1)
0.984 ±0.01
(25.0 ±0.25)
0.08 (2.0)
0.39
(10.0)
4X Ш 0.22 (Ш 5.5)
2.739 ±0.01 SQ.
(69.58 ±0.25 SQ.)
3.40 SQ.
(86.4 SQ.)
Ш 2.874 ±0.002
(Ш 73.0 ±0.05)
12.0" (30.5 cm)
Flying Leads
L
MAX2
1.46 ±0.04
(37.0 ±1.0)
2.07
(52.6)
2.33
(59.2)

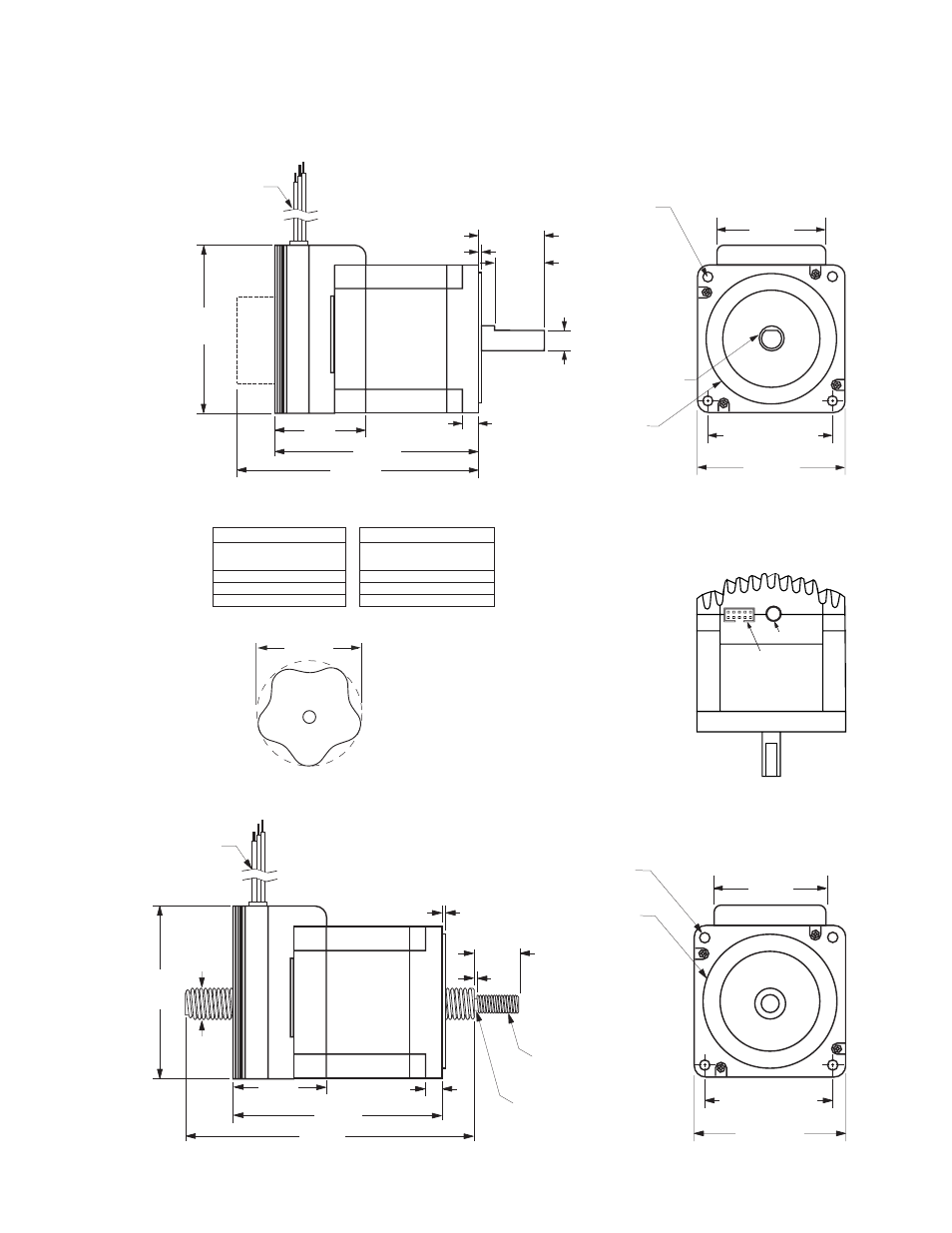

MDRIVE34 MOTION CONTROL – MECHANICAL SPECIFICATIONS
Dimensions in Inches (mm)
Rotary MDrive34: Single Shaft, Control Knob & Encoder Versions
Linear Actuator MDrive34
4X Ш 0.26
(Ш 6.6)
2.730 ±0.008 SQ.
(69.34 ±0.2 SQ.)
3.40 SQ.
(86.4 SQ.)
Ш 2.875 +0/-0.002
(Ш 73.03 +0/-0.05)
7/16-14
UNC-2A THREAD
0.625
(15.88)
4.46
(113.3)
3.73
(94.7)
0.06
(1.5)
0.39
(10.0)
12.0" (30.5 cm)
Flying Leads
6.00
(152.4)
2.33
(59.2)
2.07
(52.6)
0.71
(18.0)
0.1
(2.5)
Ш 0.30
(Ш 7.6)
MDrive Lengths
Inches (mm)
LMAX
LMAX2
SINGLE SHAFT or
ENCODER VERSION
CONTROL KNOB VERSION
Stack Size
3424
3.81 (96.8)
4.97 (126.2)
3431
4.60 (116.8)
5.76 (146.3)
3447
6.17 (156.7)
7.34 (186.4)
L
MAX2
–
Control Knob
Ш 1.90
(Ш 48.3)
P1
P2
Flying Leads
10 Pin Connector
MDrive34 Top View
